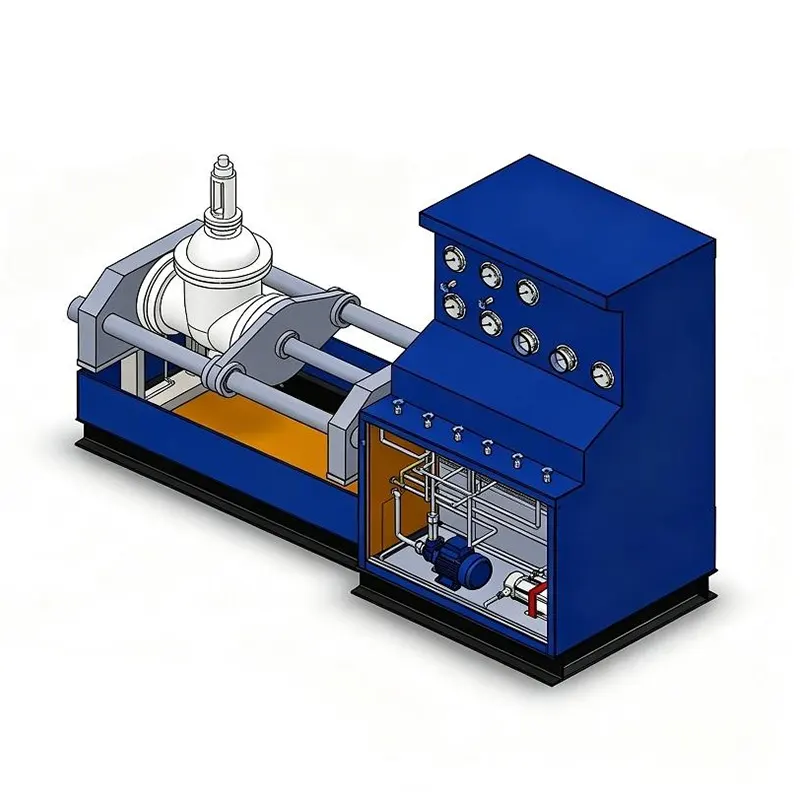

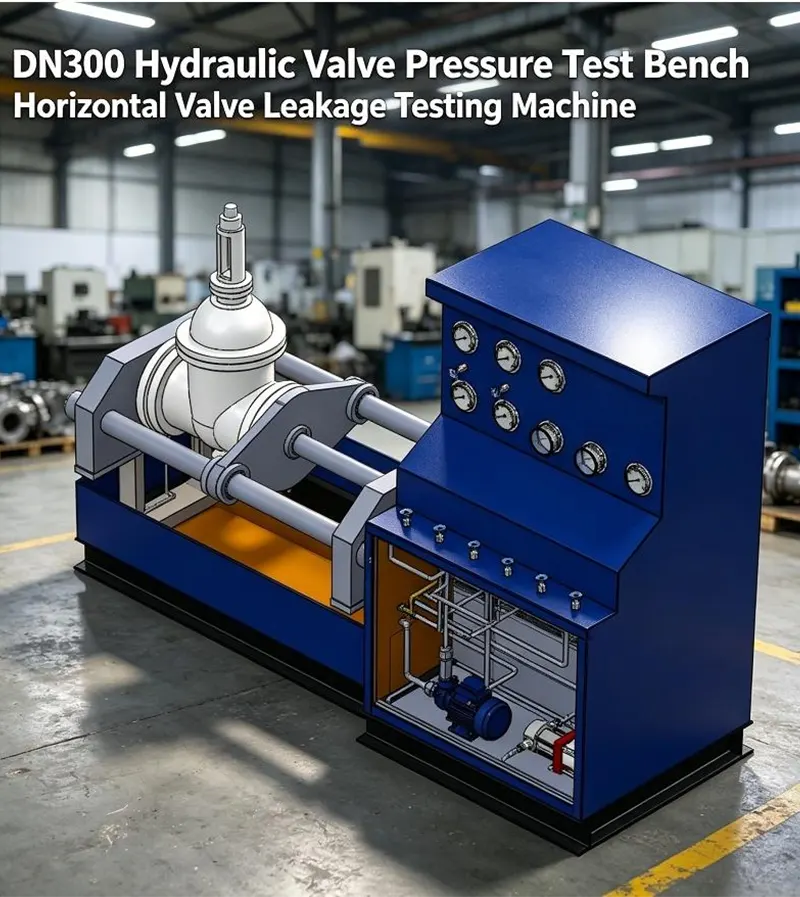

DN300 Compact Horizontal Hydraulic Top Pressure Valve Test Bench

Adopting an adjustable opening span structure, this DN300 Compact Horizontal Hydraulic Top Pressure Valve Test Bench is widely compatible with gate valves, ball valves, butterfly valves, and other mainstream straight-through industrial valves. It can complete shell strength pressure test and seat tightness pressure holding leakage inspection fully in accordance with GB/T13927-2022 and API 598 international valve pressure testing specifications. Equipped with an automatic constant pressure holding system and multi-group precision pressure gauges, it supports water-air dual testing media switching and built-in safety interlock protection devices.

The bench balances flexible adjustability and structural stability perfectly, solving the common pain points of general-purpose test benches such as large floor occupation and poor versatility. The compact integrated layout greatly reduces workshop space occupancy; the overall welded bed frame is solid and shock-resistant, suitable for daily batch quality inspection and maintenance re-inspection work of medium- and small-sized valve factories.

Basic parameters: Max applicable caliber DN300, total weight 2.5 tons, overall dimension 26758901720mm; power and maximum test pressure can be customized on demand. We can provide CE certification, multi-language operation panels, and export voltage adaptation for overseas small and medium valve manufacturers. Contact our technical team to obtain a detailed datasheet and a preferential quotation within 24 working hours.

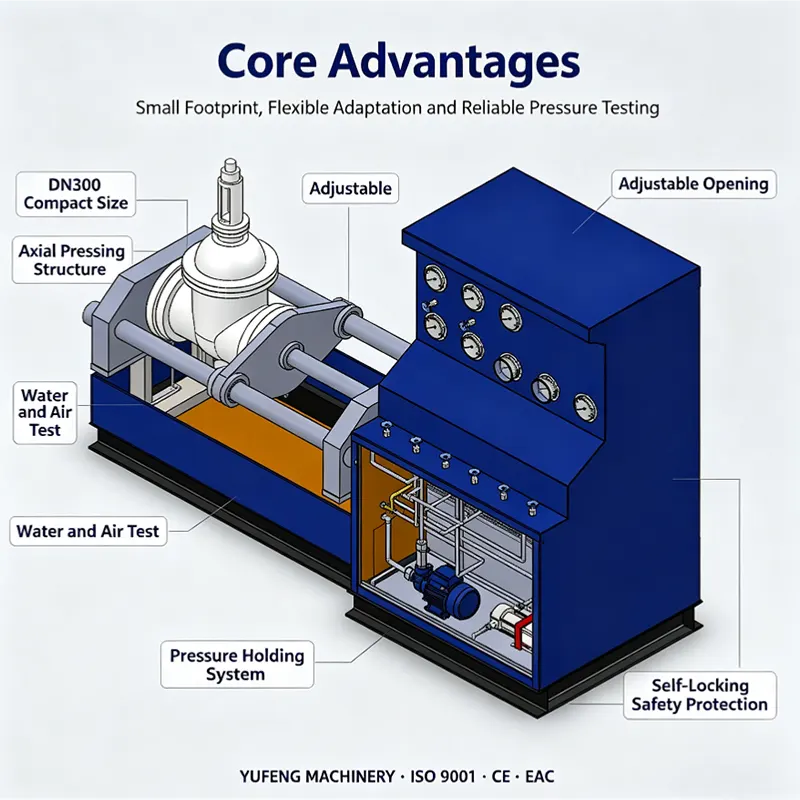

Seven Core Differentiated Advantages

1.Ultra compact Integrated Layout, Small Floor Space The biggest advantage of the Compact Horizontal Hydraulic Top Pressure Valve Test Bench: optimized miniaturized overall structural design, far smaller footprint than conventional horizontal test benches, perfectly suited for small valve workshops with limited plant area.

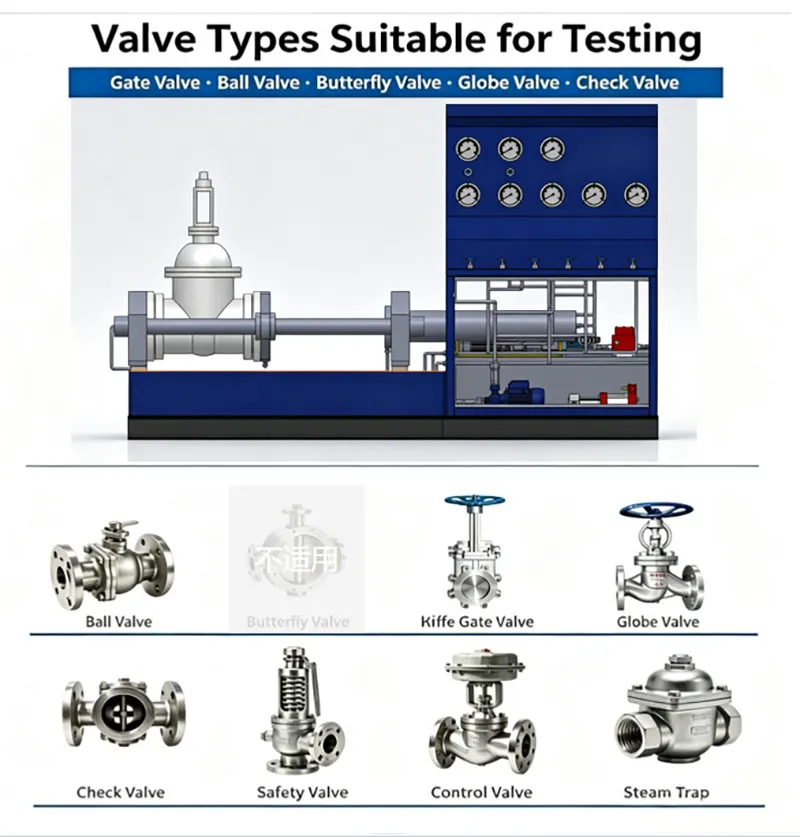

2.Continuously Adjustable Clamping Stroke, Wide Valve Compatibility: The horizontal sliding beam realizes stepless adjustment of the clamping distance, adapts to various length specifications of DN50~DN300 gate valves, ball valves, butterfly valves, stop valves, one machine covers most commonly used small and medium flange valve types.

3.Dual Water & Air Medium Independent Pressure Circulation System Separate water filling pipeline and air pressurization pipeline are arranged independently; water is used for shell strength test, compressed air for tightness leakage detection. PLC constant pressure control system automatically compensates pressure loss during the holding period, pressure fluctuation ≤±1%.

4.Stable Axial Synchronous Hydraulic Jacking Clamping: Double hydraulic cylinders push the pressing plate synchronously to apply even axial force on valve flanges; no unilateral deflection or eccentric stress; clamping force can be adjusted according to the valve wall thickness to avoid flange deformation and sealing surface damage.

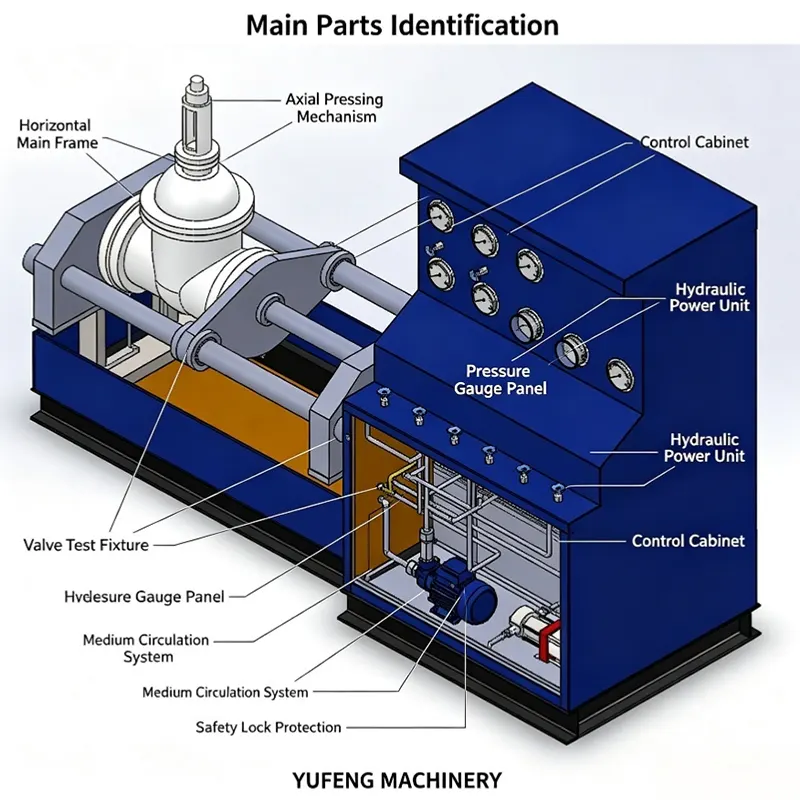

5.Integrated Hydraulic Station Inside Cabinet, Clean & Neat Workshop Hydraulic pump station, pipeline assembly, and valve block are all concealed inside the control cabinet, no exposed messy pipelines outside, reducing oil pollution and noise, and making it easy for daily cleaning and maintenance.

6.Multi-layer Built-in Safety Interlock Protection Mechanism Equipped with hydraulic clamping overpressure relief, test pressure over-limit cut-off, and emergency stop power-off protection, three-fold safety interlock. Once abnormal conditions occur, all power output will be cut off instantly, complying with EU CE industrial machinery safety standards.

7.Reserved Digital Intelligent Upgrade Expansion Port The main electrical cabinet reserves a communication expansion interface; customers can later retrofit a touch screen automatic testing program, pressure curve recording, electronic inspection report export, and MES system docking functions to realize digital whole-process traceability of inspection data.

Complete Technical Parameter Table

Seven Applicable Application Scenarios

1.Small & Medium Valve Manufacturing Plants: Daily offline batch delivery inspection of DN50–DN300 small flange valves.

2.Municipal Water Supply & Drainage Supporting Factories: Pressure inspection of small pipeline butterfly valves and gate valves.

3.Mini Petrochemical Equipment Manufacturers: Tightness recheck of small process pipeline valves.

4.Central Heating & Community Water Pump Stations: Periodic maintenance inspection of pipeline auxiliary valves.

5.Local Valve Repair Service Shops: Re-inspection performance for refurbished recycled small valves.

6.Overseas Small Valve Assembly Workshops: Compact, low-cost valve testing equipment with complete CE export documents.

7.Valve Design R&D Laboratories: Small-sized valve sealing performance contrast test under different pressure grades.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional small valve testing engineers carry out one-on-one technical communication, confirm applicable caliber, maximum test pressure, and inspection requirements; provide equipment layout drawings and free sample testing service, issue a targeted testing scheme and formal quotation within 24 hours.

In-sales Production & Export Shipment Service

Whole production progress is tracked by real-time video; full-cycle pressure running test is finished before delivery with original test records reserved. The export version adopts thick plywood shockproof & moisture-proof packaging; hydraulic schematic, electrical drawing, multilingual operation manual, and customs clearance certification documents are delivered together.

After-sales Global Quality Assurance Service

Hydraulic cylinders, pressure gauges, and PLC controllers enjoy a 24-month global warranty; free replacement of non-artificial damaged spare parts within the warranty period. We provide remote online parameter debugging, full operation video tutorials, coordinate overseas local agents for on-site maintenance; lifelong supply of hydraulic spare parts and free long-term valve pressure testing technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can this bench test gate valves, ball valves, and butterfly valves at the same time?

A1: The clamping span is continuously adjustable, compatible with all mainstream straight-through flange valves within DN300 caliber; one machine meets multiple types of valve testing demands.

Q2: Is the equipment suitable for small workshops with limited space?

A2: Compact miniaturized design occupies very little floor area, low overall weight, and convenient handling and placement, specially customized for small valve factories.

Q3: Can the touch screen automatic report generation function be upgraded later?

A3: The control system reserves a digital expansion interface, and all intelligent modules can be retrofitted after purchase.

Q4: Can CE certification be done for overseas export trade?

A4: We can complete full CE mechanical safety transformation, configure a multi-language panel and 415V export voltage, provide complete CE documents for customs clearance and project acceptance.

Q5: What is the standard delivery cycle?

A5: Standard configuration delivery cycle: 25 working days; customized high-pressure version delivery cycle: 30 working days.

Purchase Guidance

Please send detailed information, including the applicable valve caliber range, maximum test pressure, and export demands, to our engineering team. We will formulate a complete compact small valve pressure testing solution and preferential bulk quotation within 24 hours, supporting annual framework cooperation orders for small valve manufacturers.
