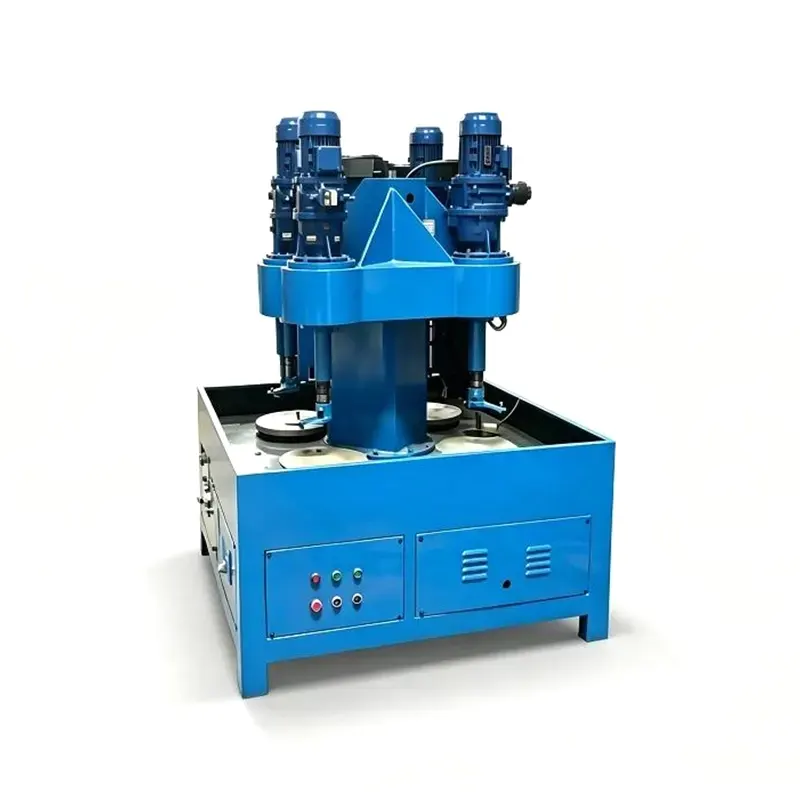

Four Station Vertical Valve Lapping Machine

This Four Station Vertical Valve Lapping Machine integrates mechanical transmission, electrical control and circulating grinding fluid system into an all-in-one vertical unit, featuring simple operation, compact structural layout, complete functional modules, steady running performance and high automation level. It is specially designed for finish lapping and mirror polishing of hard sealing surfaces of ball valves, gate valves and globe valves, removing machining tool marks, improving flatness and sealing matching precision of valve sealing faces. Equipped with four independent vertical lapping power heads with adjustable rotation speed and down pressure, the machine supports four workpieces to be processed at the same time, greatly boosting daily lapping output for mass valve production workshops.

The built-in closed grinding fluid circulation tank automatically filters abrasive impurities, reducing manual cleaning frequency and lowering abrasive material consumption cost. Central button control panel integrates start, stop, speed regulation and timing functions, with overload stall protection to prevent workpiece or grinding disc damage caused by abnormal pressure. The whole machine adopts integrated bottom water tank design to avoid workshop liquid splashing, and the vertical central support frame ensures each lapping head runs without shaking under long-term continuous load.

The equipment matches cast iron, stainless steel, alloy hard seal valve workpieces widely, covering DN15~DN300 standard valve sealing surface processing. It supports manual timing control, with reserved PLC automatic timing upgrade interface; we can provide CE safety transformation and multi-language control panel for overseas valve factories and energy EPC production lines. If you need high-efficiency multi-station vertical hard seal valve lapping equipment for batch production, contact our technical team to obtain full technical data sheet and formal long-term framework quotation within 24 working hours.

Seven Core Differentiated Product Advantages

1.Four Independent Synchronous Lapping Workstations The core competitive highlight of Four Station Vertical Valve Lapping Machine (Model YFJX-LM300): four separate power heads operate simultaneously, one operator can complete four valve sealing surface lapping procedures at once, batch processing efficiency is 3~4 times higher than single-station lapping machines, perfectly fit large-scale valve factory mass production demands.

2.Adjustable Speed & Constant Down-pressure Lapping Power Heads Each vertical lapping head is equipped with independent speed reducer and pressure adjustment cylinder, stepless rotation speed regulation, flexible down-pressure control to adapt rough grinding, fine grinding and mirror polishing three-stage lapping processes, avoid over-pressure scratch on hard alloy sealing surfaces.

3.Closed-loop Self-filtering Grinding Fluid Circulation System Integrated bottom circulating water tank with built-in impurity filter screen, grind fluid cycles automatically during processing, isolate metal scraps and abrasive residues, extend grinding fluid service cycle, reduce workshop pollution and daily cleaning labor cost.

4.Vertical Central Reinforced Anti-vibration Frame Integral thick steel plate welded vertical central support structure, evenly share pressure of four lapping heads, eliminate frame shake during long-time continuous lapping, guarantee consistent flatness and roughness of every workpiece sealing surface, another core structural advantage of Four Station Vertical Valve Lapping Machine (Model YFJX-LM300).

5.Full-process Overload & Stall Safety Interlock Protection Built-in motor overload stall protection circuit, automatically cut power supply when grinding disc stuck or workpiece overloaded, effectively prevent damage to valve hard seal surfaces, grinding disc and transmission motor, comply with EU CE industrial mechanical safety standards.

6.Wide Compatibility for Multi-spec Hard Seal Valves Customizable fixture bases to match DN15-DN300 ball valves, gate valves, stop valves and check valves with metal hard sealing faces, one machine covers most conventional industrial valve specifications, reduce multi-equipment procurement investment for valve manufacturers.

7.Modular Intelligent Digital Upgrade Interface The central electrical control cabinet reserves PLC communication expansion port, customers can later retrofit touch screen automatic timing lapping, lapping time memory and batch parameter storage function, realize standardized production data record and docking with factory MES intelligent management system.

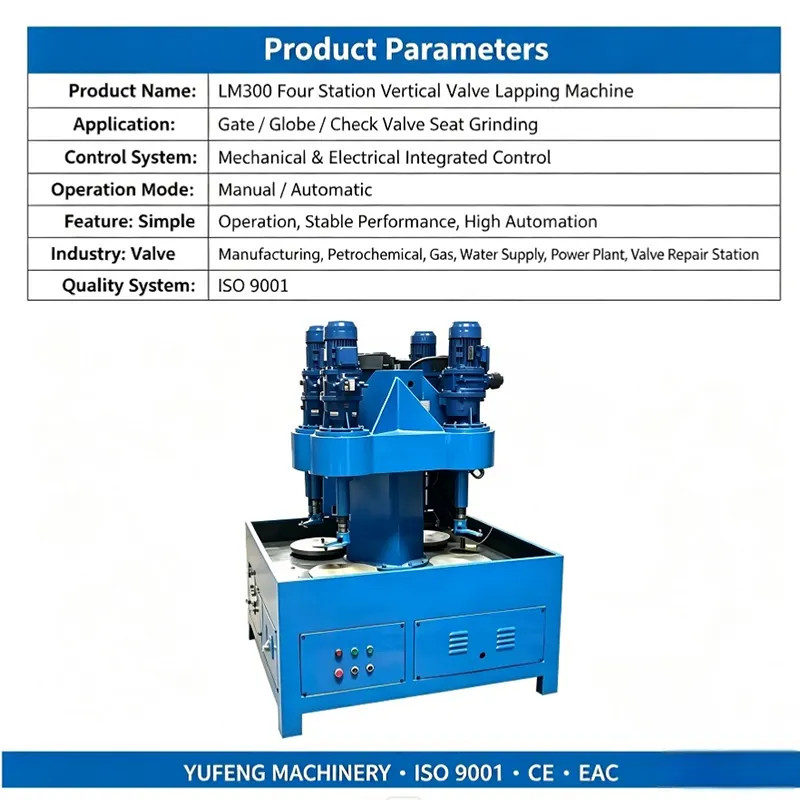

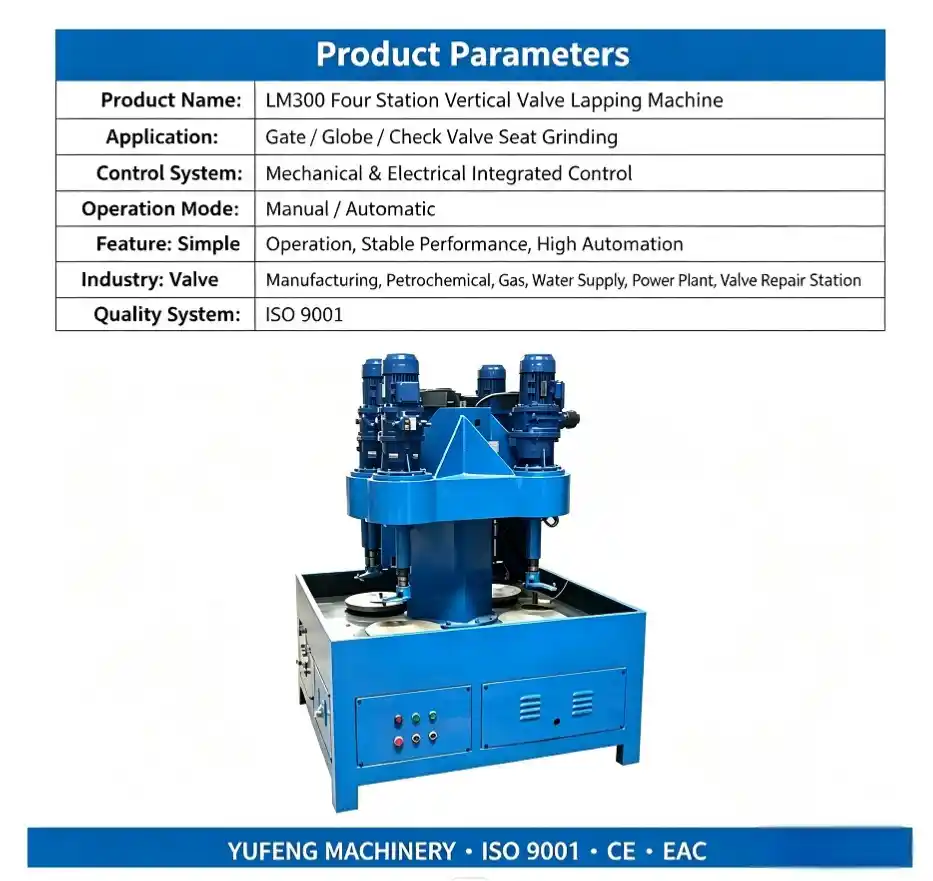

Complete Technical Parameter Table

Seven Target Matching Application Scenarios

1.Large & Medium Mass-production Valve Factories: Batch rough grinding, fine grinding and mirror polishing of metal hard sealing surfaces of DN15-DN300 ball valves, gate valves before finished product assembly.

2.Petrochemical & Natural Gas Pipeline Equipment Manufacturers: Precision lapping for high-pressure hard seal cut-off valves used in long-distance energy transmission pipelines, guarantee zero-leakage sealing performance.

3.Thermal Power & Cogeneration Equipment Supporting Workshops: Regular re-lapping repair for power station high-temperature hard seal auxiliary valves, restore sealing surface flatness.

4.Municipal Water Supply & Drainage Valve Processing Plants: Medium-pressure alloy hard seal valve sealing surface finish processing for urban pipeline supporting projects.

5.Independent Valve Maintenance & Repair Service Stations: On-site refurbishment lapping for waste hard seal valves recovered from chemical and pipeline projects, realize valve secondary reuse.

6.Overseas Large Valve Assembly EPC Workshops: High-efficiency four-station compact lapping equipment, matching multi-language operation panel and full CE export certification documents.

7.Valve R&D & Material Performance Lab: Process parameter verification for new alloy hard sealing materials, contrast lapping test of different grinding media and grinding discs.

Global Pre-sale, In-sale & After-sales Integrated Service System

Pre-sales Technical Customization Support

Professional valve sealing surface processing engineers conduct one-on-one technical communication, confirm valve nominal diameter, sealing surface material, required lapping precision and daily processing capacity, provide fixture customization drawing and free sample lapping test verification service, issue targeted cost-effective complete processing solution and formal quotation within 24 hours.

In-sales Production & Export Shipment Service

Whole-process real-time video tracking of production progress, full cycle running test before factory delivery with original test record report retained; export version adopts thickened plywood shockproof and moisture-proof reinforced packaging, complete electrical wiring diagram, multilingual operation manual and full set of customs clearance certification documents delivered together with machine.

After-sales Global Technical Quality Guarantee

Four-station speed reducers, lapping head drive motors, control electrical core components enjoy 24-month global warranty, free supply of non-human damage replacement parts within warranty period; provide remote online PLC parameter debugging, complete lapping operation video tutorial, coordinate overseas local agents to provide on-site maintenance service; lifelong supply of general mechanical and electrical spare parts, free long-term valve sealing surface lapping process technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can all four stations run lapping procedures independently with different speed and pressure parameters?

A1: Yes, each vertical lapping head is equipped with independent speed and pressure adjustment mechanism, can set separate processing parameters for different valve workpieces at the same time.

Q2: Is the circulating grind fluid system easy to clean and maintain?

A2: The bottom tank is designed with pull-out filter screen, metal scraps and abrasive residues can be taken out and cleaned quickly, daily maintenance operation is simple and time-saving.

Q3: Can automatic timing and batch memory function be upgraded after equipment purchase?

A3: The control system reserves data expansion interface at factory, customers can retrofit touch screen PLC automatic timing lapping and parameter storage function at any time in later use.

Q4: Can the machine carry out full CE safety standard transformation for overseas export?

A4: We can complete all CE industrial machinery safety transformation according to overseas market requirements, configure multi-language touch screen panel and 415V export voltage, provide complete CE certification document set for customs clearance and overseas project acceptance audit.

Q5: What is the standard production delivery cycle?

A5: Standard Four Station Vertical Valve Lapping Machine (Model YFJX-LM300) delivery cycle is 30 working days; customized special fixture and digital upgraded model delivery cycle is 35~40 working days.

Purchase Guidance

Please send detailed information including valve nominal diameter range, sealing surface material, required lapping precision, daily processing capacity, export voltage and certification demand to our engineering team mailbox. Our technical team will generate complete integrated four-station hard seal valve lapping processing solution and long-term bulk procurement preferential quotation within 24 working hours, support annual framework cooperation orders for large valve factories and global energy pipeline EPC supporting project orders.
