DN600 Intelligent Horizontal Top Pressure Testing Station for Heavy Duty Flange Valves

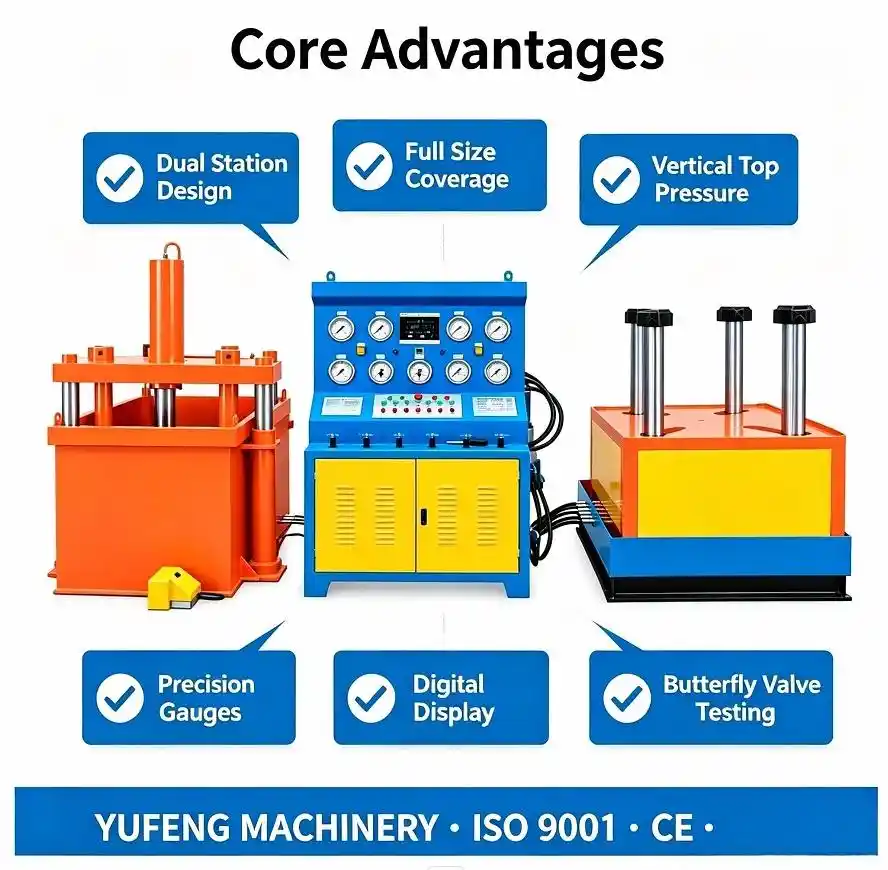

1. Seven Core Differentiated Advantages

1.1. Vertical Top Press + Submerged Testing Integrated DesignThe Vertical Top Press Valve Test Bench with Submerged Testing Function integrates vertical pressing, hydrostatic testing and leak detection functions, suitable for valve factories that need both strength test and visual leak inspection.

1.2. Stable Hydraulic Axial Clamping, Reliable Pressure HoldingAdopts vertical hydraulic top pressing structure, with large pressing stroke and stable clamping force. It can maintain good sealing performance during long-time pressure holding and reduce pressure drop caused by clamping deviation.

1.3. Submerged Bubble Leak Detection, Intuitive and AccurateThe submerged test tank provides visual leakage observation. Minor leakage can be judged directly through bubbles, which improves the accuracy of leak point detection and facilitates targeted repair.

1.4. Multiple Precision Pressure Gauges, Clear Pressure DisplayEquipped with multiple dial pressure gauges and digital display area, the equipment can intuitively show test pressure, pressure holding status and pressure change trend, convenient for operators to record and judge.

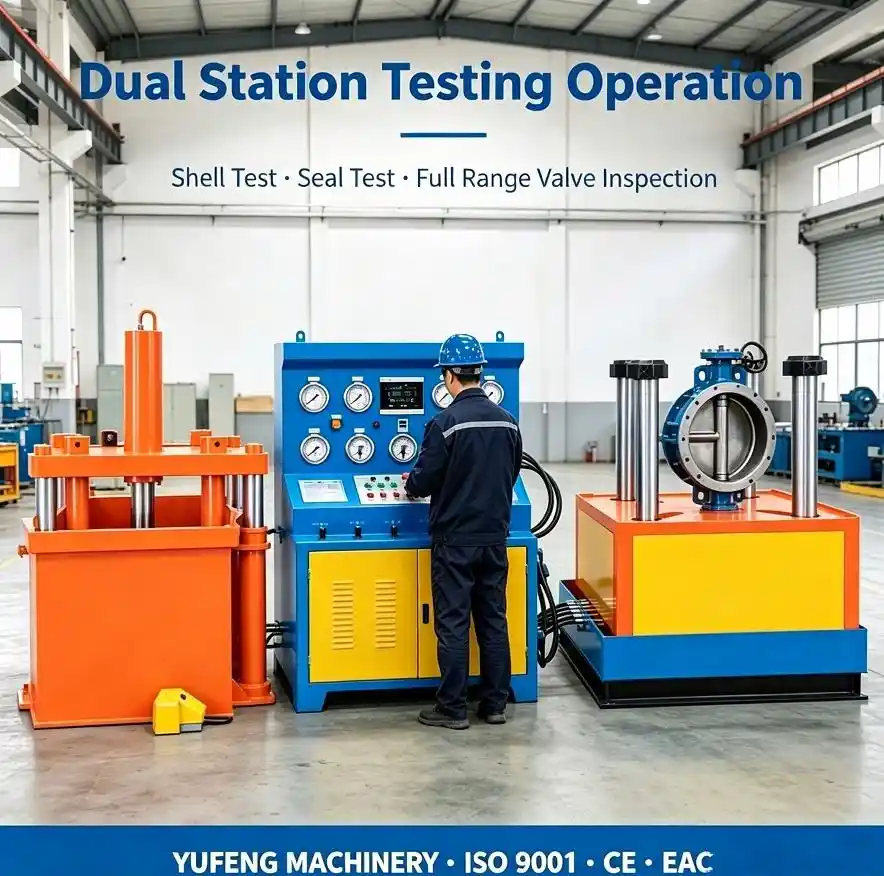

1.5. Suitable for Batch Valve Inspection and MaintenanceThe combined testing method is suitable for industrial valve factory inspection, maintenance and re-testing. It supports both pressure strength test and sealing leak detection, improving production flexibility.

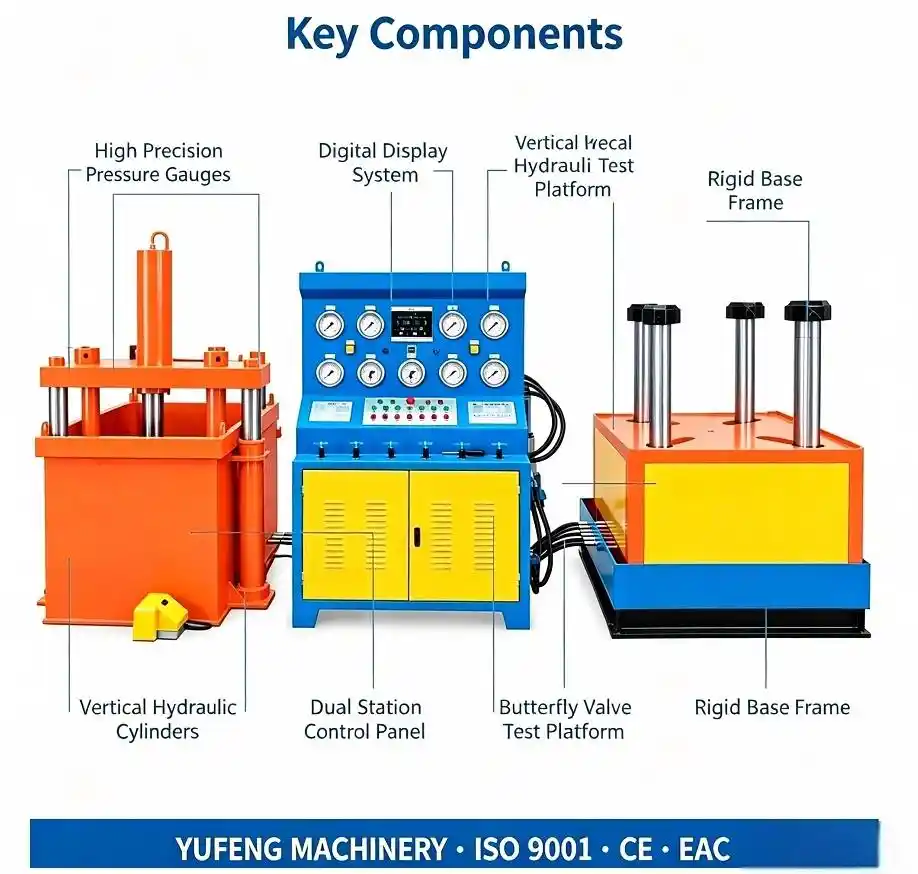

1.6. Centralized Hydraulic Control, Stable System OperationThe independent hydraulic station and centralized control panel ensure stable pressure supply, convenient parameter adjustment and intuitive operation, reducing the failure rate caused by scattered pipelines.

1.7. Compact Structure, Convenient for Workshop LayoutThe equipment adopts a compact combined layout, with clear division of functional areas, convenient valve loading/unloading, pressure testing and leak detection operations, suitable for small and medium-sized valve workshops.
