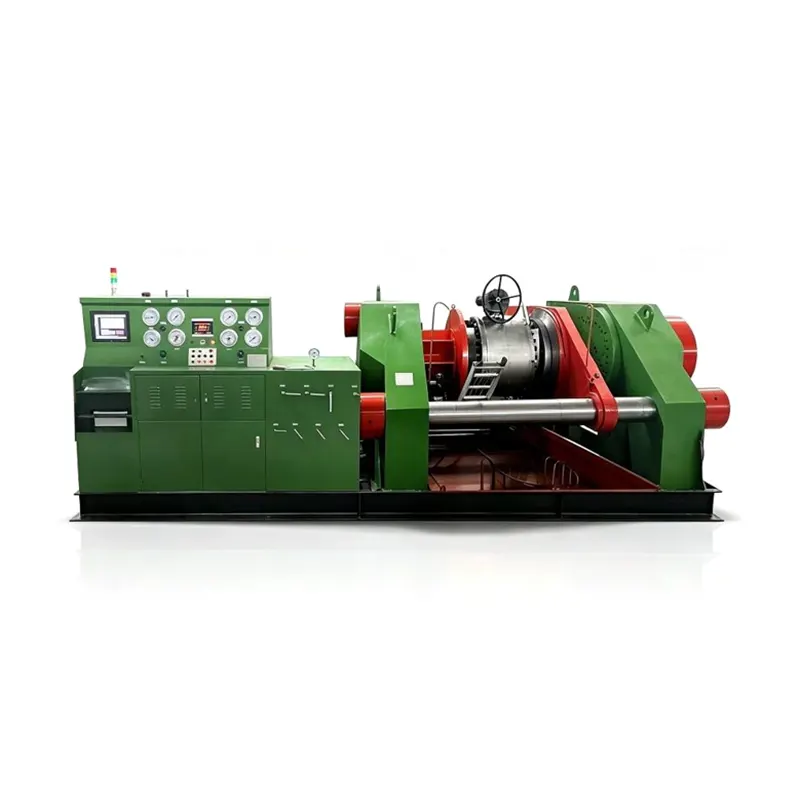

DN1200 Horizontal Hydraulic Top Press Valve Test Bench

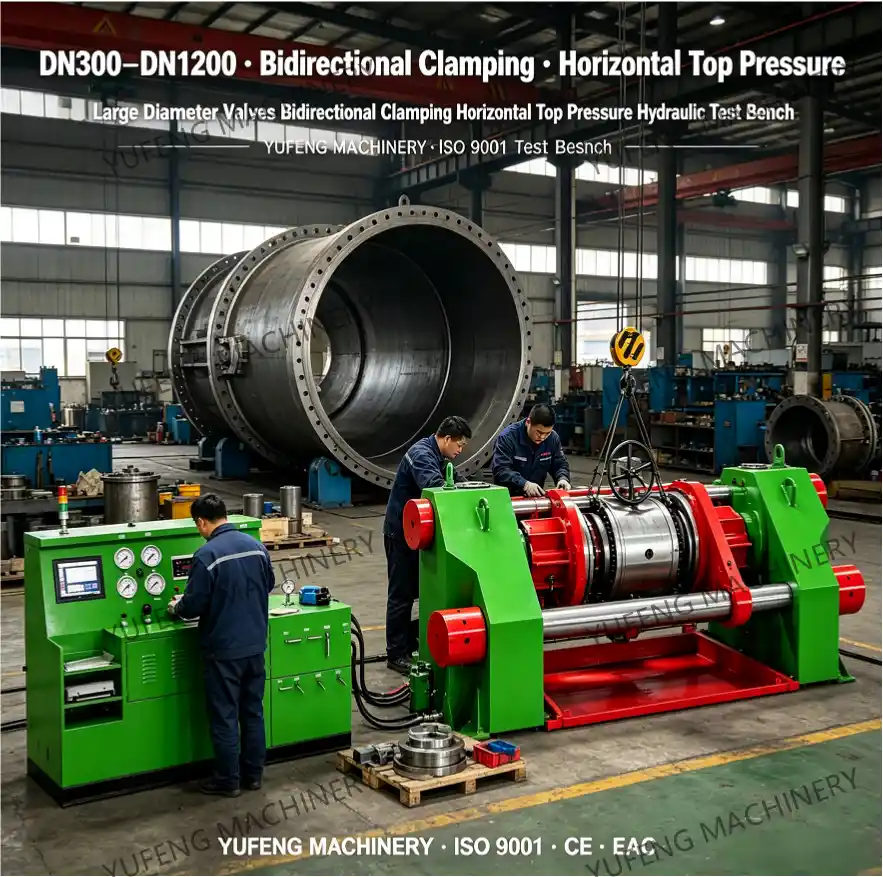

This DN1200 Horizontal Hydraulic Top Press Valve Test Bench integrates hydraulic clamping mechanism, mechanical positioning frame, electrical automatic control system and test medium circulation storage system into one integrated horizontal unit, featuring reasonable overall structure, complete functional modules, stable long-running performance and high automatic operation level. It is applicable to comprehensive performance tests including high, medium and low pressure shell strength and bidirectional seat tightness of flanged straight-through valves with nominal diameter DN300~DN1200.

Adopting large-tonnage double-end hydraulic axial top pressing clamping structure, the equipment provides stable constant clamping force for extra heavy large-bore valves; the horizontal layout avoids the safety risk of vertical hoisting oversized workpieces, and the adjustable horizontal guide rail stroke can match valves with different body lengths. The independent multi-channel pressure control system separately controls shell water pressure test and air tightness test pressure, with automatic constant pressure compensation function to ensure test pressure stays stable during long holding periods.

The independent digital control cabinet is equipped with multi-group high-precision shock-resistant pressure gauges and touch screen data recording module, which can store test pressure curve and export electronic inspection reports. The thickened integral welded base frame can bear long-term heavy-load impact without deformation, matching mass inspection demands of large valve manufacturing factories, petrochemical pipeline equipment plants and power station maintenance workshops. We can provide complete CE safety transformation, multi-language operation panel and 415V export voltage modification for overseas large-scale valve EPC production bases. If you need high-load large-bore horizontal axial top pressure valve testing equipment for mass delivery inspection, contact our technical team to obtain full technical data sheet and long-term framework quotation within 24 working hours.

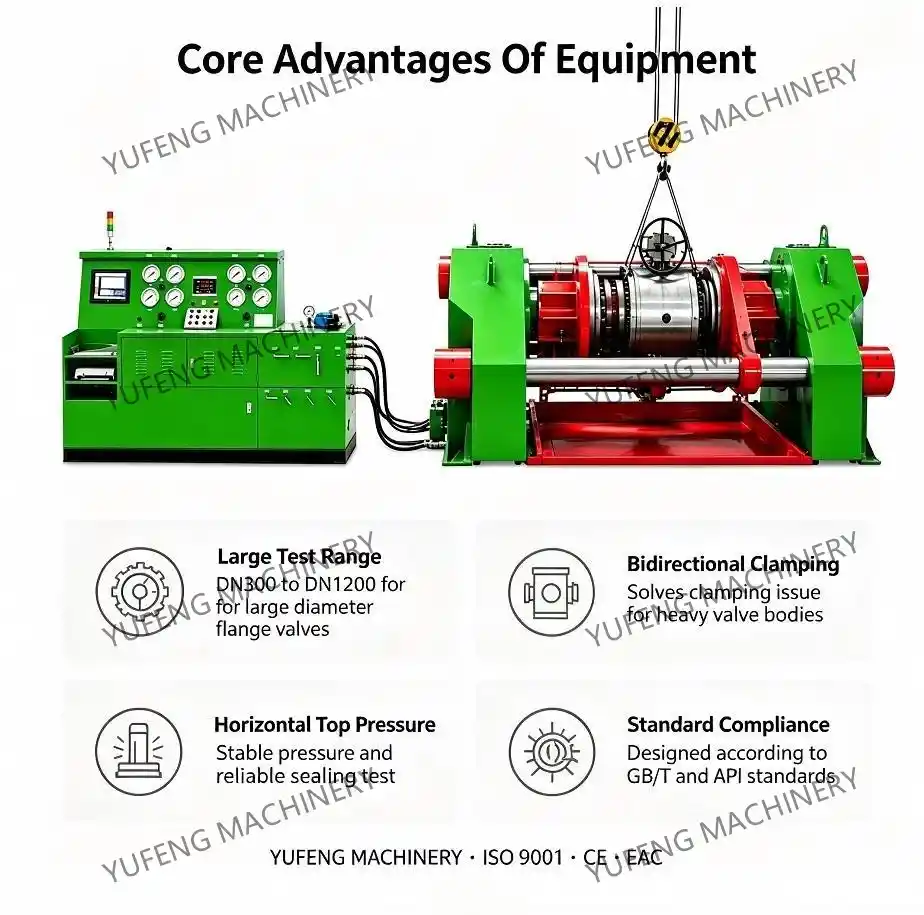

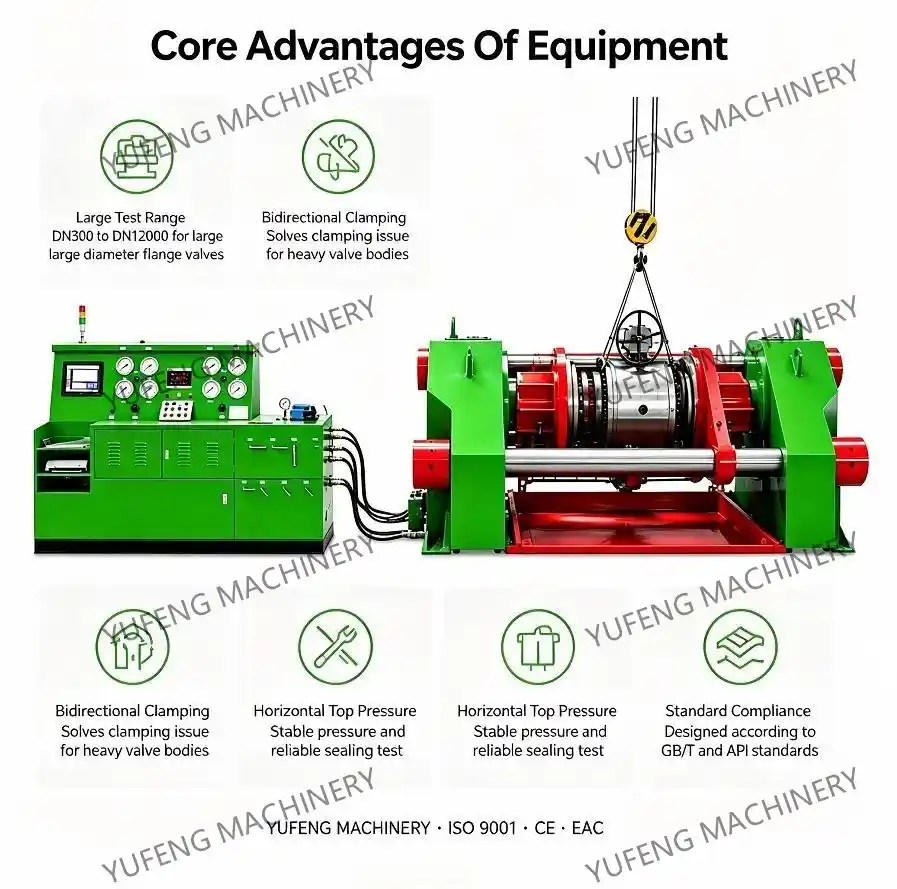

Seven Core Differentiated Product Advantages

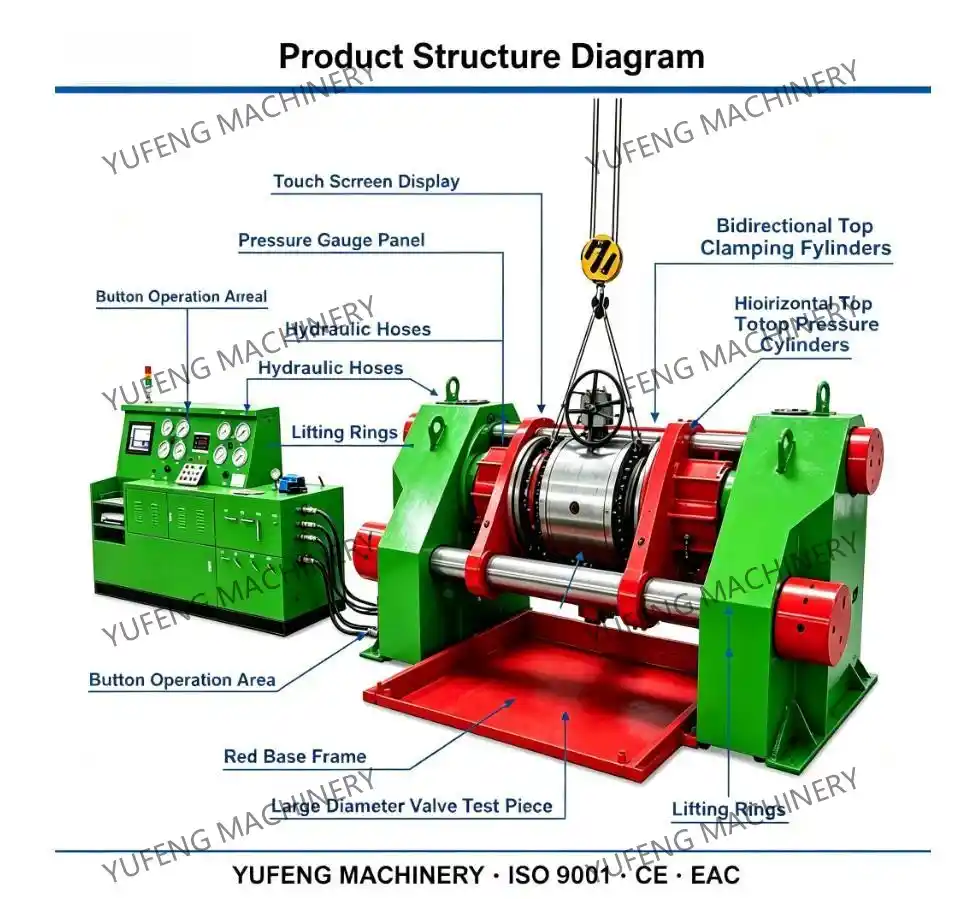

1.Large Tonnage Double-end Hydraulic Axial Top Press Clamping Frame The core load-bearing advantage of DN1200 Horizontal Hydraulic Top Press Valve Test Bench (Model YFJX-H): double large hydraulic cylinders provide bidirectional synchronous jacking force, sufficient clamping tonnage to lock DN300-DN1200 extra heavy alloy steel valves firmly, no flange slipping or displacement under high test pressure, solving the insufficient clamping force pain point of small and medium test benches for large bore workpieces.

2.Ultra-long Adjustable Horizontal Guide Rail Stroke Extended integral horizontal guide rail, freely adjust clamping opening distance to adapt ultra-short body and super long body large flanged valves, one machine covers full DN300~DN1200 specification range, cutting multi-equipment procurement cost for large-scale valve manufacturers, another core structural highlight of DN1200 Horizontal Hydraulic Top Press Valve Test Bench (Model YFJX-H).

3.Dual Water & Air Independent Circulation Test Medium System Built-in independent large-volume circulating water tank and high-pressure air intake pipeline, realize shell hydrostatic strength test and bidirectional seat air tightness test on one machine, separately equipped with high-pressure boosting pumps for liquid and gas media, fully meet multi-medium multi-stage pressure holding inspection clauses of API 598 standard.

4.Heavy-duty Thickened Integral Anti-deformation Welded Base The whole machine base is welded with extra thick carbon steel plate as a whole, with reinforced triangular support at both ends of the clamping frame, long-term continuous heavy-load operation without frame bending and deformation, effectively guaranteeing the consistency of inspection data of large-diameter valves.

5.Touch Screen Digital Full-process Automatic Test Control Centralized touch screen PLC operation system, support one-click automatic test cycle, automatic timing pressure holding, real-time pressure curve storage and batch electronic report export; all pressure, time and protection parameters can be preset and stored, greatly reducing manual operation error rate.

6.Multi-layer Heavy-load Safety Interlock Protection Mechanism Equipped with hydraulic overpressure relief protection, mechanical limit anti-overtravel block, emergency stop power cut-off and overload stall four-fold safety interlock, automatically cut off hydraulic jacking and pressure output when abnormal conditions occur, preventing large valve burst and equipment structural damage, fully meet EU CE industrial heavy machinery safety standards.

7.Reserved Modular Intelligent Upgrade Expansion Interface The main electrical control cabinet reserves data communication expansion port, customers can later upgrade remote data transmission, MES system docking and automatic data cloud storage functions, realize full digital traceability of large valve batch inspection records.

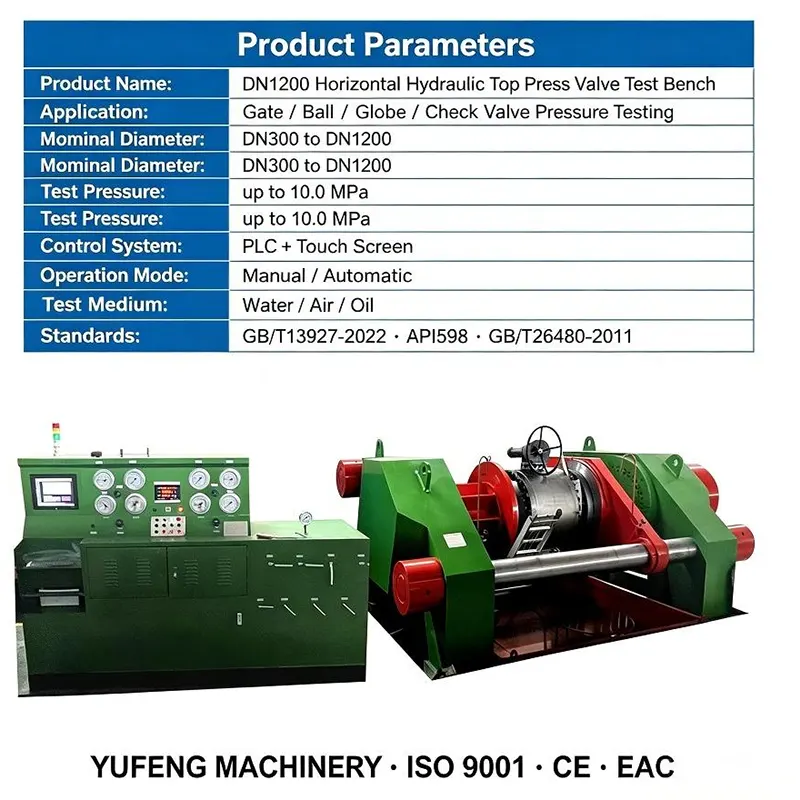

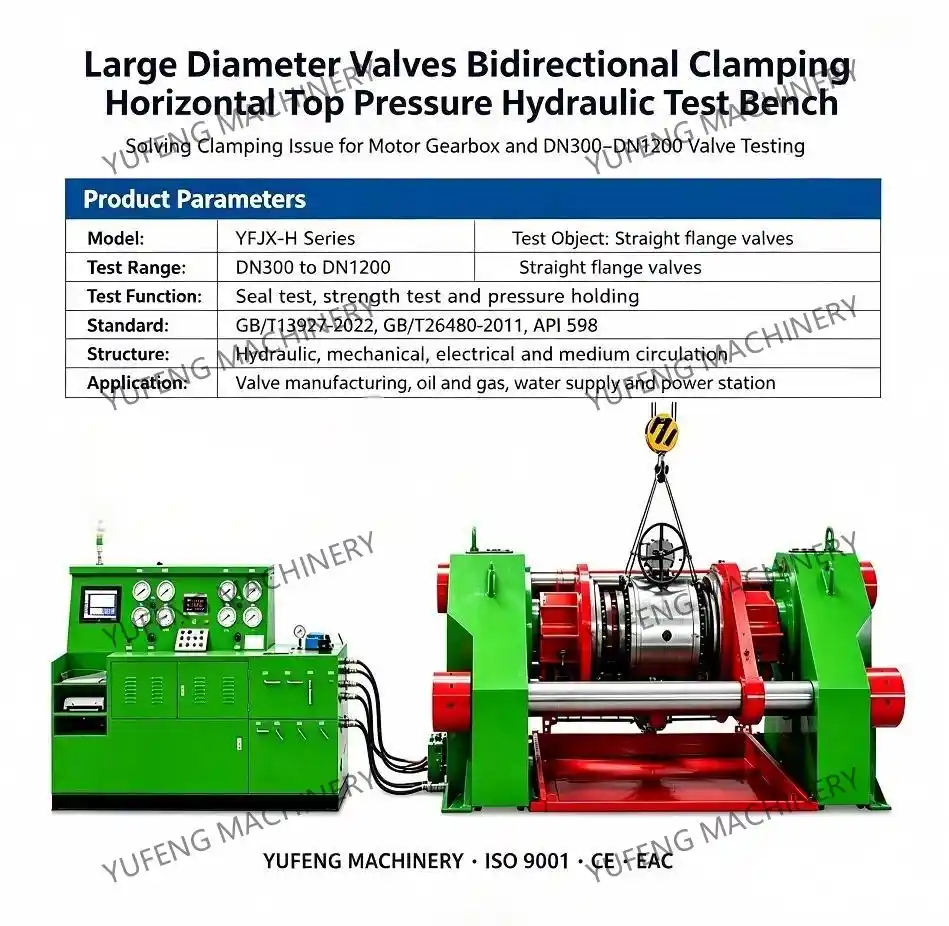

Complete Technical Parameter Table

Seven Target Matching Application Scenarios

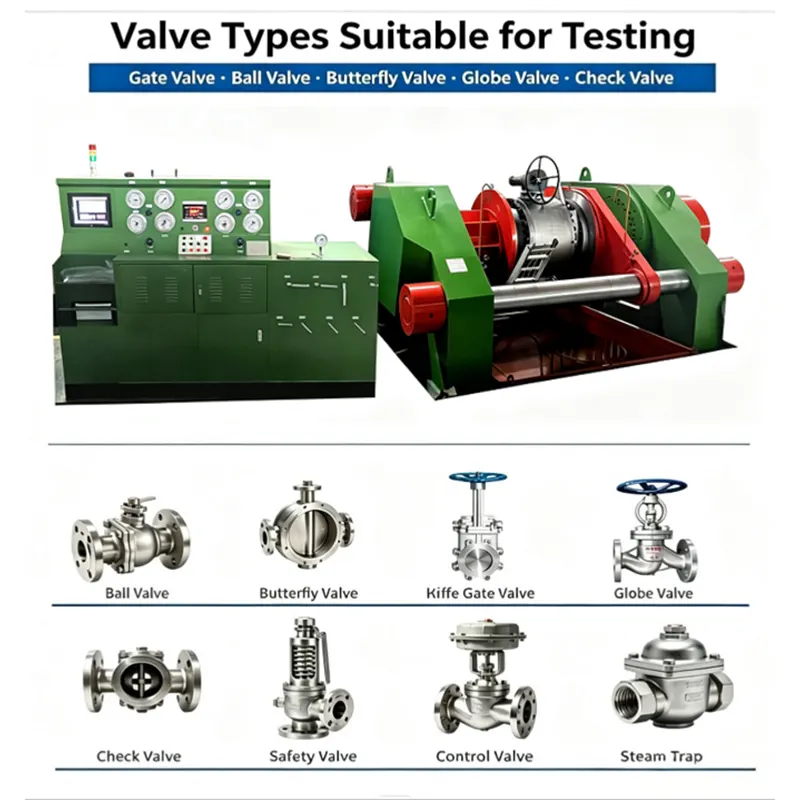

1.Large-scale Heavy Valve Manufacturing Factories: Batch offline full inspection of DN300-DN1200 large ball valves, gate valves and globe valves before factory delivery, completing shell strength and bidirectional seat tightness test.

2.Petrochemical & Natural Gas Long-distance Transmission Pipeline Equipment Base: Pressure inspection of large main pipeline cut-off valves, supporting pre-commissioning inspection for overseas energy EPC mega-projects.

3.Large Thermal Power & Nuclear Power Auxiliary Equipment Workshop: Periodic pressure recheck of ultra-large bore high-temperature and high-pressure auxiliary valves for power station main pipeline systems.

4.Municipal Large-scale Water Diversion & Sewage Treatment Project Inspection Room: Strength and air tightness test of super large-diameter cast iron pipeline valves for national water conservancy projects.

5.Professional Large Valve Maintenance & Repair Service Station: Re-inspection of recovered scrapped large industrial valves after refurbishment and sealing surface repair.

6.Overseas Large Valve Assembly & Processing EPC Plant: Heavy-duty horizontal large-bore testing equipment, matching multi-language touch screen panel and complete full CE heavy machinery export certification documents.

7.Large Valve Material & Sealing Performance R&D Lab: Fatigue cycle pressure test of new alloy ultra-large bore valves, comparative tightness test of different hard sealing structures.

Global Pre-sale, In-sale & After-sales Integrated Service System

Pre-sales Technical Customization Support

Professional large valve pressure inspection process engineers conduct one-on-one deep technical communication, confirm valve nominal diameter range, maximum test pressure, execution inspection standard, daily bulk inspection output and factory workshop bearing space layout, provide equipment foundation installation drawing, guide rail stroke customization scheme and free large valve sample pressure test verification service, issue targeted heavy-duty complete test solution and formal quotation within 24 working hours.

In-sales Production & Export Shipment Service

Whole-process real-time video tracking of heavy equipment production progress, full-load continuous cycle pressure test before factory delivery with original complete test record report retained; export version adopts extra thick solid wood frame + steel belt reinforced shockproof and moisture-proof packaging, complete hydraulic schematic diagram, heavy-duty electrical wiring diagram, multilingual full operation manual and full set of customs clearance certification documents delivered together with the machine.

After-sales Global Technical Quality Guarantee

Double-end large hydraulic clamping cylinders, high-pressure booster pumps, touch screen PLC electrical core components enjoy 24-month global warranty, free supply of non-human damage replacement parts within warranty period; provide remote online PLC parameter remote debugging, full heavy valve test operation video tutorial, coordinate overseas local professional heavy machinery agents to provide on-site installation, commissioning and maintenance service; lifelong supply of general heavy mechanical and hydraulic spare parts, free long-term large valve pressure testing process technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can this large test bench complete dual medium water and air multi-stage pressure holding inspection required by API 598 standard?

A1: Yes, independent high-pressure water and air boosting pipelines are equipped, separately control shell strength water pressure test and seat air tightness test, fully match all multi-stage pressure holding and medium switching inspection clauses of API 598 standard for large bore valves.

Q2: Is the double-end hydraulic axial top press clamping force stable for ultra-heavy DN1200 alloy steel valves?

A2: Bidirectional synchronous large tonnage hydraulic jacking provides constant uniform clamping force, long horizontal guide rail ensures coaxiality of valve clamping, no offset and sliding under ultra-high test pressure, fully adapt to super heavy large-diameter industrial valves.

Q3: Can remote digital data uploading and MES docking function be upgraded after equipment purchase?

A3: The central control system reserves industrial data communication expansion port at factory, customers can later retrofit remote pressure curve transmission, cloud data storage and factory MES intelligent management system docking function at any time in later use.

Q4: Can the machine carry out full CE heavy-duty industrial machinery safety standard transformation for overseas export?

A4: We can complete all CE heavy machinery safety transformation according to overseas mega-project market requirements, configure multi-language touch screen panel and 415V heavy industrial export voltage, provide complete full CE certification document set for customs clearance and overseas large energy project acceptance audit.

Q5: What is the standard production delivery cycle?

A5: Standard stroke DN1200 Horizontal Hydraulic Top Press Valve Test Bench (Model YFJX-H) delivery cycle is 40 working days; customized ultra-long guide rail, ultra-high pressure and digital remote upgraded model delivery cycle is 45~50 working days.

Purchase Guidance

Please send detailed information including valve nominal diameter range, maximum test pressure, execution inspection standard, daily bulk inspection quantity, factory foundation bearing condition and export voltage/certification demand to our engineering team mailbox. Our technical team will generate complete integrated heavy-duty large-bore horizontal axial top pressure valve pressure inspection solution and long-term bulk procurement preferential quotation within 24 working hours, support annual framework cooperation bulk orders for large heavy valve factories and global super large energy pipeline EPC supporting project orders.
