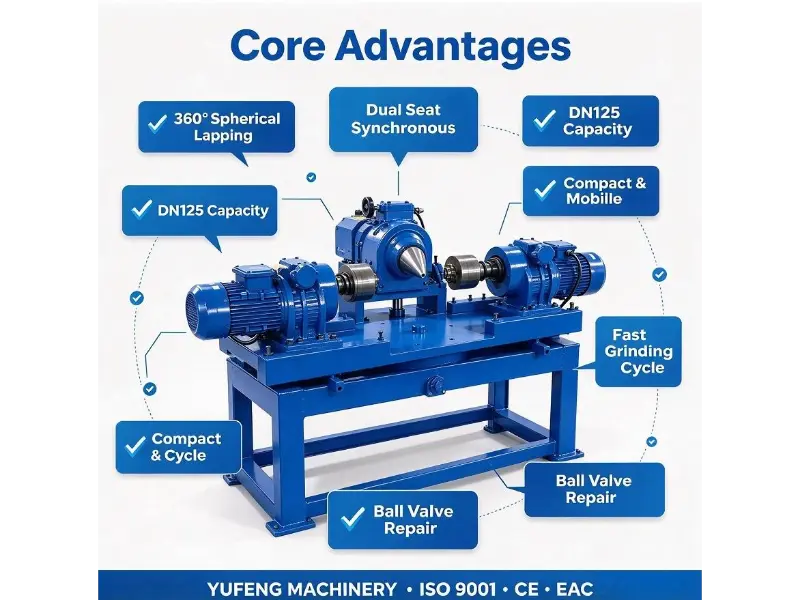

DN125 Double Seat Ball Lapping Machine for Ball Valve Sphere and Seat Surface Refurbishment

1. Product Introduction

The Valve Actuator Test Bench is a special testing equipment designed for performance detection of valve actuators, including electric actuators, hydraulic actuators and pneumatic actuators.

This Valve Actuator Test Bench adopts a sturdy horizontal base frame and symmetrical driving and testing structure, which can simulate the operating load of the actuator and detect key performance parameters such as torque, thrust, stroke, rotation angle, switching time and sealing performance. Equipped with industrial control system, digital display instruments and data acquisition modules, the equipment can realize stable loading, real-time parameter monitoring and automatic test data recording. It is widely used in actuator manufacturing factories, valve complete machine factories, petrochemical maintenance units and industrial automation equipment testing fields.

2. Industry Common Pain Points & Targeted Solutions

2.1 Industry Pain Points of Traditional Actuator Testing

Actuator performance cannot be tested comprehensively: Many enterprises only conduct simple power-on or air supply tests, lacking effective detection of torque, thrust, stroke and switching time.

Inconsistent test data and low credibility: Manual reading and simple instrument measurement lead to scattered data, which cannot provide reliable basis for product inspection and type evaluation.

Load simulation ability is poor: Actual operating conditions cannot be simulated, making it difficult to verify whether the actuator can output stable torque or thrust under working conditions.

Low test efficiency and high labor intensity: Manual loading, manual measurement and manual recording are time-consuming and labor-intensive, especially for batch testing.

Data traceability is insufficient: Test records cannot be stored and queried effectively, which is not conducive to product quality analysis and after-sales problem diagnosis.

2.2 Targeted Optimization Solutions

Comprehensive performance detection: The Valve Actuator Test Bench integrates load simulation, parameter measurement and data recording, realizing multi-parameter performance detection of actuators.

Digital measurement and stable acquisition: Industrial sensors and digital display instruments improve test accuracy and data consistency, ensuring that test results are more credible.

Realistic load simulation: The equipment can simulate the operating load of the actuator, verify its actual output capacity, and improve the reliability of the test.

Efficient test process: Automatic loading, real-time monitoring and data recording reduce manual operation and improve batch test efficiency.

Data management and traceability: Test data can be stored, displayed and queried, supporting product quality analysis and after-sales diagnosis.

3. Seven Core Differentiated Advantages

3.1. Specialized in Valve Actuator Performance Testing

The Valve Actuator Test Bench is specially developed for valve actuators, covering electric, hydraulic and pneumatic actuator performance detection scenarios.

3.2. Sturdy Horizontal Frame, Stable Loading

Adopts heavy-duty base frame and symmetrical structure, with good rigidity and stable operation, ensuring accurate and repeatable test results.

3.3. Multi-Parameter Detection, Comprehensive Performance Evaluation

Supports detection of torque, thrust, stroke, rotation angle, switching time, sealing performance and other key parameters, helping manufacturers evaluate product performance comprehensively.

3.4. Digital Display and Data Acquisition

Equipped with industrial sensors and digital display modules, it can monitor test parameters in real time and automatically record test data, reducing human error.

3.5. Load Simulation Closer to Actual Working Conditions

The equipment can simulate the operating load of the actuator, verify whether its output torque or thrust meets the design requirements, and improve product delivery reliability.

3.6. Suitable for Batch Testing and Quality Control

The test process is intuitive and efficient, suitable for actuator factory inspection, type test, sampling inspection and quality control.

3.7. Convenient Operation and Flexible Expansion

Reasonable structure layout, convenient workpiece installation and parameter setting; the system can be expanded according to customer needs to meet different test standard requirements.

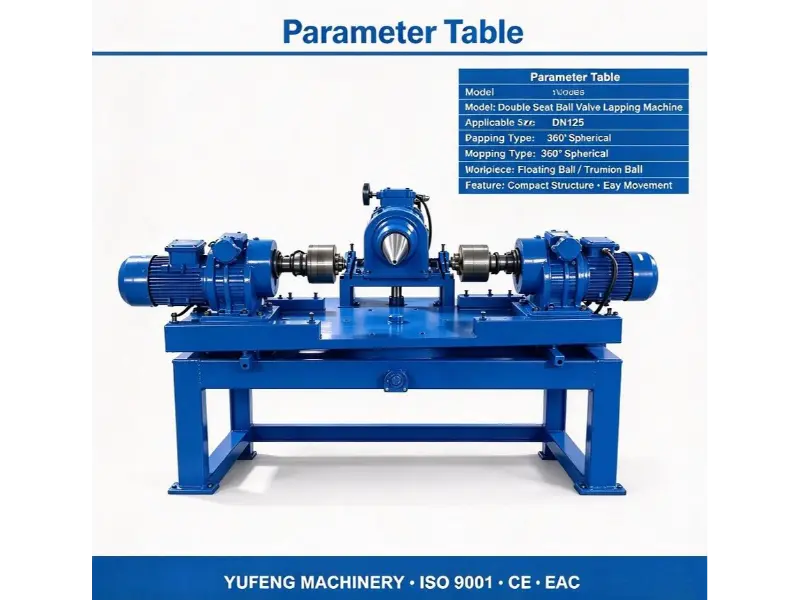

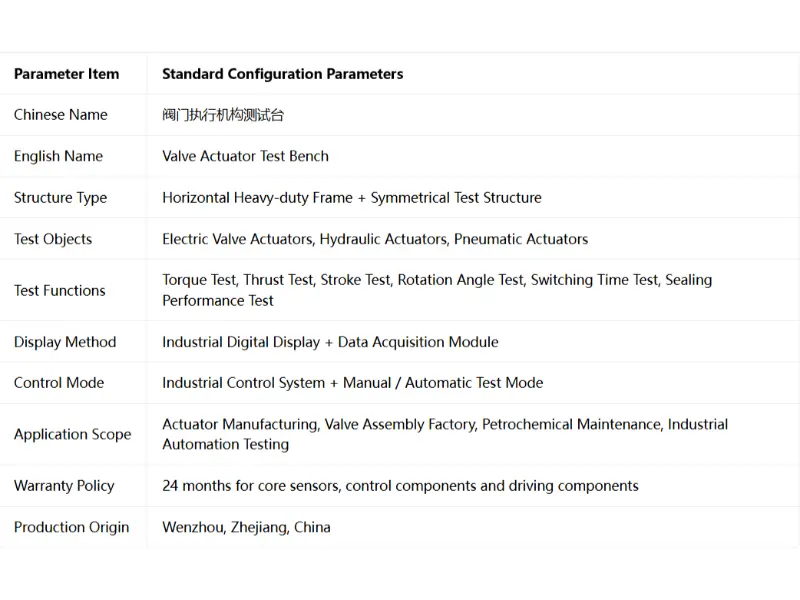

4. Complete Technical Parameter Table

5.Seven Target Application Scenarios

5.1 Actuator manufacturing factories: Factory inspection and performance verification of electric, hydraulic and pneumatic actuators.

5.2 Valve complete machine factories: Matching valve and actuator commissioning and performance detection.

5.3 Petrochemical maintenance units: Performance testing and fault diagnosis of actuators after maintenance.

5.4 Industrial automation equipment factories: Function and reliability testing of valve actuators.

5.5 Quality inspection institutions: Sampling inspection and type evaluation of actuator products.

5.6 Power plants and heating stations: Actuator calibration and performance verification before installation.

5.7 Valve R&D laboratories: New product testing, parameter verification and performance optimization.

7. Pre-sales, In-sales & After-sales Global Integrated Service

7.1 Pre-sales Customized Technical SupportProfessional engineers provide one-on-one communication, confirm your actuator types, test parameters, test standard requirements and workshop layout, provide customized test schemes and formal quotation within 24 hours.

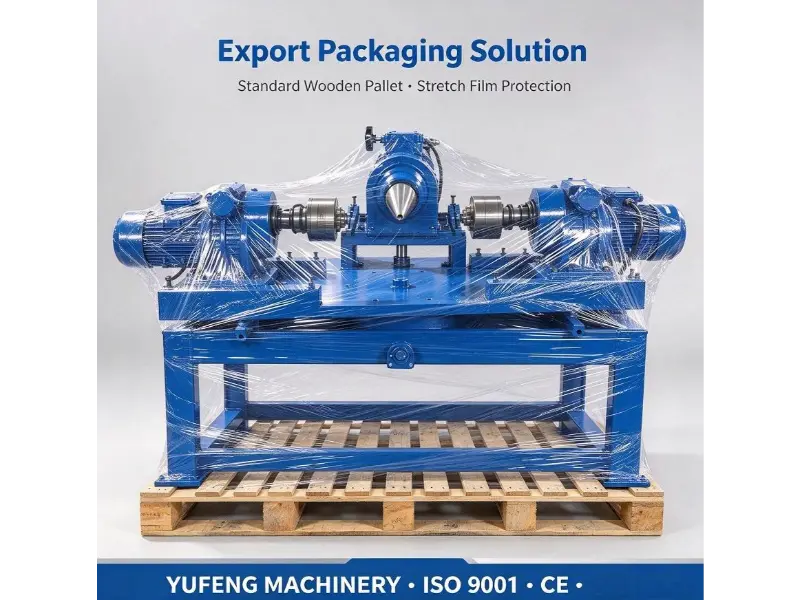

7.2 In-sales Production & Export PackagingThe whole production process supports real-time video inspection. Before delivery, the equipment will complete no-load test, load simulation test, parameter calibration and data recording test. Export products are packed in reinforced shockproof wooden cases, equipped with bilingual operation manuals, test system instructions and complete customs clearance documents.

7.3 After-sales Global Warranty ServiceCore sensors, control components and driving components enjoy 24-month global warranty. Non-human damaged parts are replaced free of charge during the warranty period. We provide remote video guidance, parameter calibration, fault troubleshooting and long-term technical consultation.

8. FAQ & Purchase Guidance

Q1: What types of actuators can this test bench detect?

A1: It is suitable for performance detection of electric valve actuators, hydraulic actuators and pneumatic actuators.

Q2: What key parameters can be tested?

A2: It can test torque, thrust, stroke, rotation angle, switching time, sealing performance and other parameters.

Q3: Can the test data be automatically recorded?

A3: Yes. The equipment is equipped with industrial sensors and data acquisition modules, which can monitor and record test data in real time.

Q4: Is it suitable for batch factory inspection?

A4: Yes. The intuitive test process and digital measurement method are suitable for factory inspection, sampling inspection and quality control.

Q5: What is the delivery cycle?

A5: Standard configuration: 25 working days; customized parameter and function upgrade version: 35 working days.
