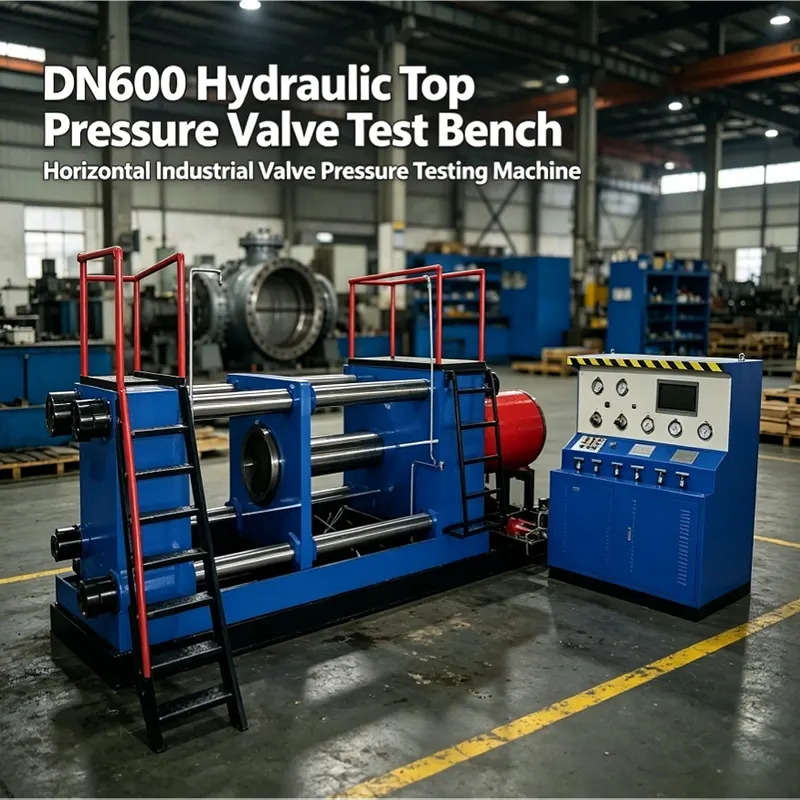

Top Pressure Horizontal Valve Test Bench With Access Ladder

This Top Pressure Horizontal Valve Test Bench With Access Ladder is originally designed for performance test of welded end connection valves. Equipped with replaceable transition backing plates (optional configuration), it can be adapted to flange-connected and thread-connected valves synchronously, realizing multi-interface universal detection on one single device. Customers can independently select test media: clean water, compressed air or diesel oil to meet various industrial working condition inspection requirements. The machine is standard configured with low-pressure water filling pump, high-pressure booster pump and closed medium circulation water tank to realize cyclic utilization of test fluid and reduce daily operation consumption.

Multiple functional modules are optional: intelligent test data management system, hydraulic air cooling system, automatic hydraulic unloading system, safety protective sliding door, etc. The applicable valve caliber and maximum test pressure can be fully customized according to on-site production demands. Core basic parameters: applicable range DN150-DN600, overall dimension 410018001500mm, total weight 12 tons, rated power 18KW. Built-in bilateral maintenance climbing ladders and safety guardrails, convenient for operators to inspect pipeline components and maintain equipment top structure safely. We can provide CE safety certification renovation, multi-language touch panel and 415V export voltage adaptation for overseas energy, pipeline and valve manufacturing enterprises.

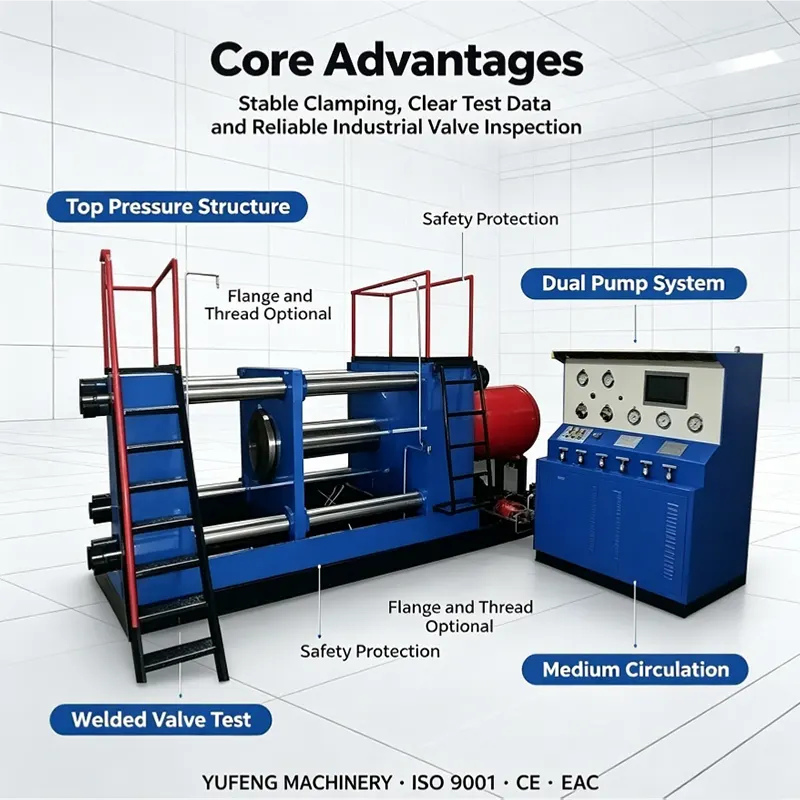

Seven Core Differentiated Advantages

1.Dual Synchronous Hydraulic Cylinder Balanced Jacking Clamping Structure The core mechanical advantage of Top Pressure Horizontal Valve Test Bench With Access Ladder: two large-tonnage hydraulic cylinders run synchronously to output uniform axial clamping force, end-face compression mode makes valve flange stress evenly distributed, no eccentric deflection or local deformation during long-time high-pressure holding, suitable for heavy thick-wall industrial valves.

2.Three Connection Form Valves Universal Compatibility With interchangeable adapter backing plates, the bench supports welded butt valves, flange valves and thread end valves three mainstream connection types, solving the trouble of purchasing multiple single-purpose test benches for valve factories with diversified product lines.

3.Built-in Bilateral Maintenance Ladder & Safety Guardrail System Exclusive design of climbing ladders and protective frames on both sides of the bed body: operators can safely climb up to check upper pipelines, pressure pipelines and hydraulic fittings, convenient for daily maintenance, troubleshooting and overhaul work, greatly reducing equipment downtime.

4.Three Optional Test Media + Closed-loop Circulation System Water, air, diesel three media switchable; built-in large-capacity circulation water tank collects residual test liquid for repeated use, saving water resource cost and keeping the workshop ground clean without sewage accumulation.

5.Low-pressure Filling + High-pressure Stepped Boost Dual Pump System Low-pressure pump rapidly fills valve cavity and exhausts internal air; high-pressure pump performs graded pressure rise and constant pressure holding. PLC constant pressure control system compensates pressure loss automatically, pressure control precision ≤±1%, fully compliant with GB/T13927-2022 and API 598 multi-stage pressure holding standards.

6.12-ton Super Heavy-load Integral Welded Rigid Frame Ultra-thick steel plate one-piece welded bed frame, undergone stress relief annealing treatment, total bearing capacity up to 12 tons, stable and vibration-free under long-term continuous heavy-load operation, never frame bending deformation.

7.Modular Optional Intelligent Upgrade Suite Customers can freely select functional modules: data acquisition & electronic report export, hydraulic air cooling to reduce oil temperature, automatic pressure relief after test completion, fully enclosed safety protective door, etc., configure equipment according to actual production budget and inspection needs.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Medium & Large Comprehensive Valve Manufacturing Factories: Batch delivery inspection of DN150-DN600 multi-end connection industrial valves.

2.Petrochemical & Refinery Pipeline Equipment Manufacturers: Strength and tightness test of high-pressure welded process pipeline valves.

3.Municipal Large-scale Water Conservancy Diversion Projects: Acceptance pressure test of large bore flange water conservancy valves.

4.Thermal Power Plant Auxiliary Equipment Workshop: Periodic re-inspection of circulating water system heavy pipeline valves.

5.Professional Heavy-duty Valve Overhaul & Maintenance Station: Post-renovation performance test for recycled used industrial valves.

6.Overseas Medium-sized Valve Assembly EPC Factory: Multi-purpose heavy valve testing equipment with complete CE export certification documents.

7.Valve New Structure R&D Laboratory: Fatigue cycle pressure test for welded & flange dual-purpose valve prototypes.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional heavy valve testing engineers conduct one-on-one technical communication, confirm valve connection type, caliber range, maximum test pressure, selected medium and optional functional modules; provide equipment foundation layout drawing and free valve sample pressure testing verification service, issue targeted customized testing scheme and formal quotation within 24 working hours.

In-sales Production & Export Shipment Service

Whole production progress tracked by real-time video; full-load continuous pressure cycle test completed before delivery with original test records archived. Export version adopts extra thick solid wood frame + steel belt shockproof & moisture-proof reinforced packaging; hydraulic schematic diagram, electrical wiring drawing, multilingual operation manual and full set of customs clearance certification documents are delivered together with the machine.

After-sales Global Quality Assurance Service

Dual hydraulic clamping cylinders, high-pressure booster pumps, PLC controllers and pressure sensors enjoy 24-month global warranty; free replacement of non-artificial damaged spare parts within warranty period. We provide remote online PLC parameter debugging, complete operation video tutorials, coordinate local overseas agents for on-site installation, commissioning and maintenance; lifelong supply of general hydraulic spare parts and free long-term valve pressure testing technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can this bench test welded, flange and thread three kinds of connection valves?

A1: Equipped with interchangeable transition backing plates, you can switch different fixtures freely to adapt to three connection forms, one machine meets diversified production line inspection needs.

Q2: What is the function of the bilateral maintenance climbing ladder?

A2: The ladder and safety guardrail facilitate staff to climb up to check upper hydraulic pipelines, pressure gauges and valve blocks, convenient for daily maintenance, fault inspection and equipment overhaul, greatly improving maintainability.

Q3: Can automatic data recording and report export function be added later?

A3: The control system reserves digital expansion interface at factory, all optional intelligent functional modules can be retrofitted after equipment purchase.

Q4: Is CE certification available for overseas export trade?

A4: We can complete full CE heavy industrial machinery safety transformation, configure multi-language operation panel and 415V export voltage, provide complete CE certification documents for customs clearance and overseas project acceptance audit.

Q5: What is the standard production delivery cycle?

A5: Standard configuration delivery cycle: 40 working days; customized ultra-high pressure, full intelligent version delivery cycle: 45 working days.

Purchase Guidance

Please send detailed information including valve connection mode, applicable caliber scope, maximum test pressure, selected test medium and optional functional requirements to our engineering team. We will formulate a complete multi-connection heavy valve pressure testing solution and preferential bulk procurement quotation within 24 hours, supporting annual framework cooperation orders for comprehensive valve manufacturers and global energy & water conservancy pipeline EPC supporting projects.
