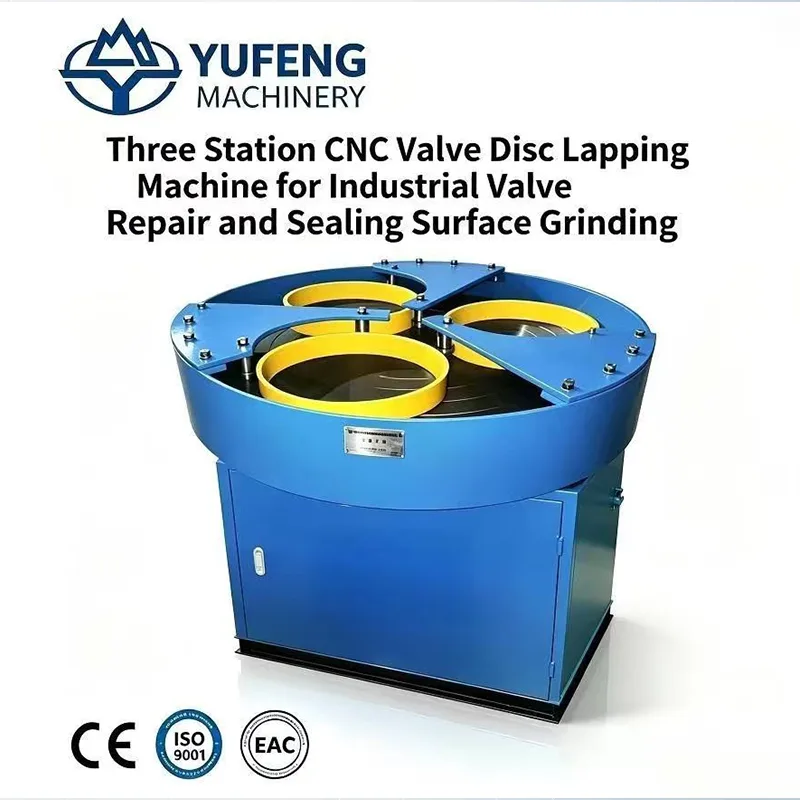

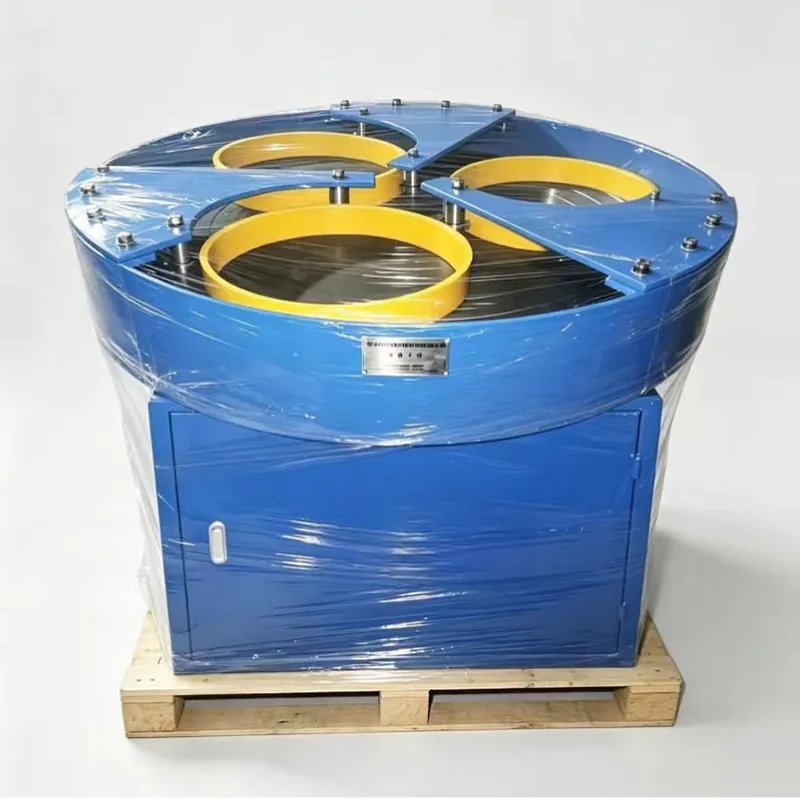

Three Station CNC Valve Disc Lapping Machine

The machine adopts a planetary differential motion principle where the lapping plate rotates while the movable ring also turns, achieving both revolution and rotation for high lapping efficiency and excellent surface quality. An integrated CNC control system with variable speed drive provides precise speed control and stable operation for consistent lapping quality. It is widely used in valve manufacturing plants for factory outgoing QC, valve repair and maintenance workshops, and industrial end-user in-house maintenance departments.

The Three Station CNC Valve Disc Lapping Machine is a high-precision lapping solution specifically engineered for sealing face processing of gate valve discs, globe valve discs, check valve discs, and other flat-seal valve components, delivering superior surface quality and consistent repeatability through advanced planetary differential motion technology. The following are its key specifications and capabilities:

1.Valve types processed: Suitable for sealing face lapping of gate valve discs, globe valve discs, check valve discs, and other flat-seal valve components.

2.Lapping principle: Planetary differential motion mechanism where the lapping plate rotates (revolution) while the movable ring also turns (rotation). This dual-motion design delivers uniform material removal and superior surface finish compared to conventional single-motion lapping.

3.Workstation configuration: Three lapping stations allow flexible operation modes: coarse grinding, fine grinding, and polishing can be performed simultaneously on different stations, or three identical workpieces can be processed in parallel for maximum throughput.

4.Lapping media: Compatible with various lapping compounds (200#, 400#, 600#, 800#, 2000# grit) to meet different surface finish requirements.

5.Achievable surface quality: Under initial surface roughness of Ra 6.3 on HRC30-50 material, finished surface roughness can reach Ra 0.4, with sealing face contact ratio of no less than 80%.

6.Operation: CNC-controlled with frequency conversion speed regulation, enabling stepless speed adjustment from 0 to 45 rpm for optimal lapping parameters according to workpiece material and required finish.

7.Ease of use: Lightweight and flexible operation, low labor intensity, high efficiency with one operator capable of managing multiple machines simultaneously.

In summary, the Three Station CNC Valve Disc Lapping Machine combines a three-station flexible production design with planetary differential motion technology, CNC intelligent control, heavy-duty construction, and high efficiency that increases productivity by more than ten times compared to manual lapping. It achieves surface roughness up to Ra 0.4 with sealing face contact ratio ≥80%, making it an ideal choice for valve manufacturers, repair and maintenance workshops, power plants, chemical and petrochemical industries, mining and metallurgy, MRO workshops, large industrial end-users, and third-party testing and repair agencies that require high-quality, consistent, and efficient valve disc lapping.

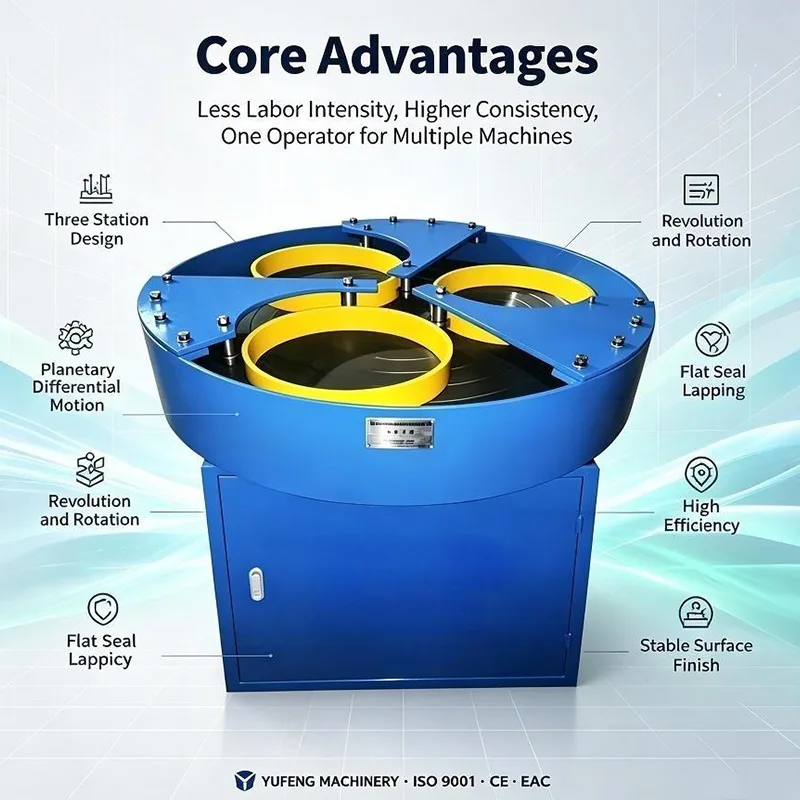

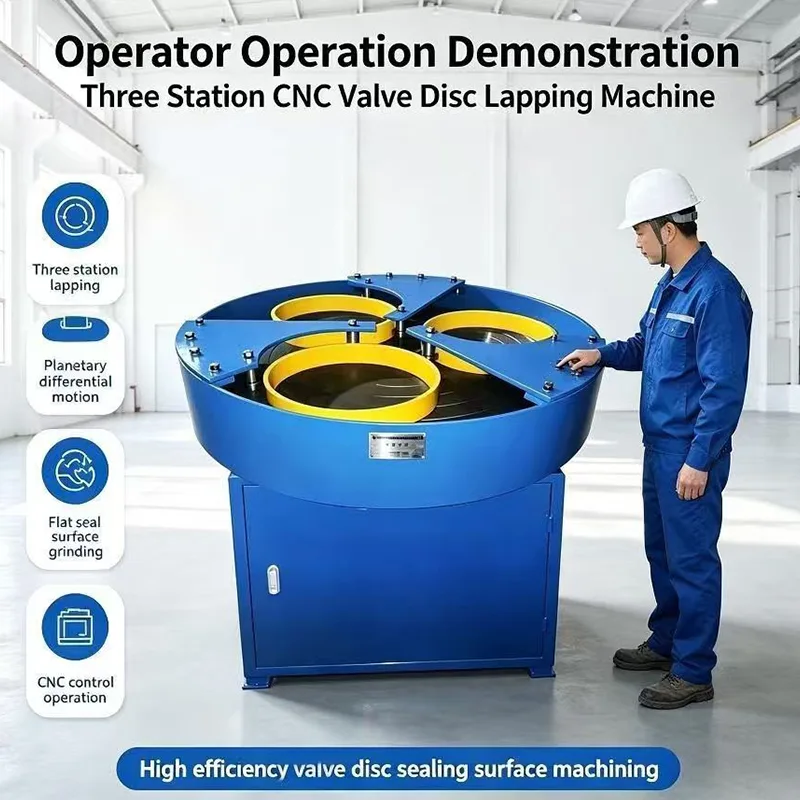

Features

1.Three-station design：Three independent lapping stations support flexible production modes: coarse/fine/polish sequential processing on a single workpiece, or parallel processing of multiple workpieces for maximum productivity.

2.Planetary differential motion：Lapping plate revolves while the movable ring rotates, delivering superior lapping quality with surface roughness up to Ra 0.4 and sealing face contact ratio ≥80%.

3.CNC intelligent contro：Advanced CNC system with variable frequency drive enables precise speed regulation from 0 to 45 rpm, automatic process control, and consistent repeatable results.

4.Heavy-duty construction：Robust frame design ensures stability and long-term accuracy; equipped with large-diameter high-hardness alloy lapping plates for processing various valve disc specifications.

5.High efficiency：Compared to manual lapping, productivity is increased by more than ten times, significantly reducing labor costs and production lead time.

6.Versatile application：uitable for flat sealing surfaces of gate valves, globe valves, check valves, and other industrial valve discs across a wide range of diameters.

7.Low maintenance：Simple structure with reliable components ensures easy maintenance and long service life.

Applications for : Valve manufacturers, repair and maintenance workshops, power plants, chemical and petrochemical industries, mining and metallurgy, MRO workshops, large industrial end-users, and third-party testing and repair agencies.

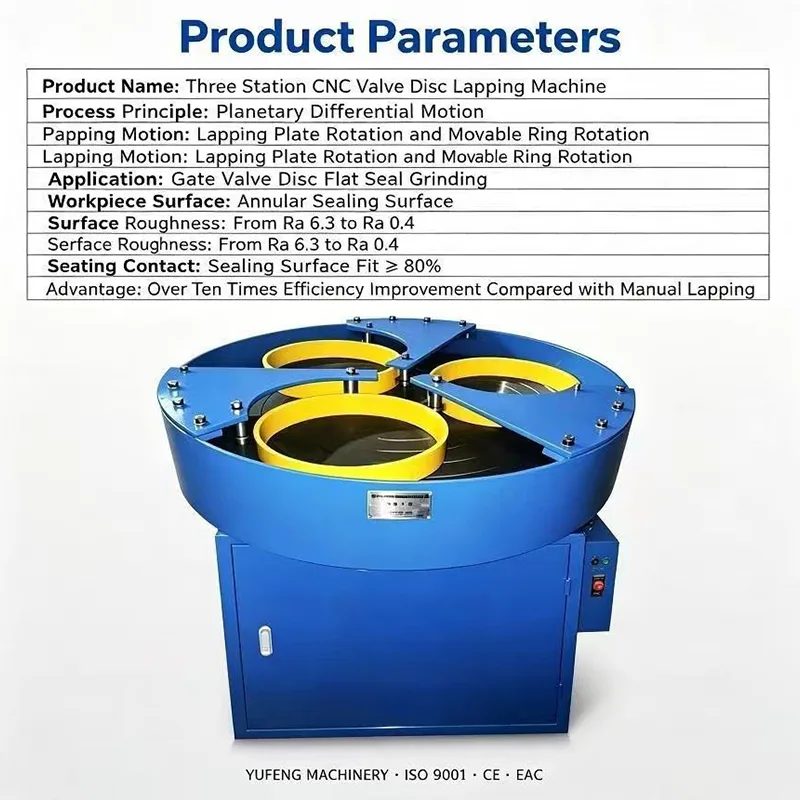

Technical Specifications Table

FAQ
