Large Bore Gate Valve Disc Grinding Machine

This Large Bore Gate Valve Disc Grinding Machine can perform precision plane grinding and polishing repair on the sealing surface of large gate valve plates, eliminate defects such as wear, scratches and corrosion, and restore the precision and flatness of the sealing surface. Adopting a sturdy and rigid frame structure, the rotation speed and feed rate can be adjusted freely, which is compatible with gate plates of different materials and various grinding abrasives. It realizes uniform fine grinding, greatly improves the sealing performance of valves, and is widely applied to the maintenance, renovation and reproduction processes of large valves in power plants, petrochemical industry, pipe network and other fields.

Fixed basic parameters extracted from picture text:

● Applicable caliber range: DN500 ~ DN2000

● Overall dimension: 3100×1700×2000mm

● Total machine weight: 3 tons

● Rated power: 7.5 KW

Industry Common Pain Points & Targeted Solutions

3.1 Universal Pain Points in Large Diameter Gate Valve Maintenance Industry

At present, enterprises engaged in power, petrochemical, municipal pipe network valve maintenance and refurbishment generally face three prominent industry pain points:

1.Manual grinding has poor precision and low efficiency: Traditional manual hand-held polishing tools are used to repair the sealing surface of large gate plates. The grinding force is uneven, the flatness cannot be guaranteed, the processing cycle is long, and the labor cost is extremely high, which cannot meet the demand for batch valve renovation.

2.Irregular repair leads to unstable sealing effect: After long-term service of large pipeline gate valves, the sealing surface is prone to scratches, pitting corrosion and abrasion. Without professional fixed grinding equipment, the repaired sealing surface has poor flatness, resulting in frequent leakage after reinstallation and short service life of refurbished valves.

3.Large-size workpiece is difficult to clamp and process: Ultra-large gate plates with DN500~DN2000 caliber are bulky and heavy. Ordinary small grinding machines cannot load and fix such workpieces, and there is no adjustable speed feed function, which cannot adapt to grinding requirements of different metal materials.

3.2 Targeted Optimization Solutions of This Equipment

To thoroughly solve the three major bottlenecks restricting the precision and efficiency of large valve sealing surface renovation, the Large Bore Gate Valve Disc Grinding Machine carries out targeted structural design and functional configuration upgrading aiming at the above industry pain points: For efficiency & precision pain point: Adopt integral rigid heavy-duty bed frame, the workpiece is stably positioned and clamped on the machine tool base, driven by adjustable power spindle for rotary grinding. The whole grinding process is uniform and stable, the flatness and surface roughness of the sealing surface are controlled within the standard range, the repair efficiency is more than 6 times higher than manual polishing, and labor cost is greatly saved.

For adaptability pain point: Equipped with stepless speed regulation and adjustable feed mechanism, rotation speed and feed stroke can be flexibly adjusted according to the material hardness of gate plate and grinding process requirements; the oversized clamping stroke is specially designed for DN500-DN2000 large gate plates, perfectly solving the clamping and processing difficulties of ultra-large valve plates, and realizing fine grinding of various metal sealing surfaces.

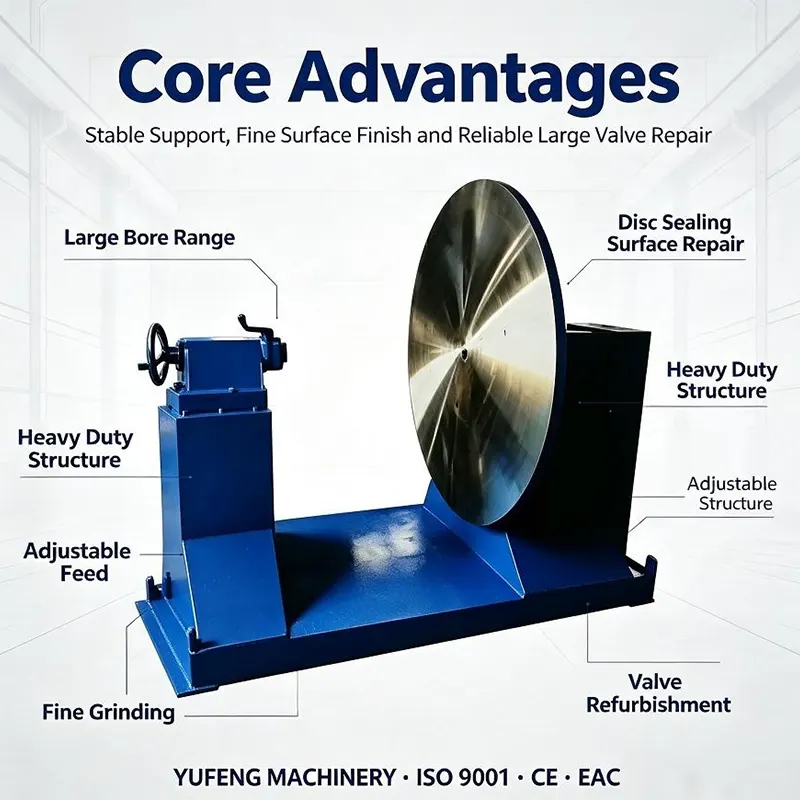

Seven Core Differentiated Advantages

1.Professional Customized for DN500-DN2000 Large Gate Plates, Strong Targeted Adaptability The core competitive advantage of Large Bore Gate Valve Disc Grinding Machine: the whole machine structure is customized and developed aiming at the overall size, weight and sealing surface processing characteristics of large-diameter gate plates, specially serving power, petrochemical and pipe network large valve maintenance enterprises, which cannot be replaced by ordinary small grinding equipment.

2.Rigid Heavy-duty Frame Structure, Stable Grinding Without Vibration Integrated cast steel thickened base + gantry rigid frame design, the whole machine has strong rigidity and anti-vibration performance during operation, no jitter or offset during high-precision plane grinding, effectively ensuring the flatness of the sealing surface after processing.

3.Stepless Adjustable Rotation Speed & Feed, Wide Material Compatibility The spindle rotation speed and axial feed speed can be adjusted arbitrarily, which can match carbon steel, stainless steel, alloy steel and other different material gate plates, and cooperate with various types of abrasive cloth, grinding wheel, polishing paste to complete rough grinding, fine grinding and finish polishing step by step.

4.Efficient Removal of Multiple Defects, Restore Standard Sealing Precision It can thoroughly eliminate surface wear, scratches, pitting corrosion, rust and other failure defects of valve plate sealing surface, accurately restore the design flatness and finish of the sealing surface, so that the refurbished gate valve can reach the original factory sealing performance standard.

5.Greatly Reduce Labor Intensity & Maintenance Comprehensive Cost Replace traditional heavy manual polishing operation, one operator can complete the whole set of grinding procedures independently, processing efficiency is greatly improved, long-term use can effectively reduce labor expenditure and repeated maintenance loss caused by unqualified repair.

6.Safe & Simple Operation, Low Technical Threshold Equipped with handwheel locking clamping mechanism and centralized operation buttons, the workpiece loading, positioning, grinding and unloading steps are simple and intuitive. Workers can be proficient in operation after short-term training, with safety interlock protection to avoid misoperation risks.

7.Durable Wear-resistant Parts, Low Daily Maintenance Cost Key rotating components adopt wear-resistant alloy materials, long service life, few vulnerable parts, no complex lubrication and hydraulic maintenance work, suitable for long-term continuous shift work in maintenance workshops.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Thermal Power & Hydropower Plant Equipment Maintenance Departments: Regular overhaul and sealing surface repair of large pipeline gate valves inside the plant.

2.Petrochemical Refining Enterprises: Refurbishment and regeneration of process pipeline large-diameter gate valves.

3.Municipal Water Supply & Drainage Pipe Network Companies: Maintenance renovation of urban large water delivery pipeline gate valves.

4.Professional Valve Remanufacturing Factories: Batch grinding and finishing of recycled large gate valve plates.

5.Coal Chemical, Natural Gas Pipeline Enterprises: Anti-corrosion and sealing performance restoration of pipeline valves.

6.Engineering Equipment Repair Workshops: On-site overhaul supporting service for large industrial valves.

7.Valve R&D Institutes: Sealing surface processing technology research and sample grinding test.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional mechanical process engineers conduct one-on-one communication, confirm the maximum valve plate caliber, material type, daily processing volume and renovation technical requirements; provide equipment foundation layout drawing and free workpiece trial grinding service, issue complete customized scheme and formal quotation within 24 working hours.

In-sales Production & Export Packaging Delivery

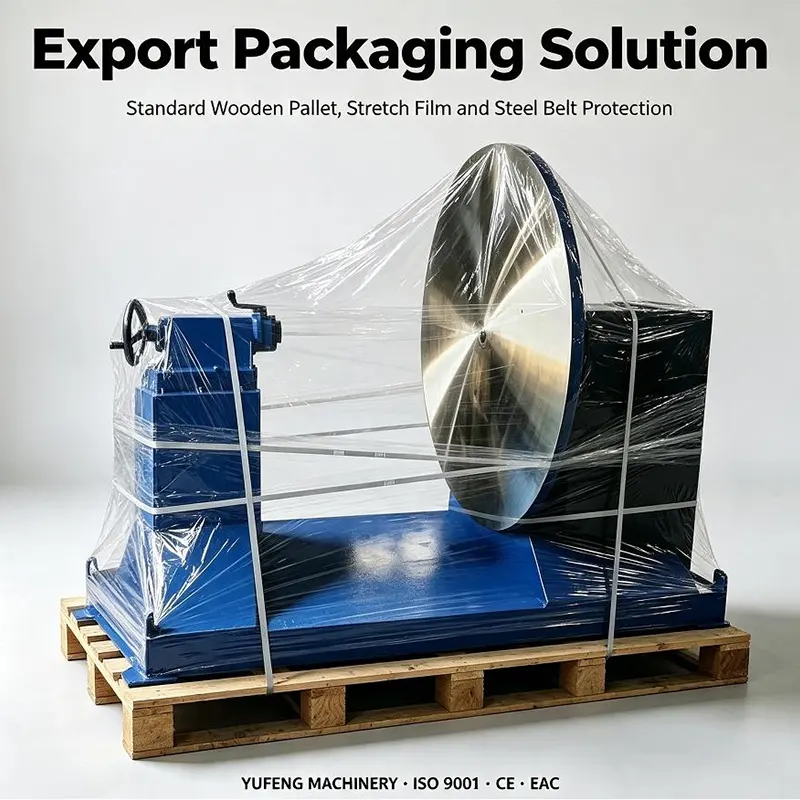

The whole production process is tracked by real-time video; no-load running test and simulated workpiece grinding test will be carried out before delivery to ensure stable performance. Export products adopt reinforced shockproof wooden case packaging, equipped with bilingual operation manual, mechanical schematic diagram and complete customs clearance certification documents.
