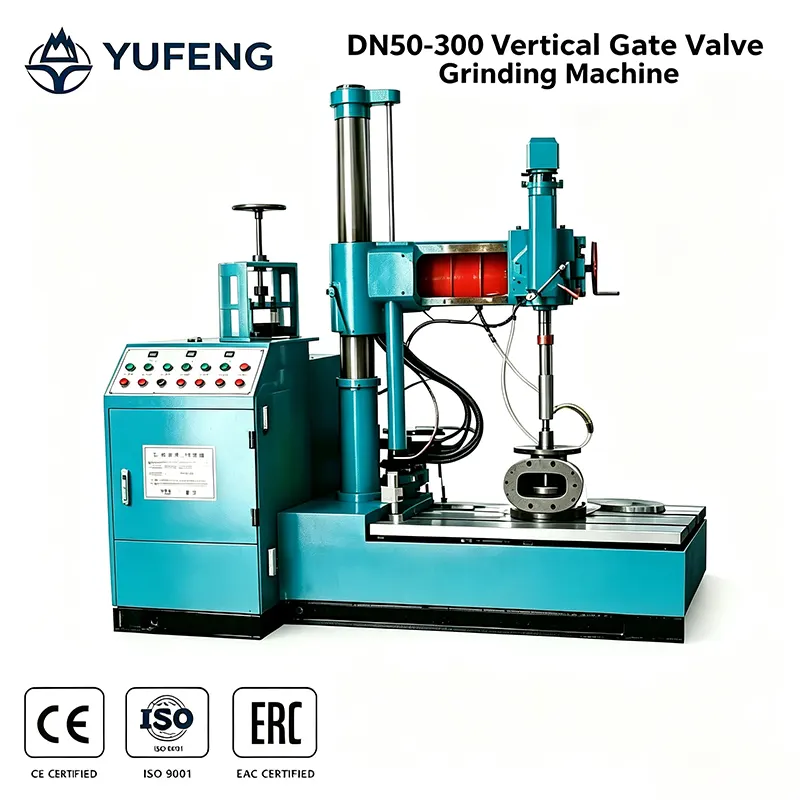

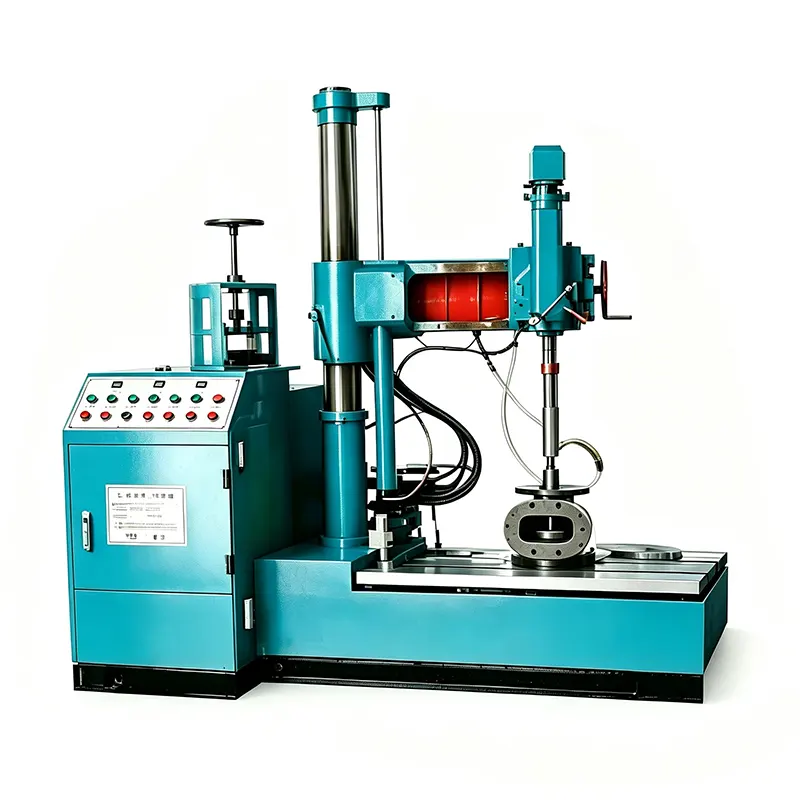

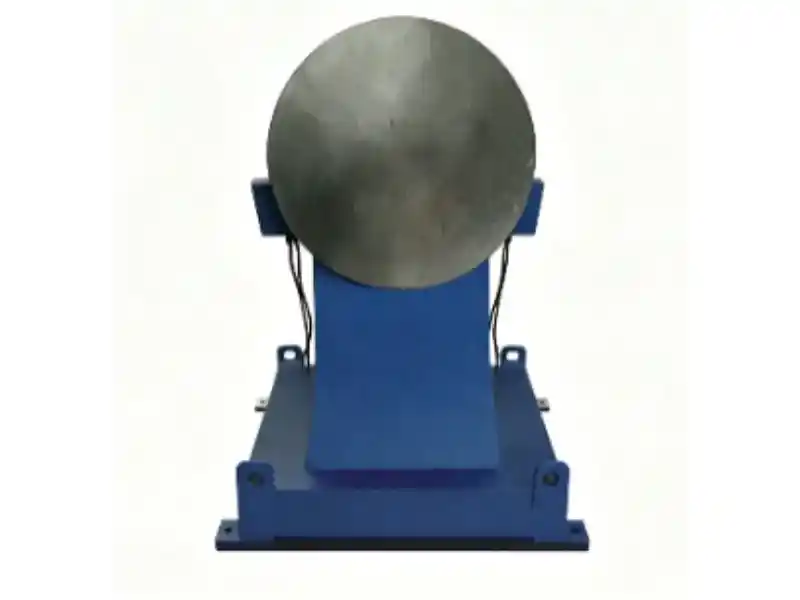

Vertical Gate Valve Grinding Machine

Supports multiple process stages including coarse grinding, fine grinding, and polishing with different grit abrasives.

Suitable for various gate valve diameters with flexible adjustment for different valve specifications.

Achieves surface roughness up to Ra 0.4 and sealing face contact ratio no less than 80 percent.

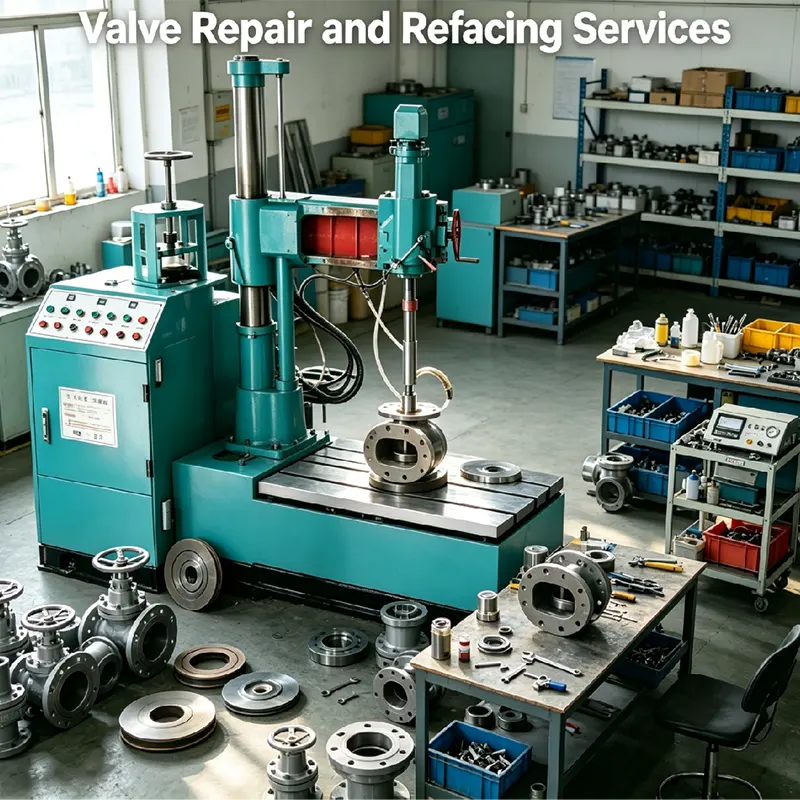

Widely used in valve manufacturing plants for factory outgoing quality control and valve repair workshops.

Detailed Product Description Brief Points

1 Vertical Gate Valve Grinding Machine processes sealing faces of gate valve bodies, wedges, and seats for various gate valve specifications.

2 Grinding principle: rotating grinding spindle with precision feed mechanism grinds the sealing face; optional planetary transmission allows the grinding disc to revolve while grinding tools rotate, creating orthogonal mesh patterns on the sealing surface for superior finish.

3 Station configuration: vertical single-station design with liftable and rotatable grinding spindle for flexible operation.

4 Vertical Gate Valve Grinding Machine is compatible with various abrasive materials including sand cloth, sand paper, and diamond grinding discs in grit sizes from 80 to 1000 mesh.

5 Achievable surface quality: from initial surface condition, finished surface roughness reaches Ra 0.4 with sealing face contact ratio no less than 80 percent.

6 Control system: equipped with variable frequency speed regulation, enabling stepless speed adjustment from 30 to 400 rpm for optimal grinding parameters.

7 Spindle adjustment: range of 0 to 50mm, arm lifting height up to 800mm or more for accommodating various valve sizes.

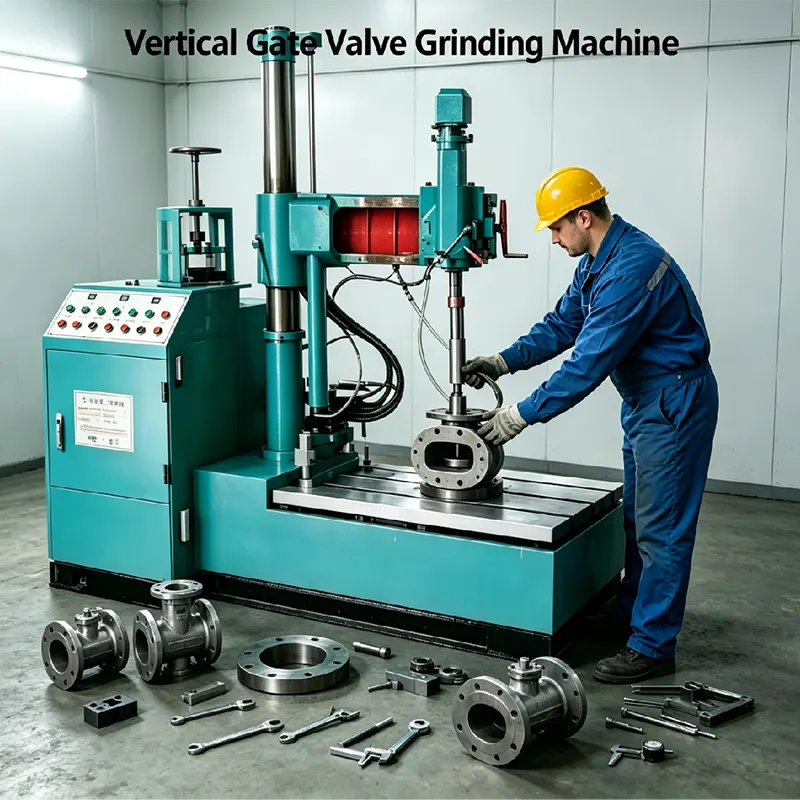

8 Ease of use: lightweight and flexible operation, low labor intensity, one operator can manage multiple machines simultaneously.

9 Core advantage: grinding efficiency is 10 to 30 times that of manual grinding, significantly reducing labor costs and production lead time.

 Product Features and Applications

Features brief points

Vertical design with liftable and rotatable grinding spindle for convenient operation.

Precision feed mechanism ensures accurate control of grinding stroke and speed.

Variable frequency drive provides stepless speed adjustment from 30 to 400 rpm.

Compatible with multiple abrasive types for coarse grinding, fine grinding, and polishing.

Robust construction with stable frame ensures long-term accuracy and durability.

High efficiency: productivity increased by 10 to 30 times compared to manual grinding.

Versatile application: suitable for various gate valve sizes and specifications.

Low maintenance: simple structure with reliable components ensures easy maintenance and long service life.

Applications brief points

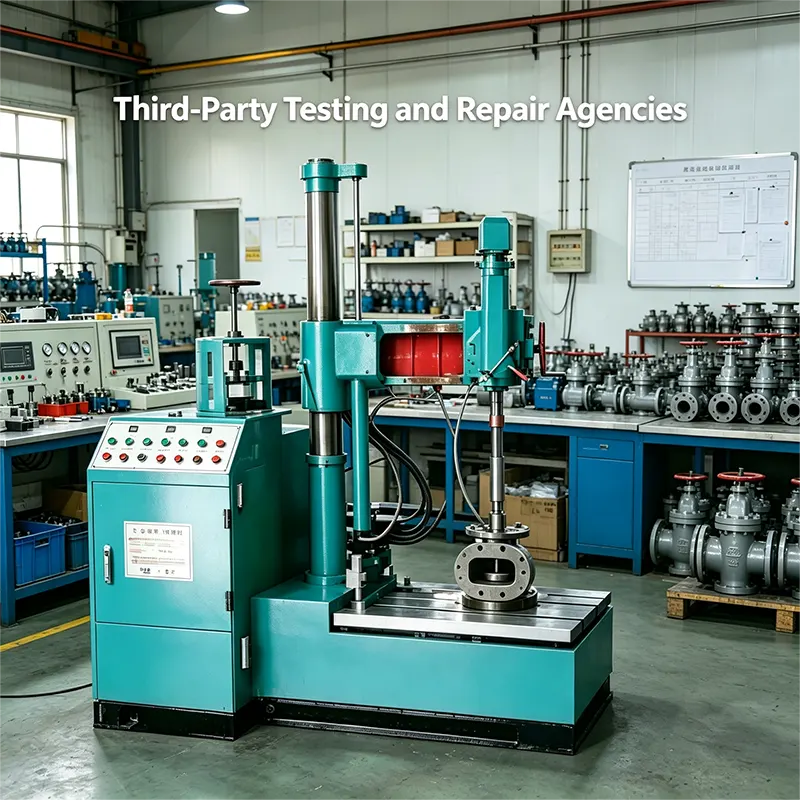

Valve manufacturers for factory outgoing quality inspection，Power plants for valve sealing face restoration，Mining and metallurgy sectors，Large industrial end-users for in-house maintenance，Third-party testing and repair agencies etc.

Technical Data Table
