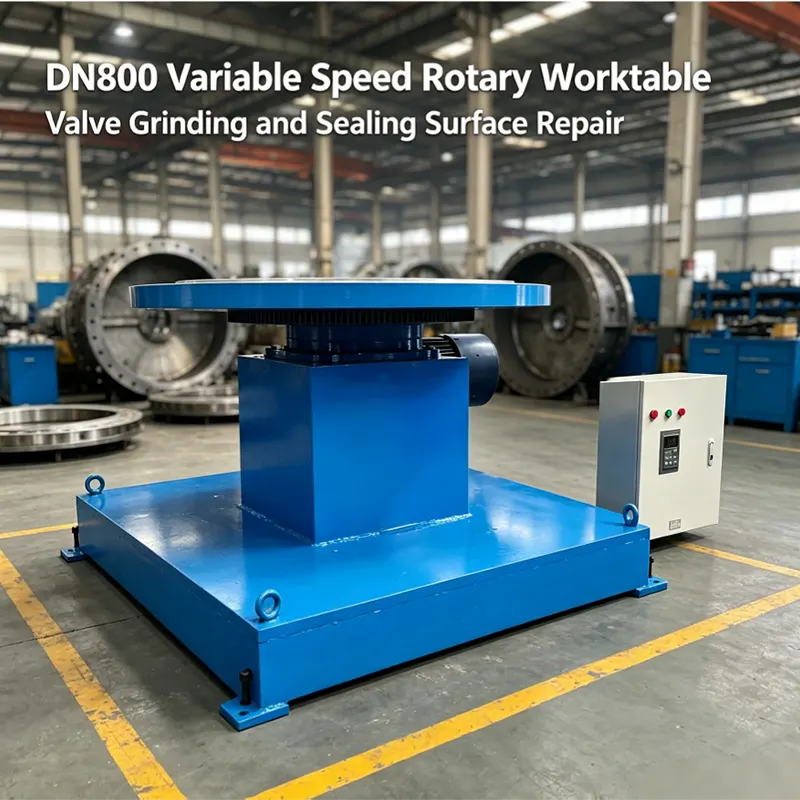

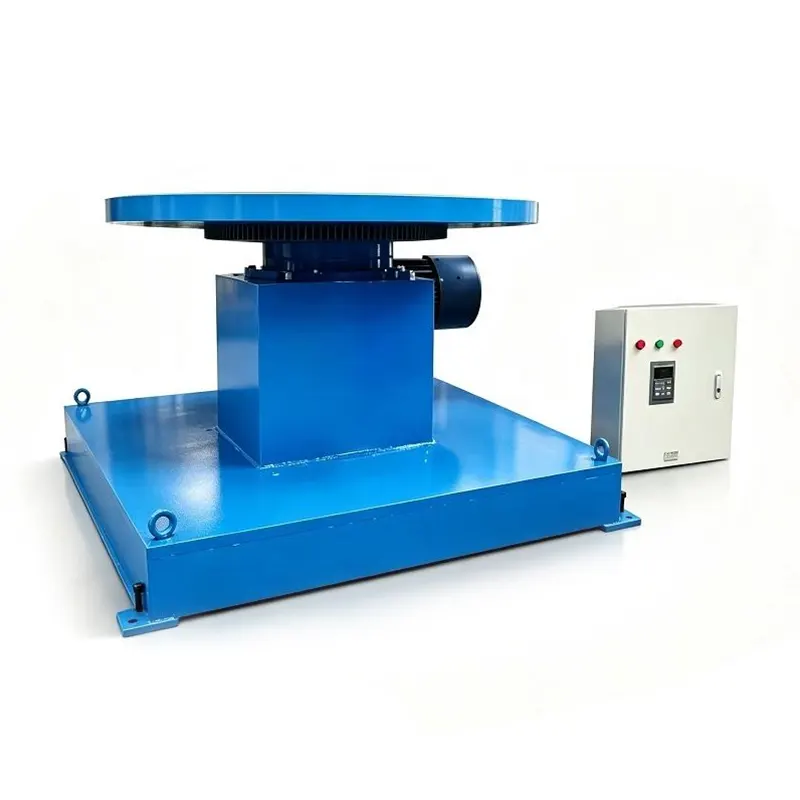

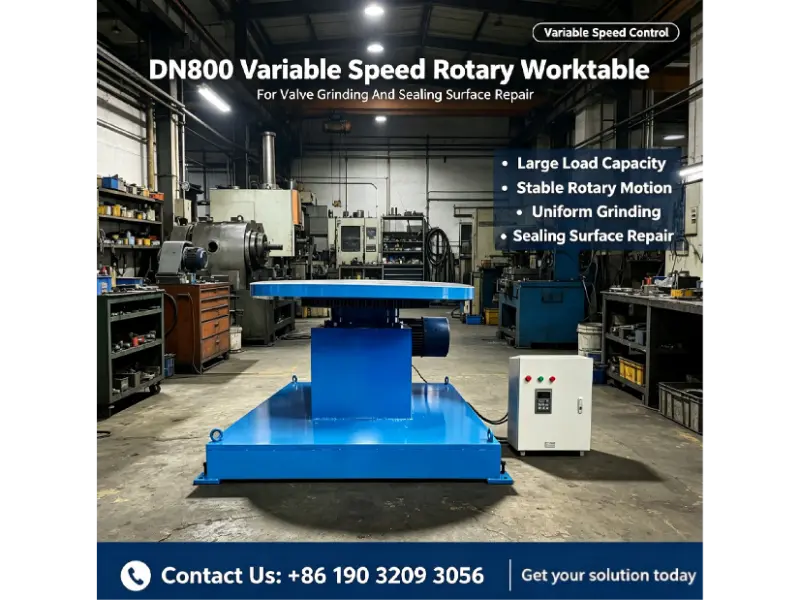

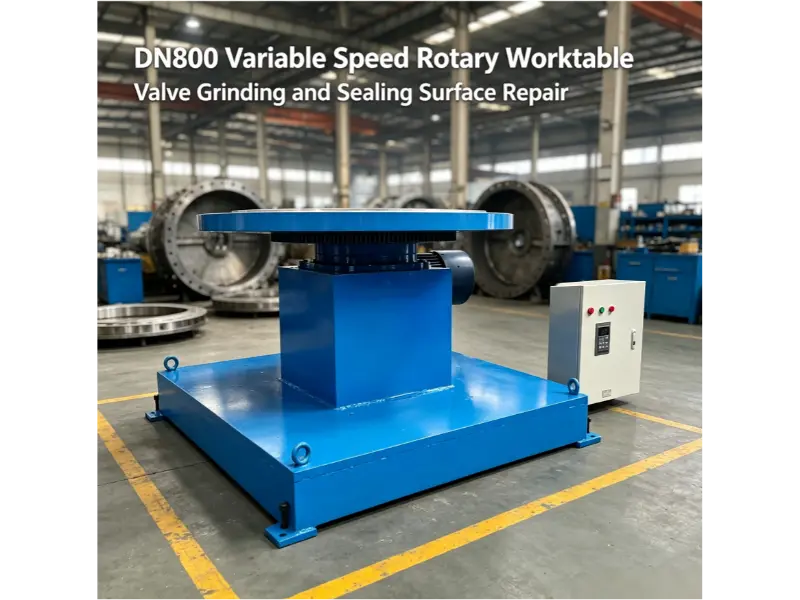

DN800 Variable Speed Rotary Worktable For Valve Grinding

This DN800 Variable Speed Rotary Worktable For Valve Grinding can bear large valve discs and valve bodies, realizing uniform and stable rotary motion, and cooperate with grinding heads to complete uniform circumferential grinding operation. Equipped with frequency conversion speed regulator, the rotating speed can be adjusted on demand, ensuring uniform grinding texture and consistent precision on the sealing surface. The overall structure is sturdy with strong load-bearing capacity, compatible with various large-diameter valve grinding machine models. It can significantly improve grinding efficiency and sealing surface processing quality, facilitating the overall precision repair of valve sealing surfaces.

Fixed basic parameters extracted from picture text:

● Applicable matching caliber: DN800

● Overall dimension: 1200×1200×660mm

● Total machine weight: 1.5 tons

● Rated power: 5.5 KW

Industry Common Pain Points & Targeted Solutions

3.1 Universal Pain Points in Large Valve Sealing Surface Grinding Industry

At present, enterprises engaged in power, petrochemical and pipe network large valve renovation and maintenance mainly face three prominent pain points during sealing surface grinding processing:

1.Manual auxiliary rotation is unstable and labor-intensive: Without professional rotary positioning workbench, workers need to manually push and rotate heavy large valve bodies during grinding. The rotating speed is uneven, resulting in inconsistent grinding depth, chaotic surface texture, and extremely high physical consumption for operators.

2.Fixed-speed rotation cannot adapt to diversified grinding processes: Traditional non-adjustable speed rotating platforms have single rotating speed. Rough grinding, fine grinding and polishing procedures require different linear speeds, fixed speed cannot meet technological requirements, which restricts the final finish of sealing surfaces.

3.Poor load stability during heavy workpiece processing: Large DN800 valve bodies and gate plates are heavy. Ordinary simple rotating brackets are prone to shaking and deflection under heavy load during operation, causing grinding deviation and scrapped workpieces, and the compatibility with various grinding hosts is poor.

3.2 Targeted Optimization Solutions of This Equipment

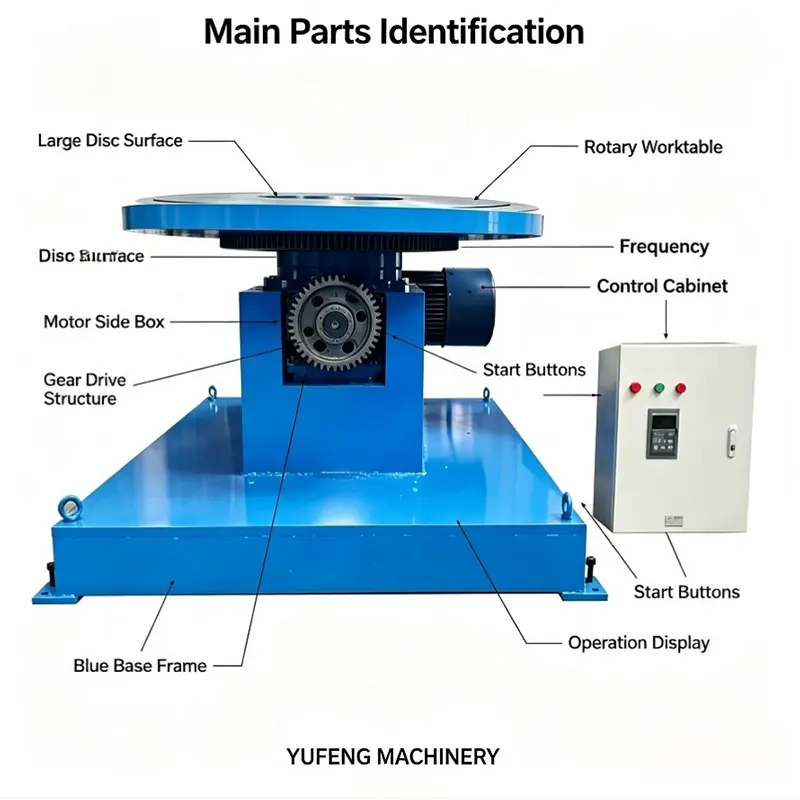

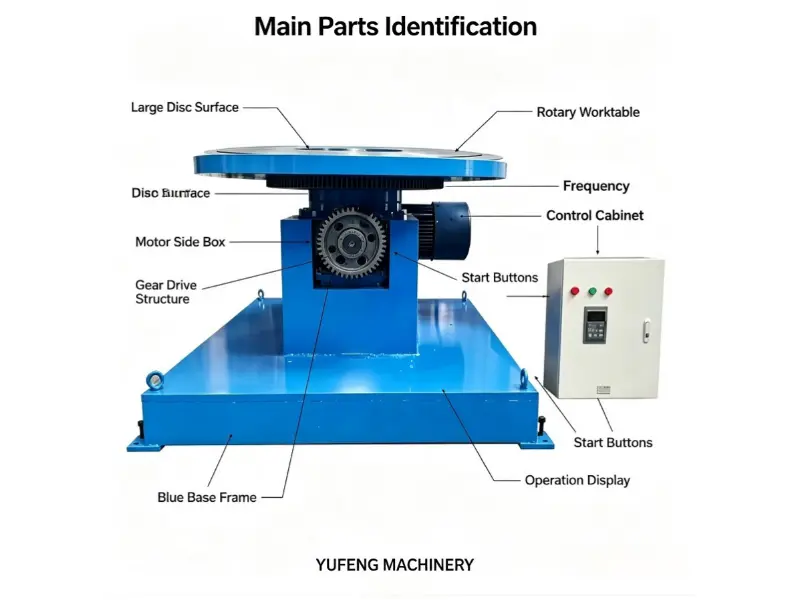

To solve the above three major bottlenecks affecting valve grinding precision, processing efficiency and operation convenience, the DN800 Variable Speed Rotary Worktable For Valve Grinding carries out targeted structural and electrical configuration upgrading: Labor & precision optimization: Adopt heavy-duty cast base + large-diameter slewing bearing transmission structure, the workpiece is placed stably on the rotary table, the equipment drives automatic constant-speed rotation instead of manual pushing. The rotating speed is continuous and uniform all the time, the circumferential grinding track is neat, the sealing surface texture is consistent, completely eliminating the precision error caused by artificial uneven rotation.

Process adaptability optimization: Equipped with independent frequency conversion speed control cabinet, stepless speed regulation can be carried out according to rough grinding, fine grinding, polishing different working procedures. The whole machine has super strong load-bearing performance, stable operation without shaking under full load; reserved standard connecting interface, which can be perfectly matched with most models of large valve grinding machines on the market, widely applicable for various valve sealing surface repair work.

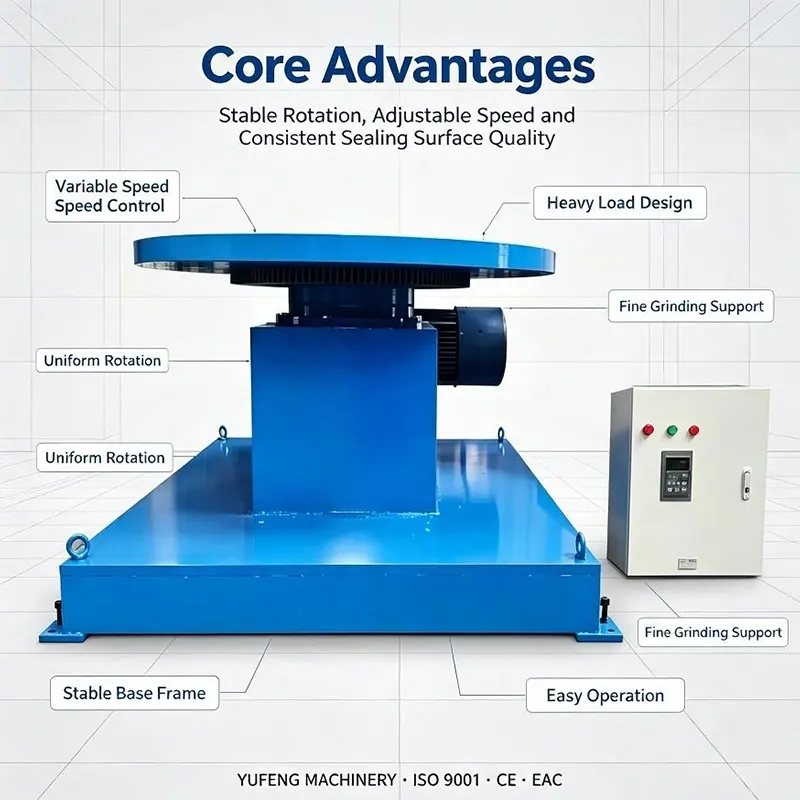

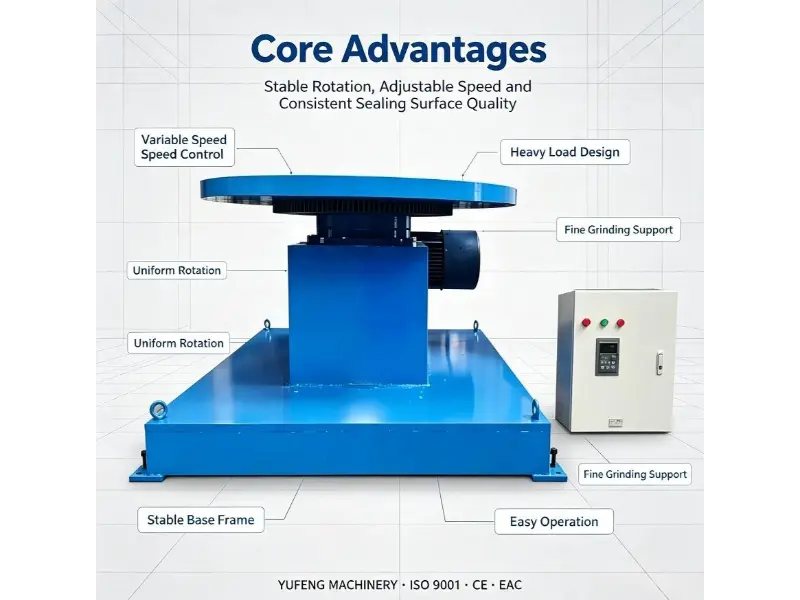

Seven Core Differentiated Advantages

1.Professional Supporting Design for Large Valve Grinding Equipment, Strong Compatibility The core competitive advantage of DN800 Variable Speed Rotary Worktable For Valve Grinding: it is customized as a supporting auxiliary equipment for large-caliber valve grinding machines, reserved universal assembly interface, can be matched with various types of valve sealing surface grinding hosts, and is an indispensable core auxiliary tool for valve maintenance and refurbishment workshops.

2.Frequency Conversion Stepless Speed Regulation, Adapt to Full Grinding Process Independent frequency converter control system, rotating speed can be arbitrarily adjusted from low speed to high speed. Different rotating speeds can be set for rough grinding material removal, fine grinding flattening and finish polishing respectively, which scientifically matches the processing technology and greatly improves the surface finish of valve sealing surface.

3.Heavy-duty Rigid Body Structure, Stable Operation Under Full Load Thickened integrated steel base + large slewing ring rotary support, the whole machine has strong rigidity and anti-vibration performance. Even when bearing the maximum load of DN800 large valve body, there is no jitter, deflection or abnormal noise during rotation, ensuring high-precision grinding effect.

4.Automatic Rotary Replacement of Manual Operation, Save Labor Cost Completely replace the traditional manual pushing rotation mode, one worker only needs to fix the workpiece and operate the grinding head, no need to consume physical strength to turn the valve body back and forth, greatly reduce labor intensity, single-person work efficiency is increased by more than 80%.

5.Uniform Circumferential Grinding, Consistent Sealing Surface Precision The rotary table runs at a constant linear speed, the grinding head cooperates with the rotary workpiece to form regular and uniform circular grinding lines on the sealing surface. The flatness and roughness of the whole sealing surface are consistent, effectively improving the air tightness of the refurbished valve after assembly.

6.Independent Split Control Cabinet, Safe and Convenient Operation The speed control electric cabinet is separated from the main body of the rotary table, the button operation is simple and intuitive, with start-stop, emergency stop, positive and negative rotation functions. The electrical system has overload, overcurrent protection, safe operation and low failure rate.

7.Compact Overall Layout, Convenient Movement and Placement The overall size is compact and reasonable, the bottom is reserved with lifting lugs and mounting foot holes, which is convenient for workshop fixed installation or mobile switching stations. It occupies small space and is suitable for various sizes of valve maintenance workshops.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Power Plant Equipment Maintenance Workshop: Supporting use for large pipeline gate valve sealing surface grinding and renovation.

2.Petrochemical Refining Enterprise Maintenance Department: Matching grinding equipment for process pipeline valve overhaul repair.

3.Municipal Water Supply Pipe Network Company: Large-diameter pipeline valve regular maintenance and sealing surface repair.

4.Professional Valve Remanufacturing Factory: Batch refurbishment and precision grinding of recycled industrial large valves.

5.Natural Gas & Coal Chemical Pipeline Enterprises: Valve anti-corrosion and sealing performance restoration processing.

6.Mechanical Equipment Repair Factory: Customized auxiliary rotary fixture for all kinds of circular workpiece plane grinding.

7.Valve Technology R&D Institute: Sealing surface processing process test and sample preparation.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional mechanical engineers conduct one-on-one communication, confirm the matched grinding machine model, maximum workpiece weight, required rotating speed range and processing technology requirements; provide installation layout drawing, free workpiece running test verification service, issue complete supporting scheme and formal quotation within 24 working hours.

In-sales Production & Export Packaging Delivery

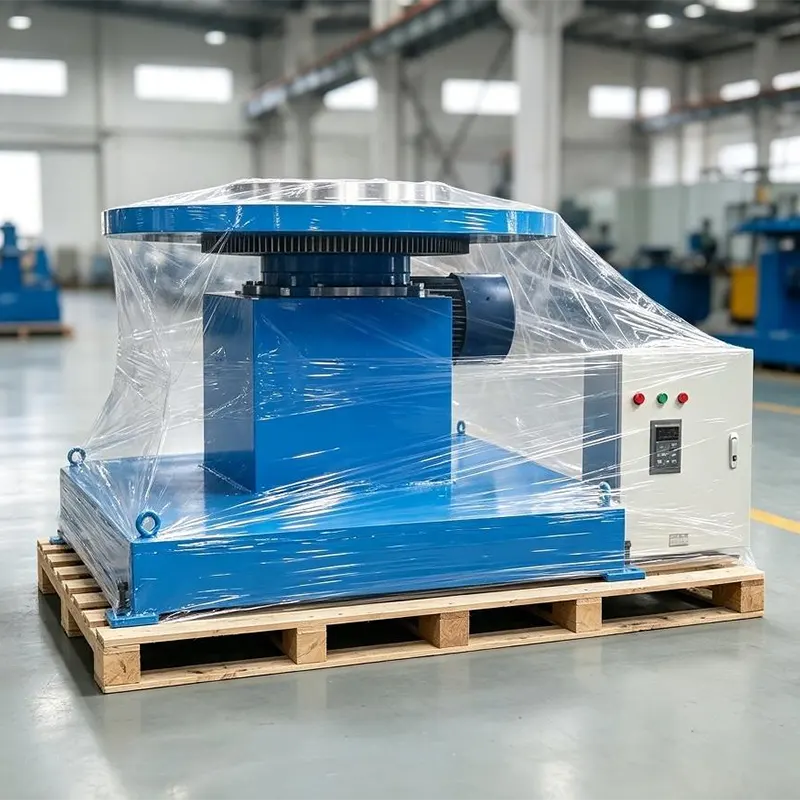

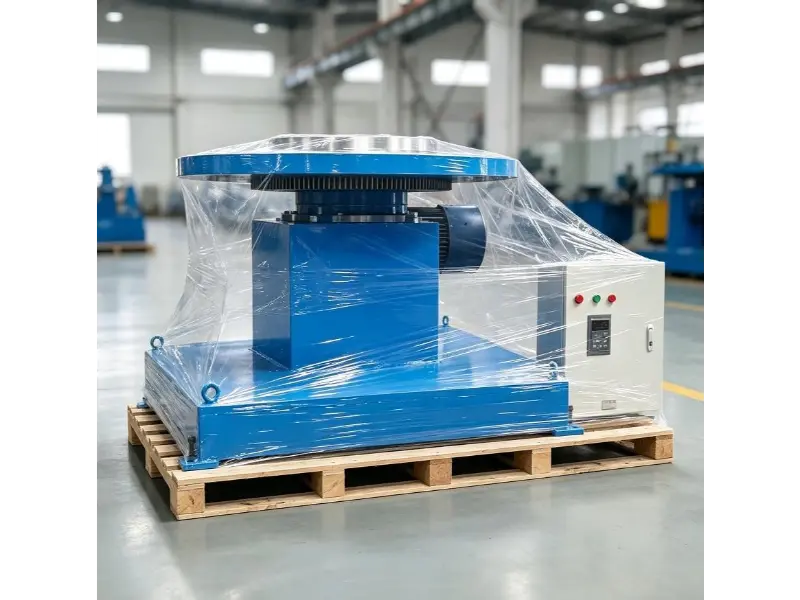

The whole production process is tracked by real-time video; no-load operation test and load rotation test will be carried out before delivery to ensure stable speed and no shaking. Export products adopt shockproof solid wooden case reinforced packaging, equipped with bilingual operation manual, electrical schematic diagram and complete customs clearance certification documents.

After-sales Global Warranty Service

Core components such as drive motor, slewing bearing and frequency converter enjoy 24-month global warranty, non-artificial damaged spare parts are replaced free of charge during the warranty period. We provide remote video parameter debugging and fault troubleshooting all year round, coordinate overseas agents for on-site installation guidance; lifelong supply of conventional wearing parts and free long-term grinding process technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: What maximum specification valve can this worktable bear?

A1: The standard model is specially designed for DN800 caliber large valves and gate plates, which can stably bear the weight of complete valve bodies for grinding operation.

Q2: Can the rotation speed be adjusted arbitrarily?

A2: Yes, it is equipped with frequency conversion speed regulation system, stepless adjustment of rotating speed is supported, which can adapt to rough grinding, fine grinding, polishing different processing procedures.

Q3: Can it be matched with other brands of valve grinding machines?

A3: The equipment reserves universal connecting and fixing interfaces, with strong versatility, which can be adapted to most mainstream large valve grinding equipment on the market.

Q4: Can CE certification be handled for overseas export business?

A4: We can complete EU CE mechanical safety rectification, configure export special voltage and multilingual control panel, issue official CE certificate for overseas customs clearance and project acceptance audit.

Q5: Standard production delivery cycle?

A5: Standard configuration delivery cycle: 20 working days; customized reinforced load-bearing version: 28 working days.

Purchase Guidance

Please inform your matched grinding equipment model, workpiece size and processing technological requirements, we will provide detailed supporting configuration scheme and preferential bulk procurement quotation within 24 hours, supporting long-term framework cooperation orders for valve maintenance enterprises.
