Hydraulic PTFE Lined Valve Press for Lining Processing

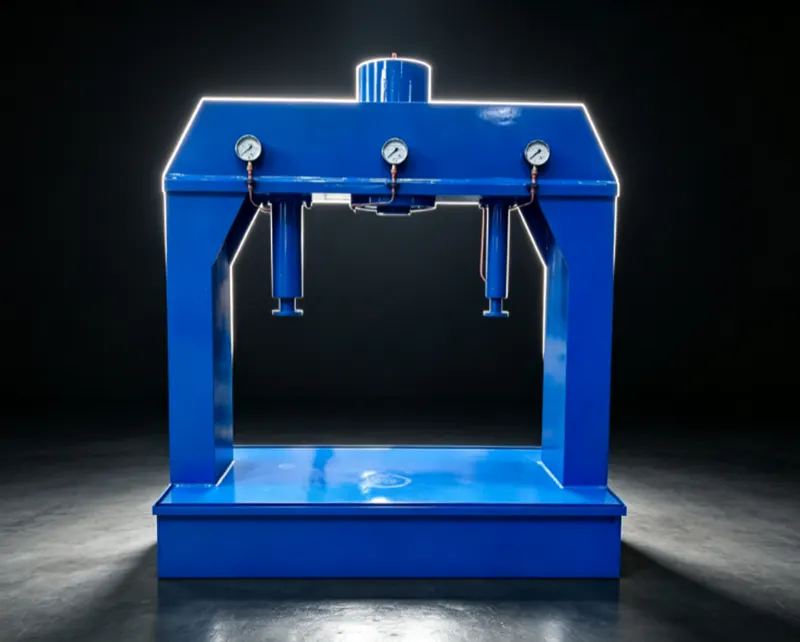

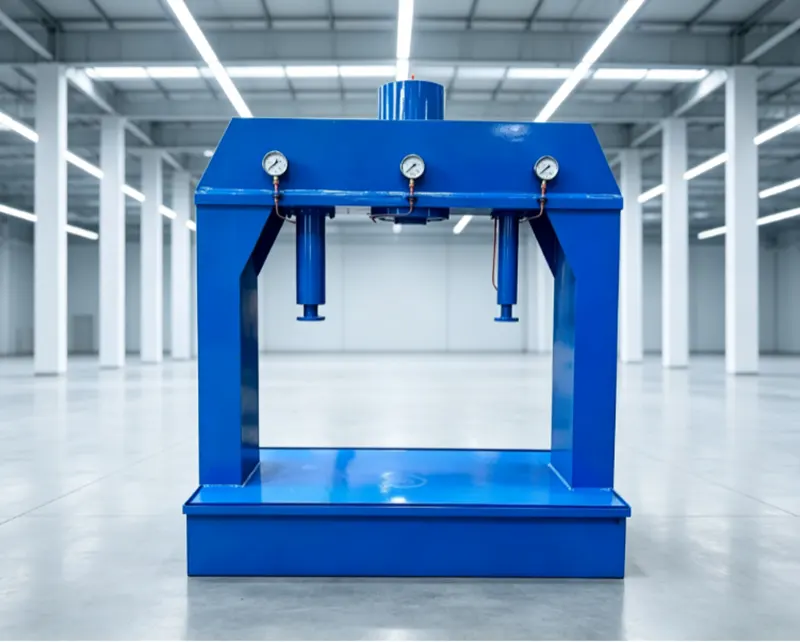

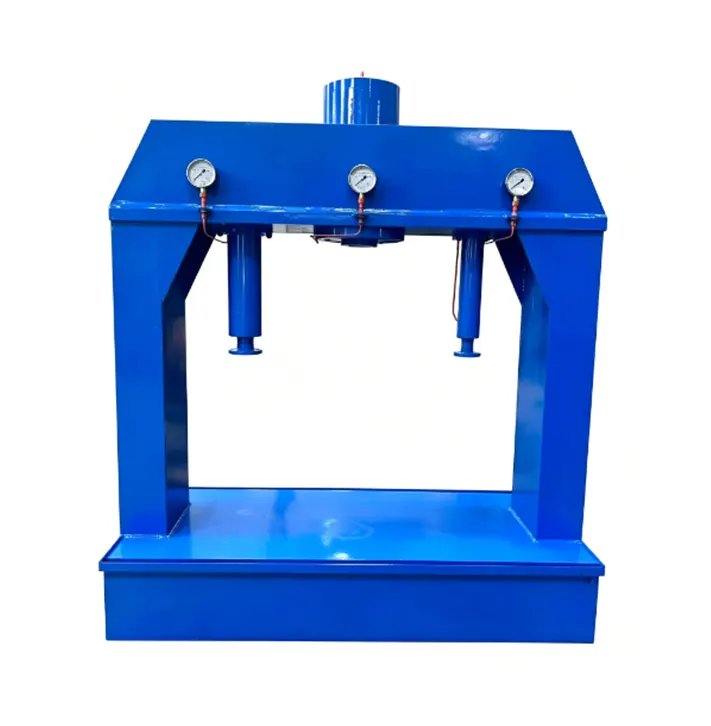

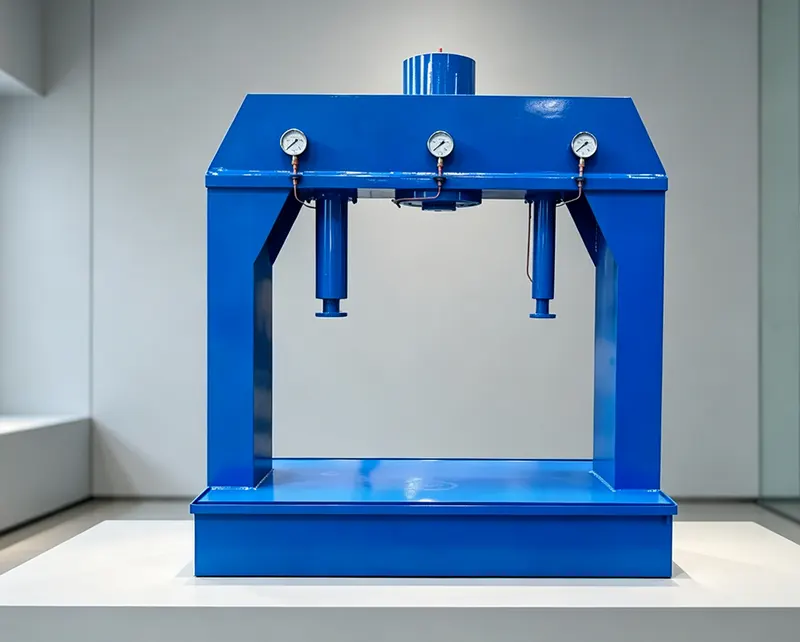

The Hydraulic PTFE Lined Valve Press for Lining Processing is a frame-type multi-cylinder hydraulic press specially developed for lining installation, flange assembly, valve body press fittings and maintenance disassembly of lined anti-corrosion valves, butterfly valves and large chemical pipeline valves. It adopts a heavy integral gantry welded frame structure, equipped with central main hydraulic cylinder and auxiliary side hydraulic cylinders for balanced synchronous pressure application, with independent pressure gauges for real-time pressure value monitoring, to ensure uniform press-fitting force and prevent liner deformation and flange misalignment.

The hydraulic system supports stepless pressure regulation and pressure holding function, adapting to PTFE lining press-in, flange bolt pre-assembly, valve body repair disassembly and other multi-scene processes, greatly improving lining assembly yield and valve overall assembly consistency. The overall structure is corrosion-resistant painted, with a liquid collection base to contain hydraulic oil leakage and residual cleaning fluid, suitable for 24-hour continuous use in anti-corrosion valve workshops and chemical equipment valve production bases, conforming to chemical valve manufacturing process specifications and global pressure vessel safety standards.

This Hydraulic PTFE Lined Valve Press for Lining Processing can be matched with different mold fixtures for various lining valve sizes and lining materials, with optional PLC constant pressure control system and digital pressure display. This gantry hydraulic valve assembly press supports global voltage configuration and CE safety modification, serving LNG, chemical, chlor-alkali, desulfurization and other corrosive medium pipeline valve production projects.

Core Structural & Process Features

The Hydraulic PTFE Lined Valve Press for Lining Processing adopts Balanced Multi-cylinder Synchronous Hydraulic System: Central main cylinder + dual side auxiliary cylinders work synchronously, distributing press force evenly across the valve body and lining, avoiding local stress concentration, preventing PTFE lining distortion, wrinkling or cracking during press fitting, ensuring uniform interference fit for long-term anti-corrosion lining stability. Three independent pressure gauges visualize real-time pressure values for full process pressure monitoring.

Heavy Gantry Welded Frame Structure: Overall thick steel plate welded gantry frame with rigid rectangular structure, resisting heavy static hydraulic load and repeated cyclic pressure impact, no frame deformation under rated maximum pressure, long-term dimensional stability and structural safety, designed for continuous shift production.

Stepless Adjustable Constant Pressure Hydraulic Control: Proportional hydraulic valve pressure regulation, configurable dwell time and constant pressure holding cycles, adapting to slow liner insertion processes to avoid impact loading damage, ensuring precise interference fit for PTFE, UHMWPE and other polymer lining materials.

Integrated Liquid Collection Base Platform: Built-in bottom liquid collection tank structure, preventing hydraulic oil spillage and residual solvent contamination, easy daily cleaning, improving anti-corrosion workshop environmental hygiene and reducing hydraulic system failure risk caused by pollution.

Versatile Quick-change Fixture Interface: Universal mold mounting platform, fast mold changeover for different nominal diameter lined valves, butterfly valves and flange assemblies, supporting flexible batch production of multiple valve models in one workshop, reducing production line changeover downtime.

Safety Overload Pressure Protection: Built-in hydraulic overload relief valve, automatically limiting maximum system pressure, preventing overpressure damage to valve liners, molds and main frame, complying with industrial hydraulic machinery safety standards, eliminating overpressure operation risks.

Global Standard Adaptation & Modular Configuration: Optional PLC constant pressure control, digital pressure recording, multilingual control panel, export voltage and CE certification modification, compatible with ANSI, DIN, GOST lined chemical valve specifications, supporting long-term smart valve factory production line integration.

Core Technical Parameters

Application Scenarios & Industry Matching

Anti-corrosion Lined Valve Production: PTFE/F46/UHMWPE lined ball valves, butterfly valves, diaphragm valves for chemical, chlor-alkali, acid & alkali pipeline projects, lining press-fitting and shaping mass production.

Large Flange Valve Pre-assembly: Large industrial flanged valves, pipeline valves flange pre-tightening and positioning press fitting before formal bolt assembly.

Valve Repair & Overhaul Workshop: Disassembly, lining replacement and re-assembly of old lined valves, chemical pipeline maintenance and regional valve service centers.

EPC Chemical & Energy Projects: LNG, desulfurization, sewage, fine chemical corrosive medium pipeline valve prefabrication production lines, overseas turnkey valve manufacturing workshops.

Material Research & Sample Verification: New lining material interference fit process verification, prototype valve development and process parameter validation.

After-sales & Global Service

Pre-sales: Valve process engineers confirm lining material, interference fit parameters, valve dimensions and pressure requirements, provide layout drawings and process guidance, support sample press-fitting verification before mass orders for the Hydraulic PTFE Lined Valve Press for Lining Processing.

In-sales: Full load pressure test before shipment, formal factory inspection report, heavy export wooden case packaging with shockproof & moisture-proof processing, complete hydraulic system inspection.

After-sales: 24-month warranty for hydraulic main cylinders, hydraulic power units and core control components, global remote technical guidance, universal hydraulic spare parts specification, multilingual operation manuals, and overseas agent field maintenance support, lifelong hydraulic system maintenance consultation.

FAQ

Q1: Can the machine be customized for specific lined valve interference fit requirements?

A1: Yes, the YFJX-F Lined Valve Hydraulic Press can adjust hydraulic pressure range, dwell cycle and fixture size to match different PTFE lining press-fit interference parameters.

Q2: Is the hydraulic system easy to maintain locally overseas?

A2: Standard international hydraulic components are adopted, which can be purchased locally, and we also provide spare parts delivery service.

Q3: Does the gantry frame have overload safety protection?

A3: Equipped with built-in hydraulic overload relief valves, with upper pressure limit protection to prevent overpressure damage to liners and molds.

Q4: Can we upgrade to PLC automatic constant pressure control?

A4: Yes, we provide PLC constant pressure holding and pressure data recording upgrade solutions.

Q5: What is the delivery cycle?

A5: Standard models 30 days, customized tonnage and fixture models 35-40 days.

Purchase Guide

Please provide the maximum valve diameter, lining material, required press force and daily production volume, and specify regional voltage and certification requirements (CE etc.). Our engineering team will provide a complete process solution and formal quotation within 24 working hours, and support annual framework orders for lined valve factories and overseas chemical EPC projects.
