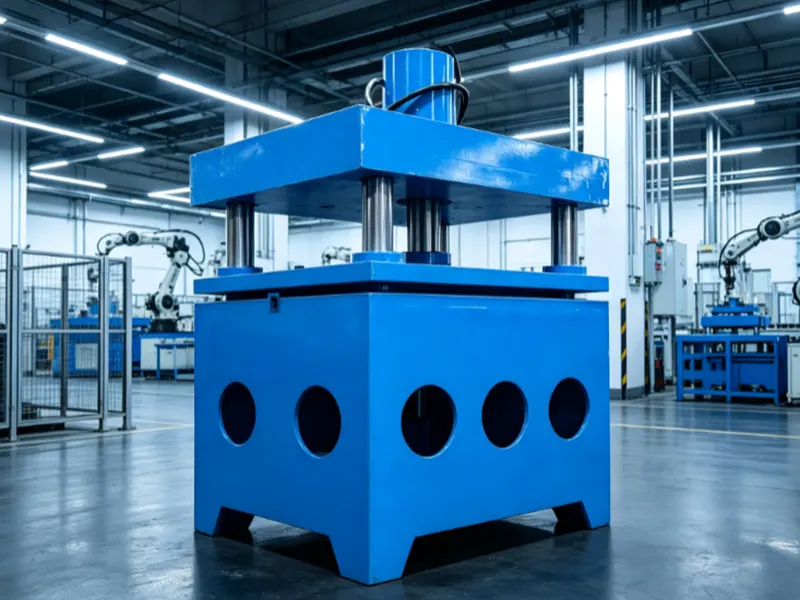

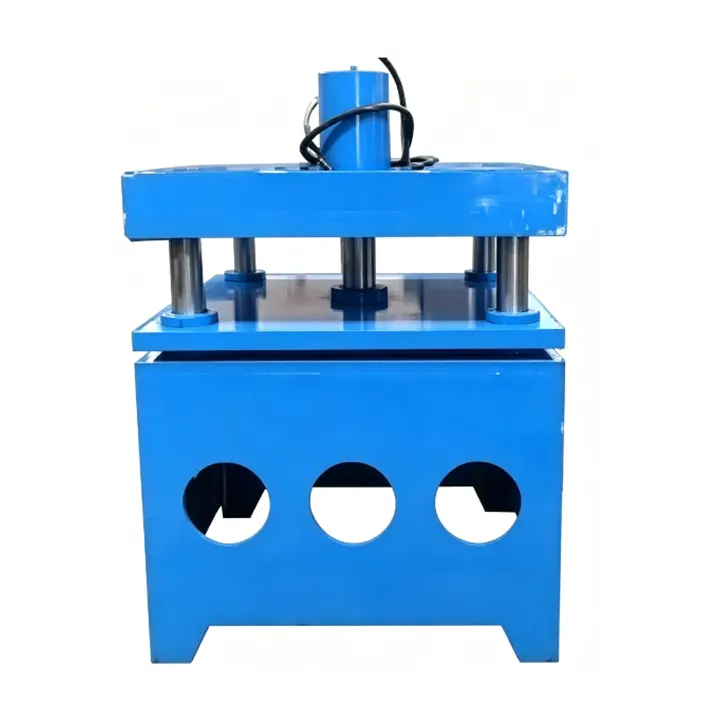

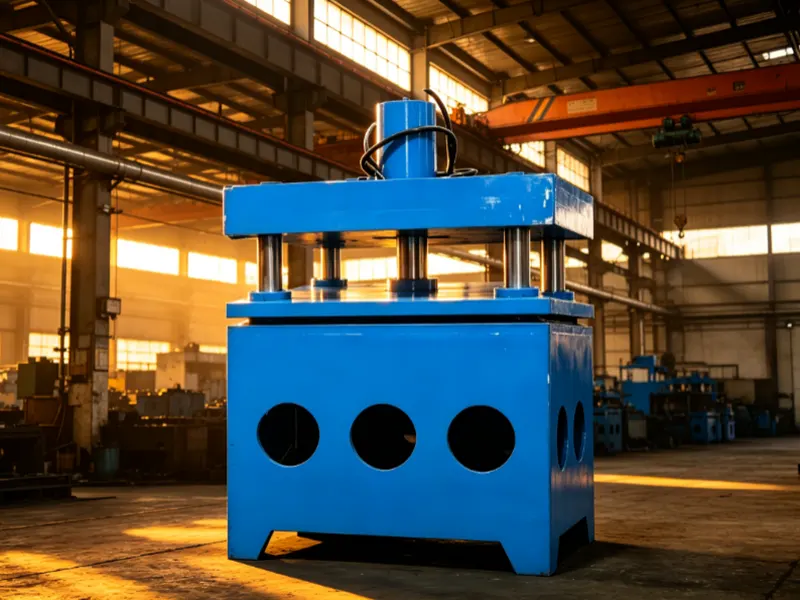

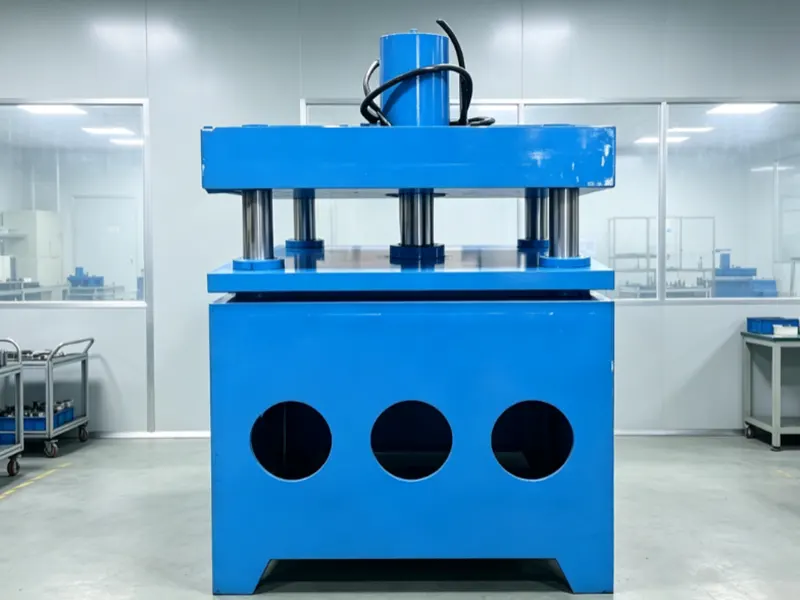

Four Column Vertical Hydraulic Press For Valve Production

The Four Column Vertical Hydraulic Press For Valve Production is a vertical four-post hydraulic machine dedicated to valve shell hydrostatic pressure testing, seat tightness testing and factory routine proof pressure inspection for industrial flanged valves, ball valves and gate valves. It features a symmetrical four-column straight side rigid structure with precise guide columns to ensure parallel platen movement, eliminating frame deflection during long-duration high-pressure holding cycles. The built-in high-precision pressure sensor and pressure gauge enable real-time pressure monitoring and constant pressure holding, performing shell strength hydraulic proof tests and seat leakage tightness tests in accordance with international valve inspection specifications.

The central main hydraulic cylinder applies uniform clamping force to fix the valve body, while the integrated hydraulic station provides stable pressure output, supporting long-duration pressure holding, automatic pressure compensation and leakage observation verification. The base is reserved for multi-specification valve fixture installation, adapting to different nominal diameters and pressure class valves, and can be matched with PLC pressure data recording systems for full test data traceability, suitable for valve finished product inspection stations, third-party valve testing institutions and valve smart factory quality inspection lines.

This four-column straight side hydraulic valve test press can be configured with multilingual HMI, automatic pressure cycle control and data export function, and supports CE safety certification modification for global valve industry inspection applications.

Seven Core Product Features

Four-column Straight Side Rigid Guide Frame: Symmetrical four vertical guide columns with precision linear guide structure, ensuring the upper beam moves vertically in parallel under high pressure, preventing uneven stress and frame deflection during long pressure-holding cycles, maintaining stable clamping alignment for repeated batch valve testing.

Central Main Cylinder Uniform Clamping System: Central vertical main hydraulic cylinder provides balanced clamping force, fixing valve flanges firmly without localized stress distortion, reducing valve body deformation during high-pressure hydrostatic testing and ensuring accurate leak test results.

High-precision Constant Pressure Monitoring & Holding System: Equipped with precision pressure transmitters and analog pressure gauges, supporting closed-loop constant pressure control, automatic pressure compensation, and fixed-duration pressure holding, complying with API 598 and ISO 5208 valve pressure test standards for formal third-party inspection.

Integrated Hydraulic Power Station: Built-in compact hydraulic power unit with low-noise hydraulic pump, stable pressure output, smooth pressure rise and pressure maintenance, reducing hydraulic fluctuation interference during leak inspection, improving test repeatability and accuracy.

Modular Multi-specification Valve Fixture Platform: Universal base fixture mounting plate, supporting quick-change fixtures for ANSI/GB/DIN standard flanged valves of different sizes, realizing flexible batch inspection of mixed valve models and shortening valve model changeover time.

Traceable PLC Digital Test System (Optional): Optional touch screen PLC control system, automatic test cycle, pressure curve recording, report generation and data export, realizing full digital quality inspection records, adapting to smart factory MES traceability systems and third-party inspection certification requirements.

Global Compliance & Safe Operation Design: Compliant with industrial hydraulic safety standards, equipped with safety limit protection and emergency stop function, optional CE modification and multilingual interface, supporting export voltage configuration, applicable to global valve EPC project quality inspection workshops and overseas valve factory QA lines.

Basic Technical Parameters

Typical Application Fields

Valve Factory Finished Product QA Inspection Lines: Routine hydrostatic shell test and seat tightness inspection for mass-produced ball valves, gate valves, butterfly valves before delivery.

Third-party Valve Inspection & Certification Labs: Formal valve type test, periodic re-verification, API/ISO standard third-party pressure inspection and certification.

Energy & Pipeline EPC Prefabrication Workshops: Pre-installation pressure verification for long-distance pipeline valves, LNG and hydrogen energy high-pressure valve pre-commissioning inspection.

Valve Aftermarket Service & Maintenance Centers: Overhaul pressure verification for repaired pipeline valves, on-site valve maintenance re-inspection.

Material & R&D Valve Prototype Verification: New material valve prototype pressure proof testing, R&D valve cycle pressure fatigue testing and performance validation.

After-sales & Global Technical Service

Pre-sales: Valve inspection process engineers confirm valve size, pressure class, test standard (API/ISO etc.) and pressure holding requirements, provide layout drawings and fixture design guidance, support sample pressure test verification.

In-sales: Full pressure cycle test before shipment, formal factory inspection report, export plywood packaging with shockproof & moisture-proof processing, complete hydraulic system documentation.

After-sales: 24-month warranty for hydraulic main cylinder, hydraulic power unit and core control components, global remote technical guidance, universal hydraulic spare parts, multilingual operation manuals, and overseas agent field service support, lifelong hydraulic system maintenance consultation.

FAQ

Q1: Can it do API 598 formal valve tightness testing?

A1: Yes, the Four Column Vertical Hydraulic Valve Test Press can configure constant pressure control and data recording system to fully meet API 598 and ISO 5208 valve pressure test standards for official certification testing.

Q2: Can the fixture adapt to ANSI, DIN, GOST standard flanged valves?

A2: Yes, we provide customized quick-change fixture plates to match global standard flanged valve dimensions.

Q3: Does it have safety overload protection?

A3: Yes, it is equipped with hydraulic overload relief valve and mechanical limit safety protection to avoid overpressure damage during valve testing.

Q4: Can we upgrade to automatic PLC test cycle control?

A4: Yes, we offer PLC automatic constant pressure test cycle upgrade with pressure curve report export function.

Q5: What is the standard delivery cycle?

A5: Standard four-column model: 30 days; special high-pressure & large-size customized models: 35-40 days.

Purchase Information

Please provide valve nominal size, pressure class, test standard, maximum test pressure and daily inspection capacity, plus regional voltage and certification requirements (CE etc.). Our engineering team will provide a complete valve pressure inspection solution and formal quotation within 24 working hours, supporting annual framework orders for valve factories and global energy pipeline EPC projects.
