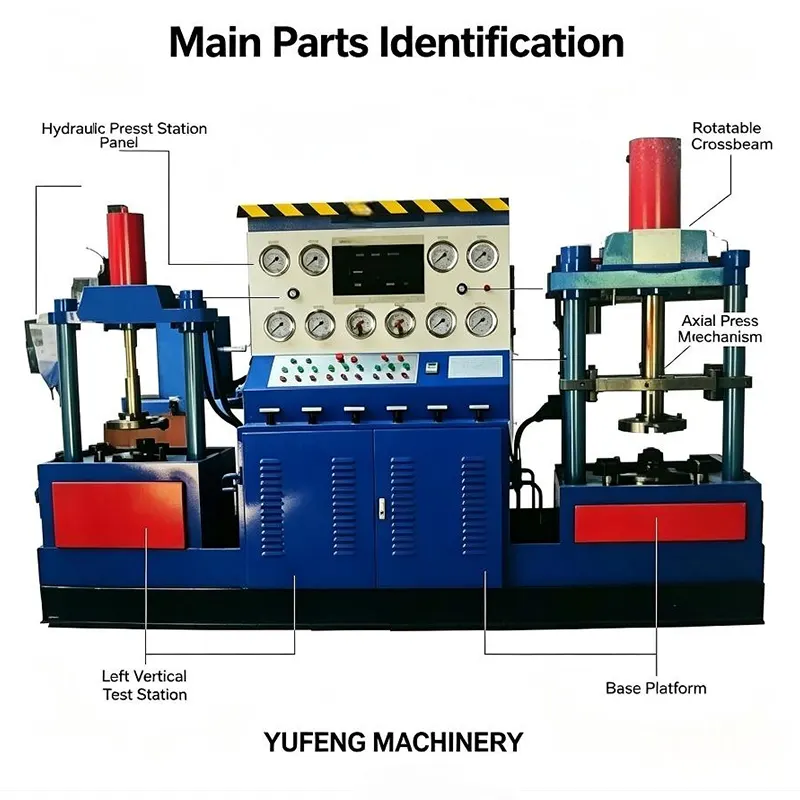

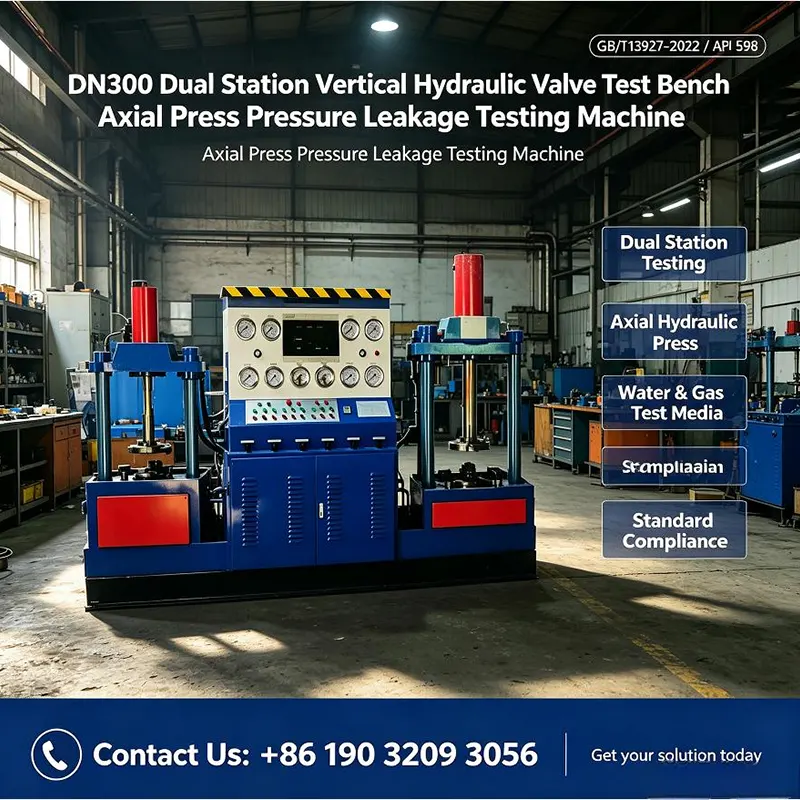

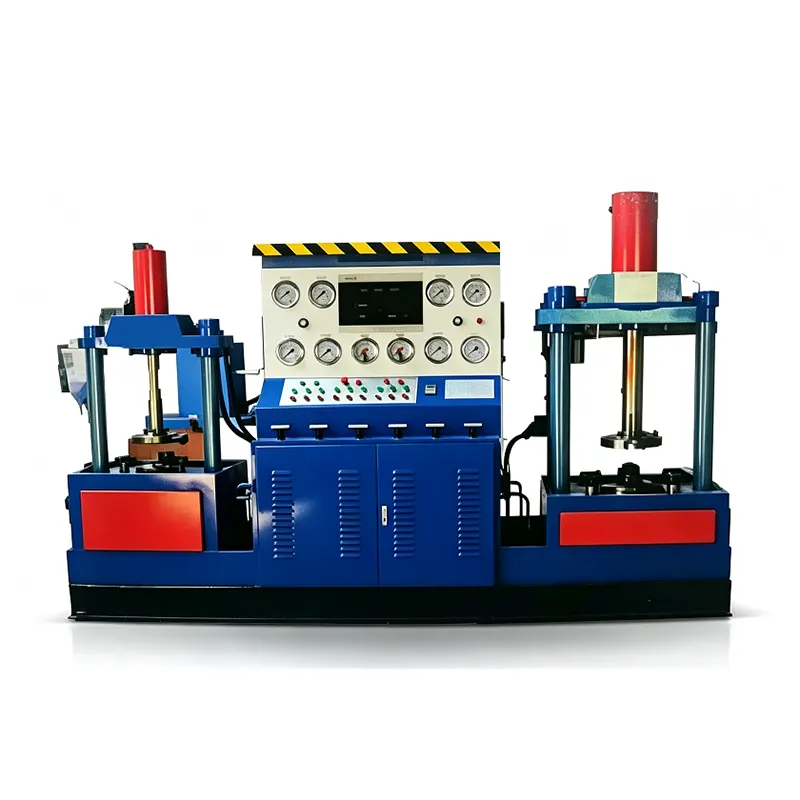

Dual Station Integrated Vertical Hydraulic Axial Press Valve Test Bench

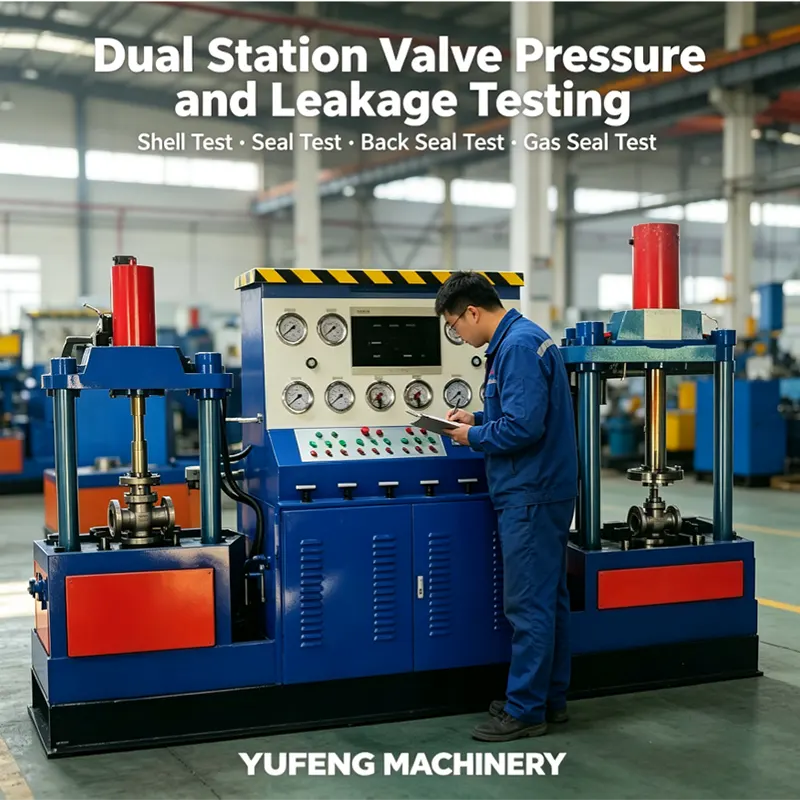

This Dual Station Integrated Vertical Hydraulic Axial Press Valve Test Bench is applicable to screwed, welded and flanged gate valves, globe valves, check valves, ball valves and other valves, and can complete three core testing items: shell strength test, back seat test and air tightness test. The equipment adopts dual clamping structure combining jaw clamping and hydraulic cylinder axial pressing; the mold above the jaw is equipped with 90° rotation function, which greatly improves valve loading and unloading efficiency, and the clamping process has minimal external force impact on the tested valve, ensuring authentic and reliable test data.

The machine is standard equipped with low-pressure water pump, pressure instrument control system and circulating water tank; test media including water, air and kerosene can be selected by customers. Optional configurations include intelligent test data management system, hydraulic air cooling system and safety protection device. Test caliber and pressure can be customized according to customer production requirements.

Fixed basic parameters sourced from picture materials:

● Applicable caliber: DN15 ~ DN300

● Overall dimension: 3300×1200×2000mm

● Total machine weight: 4 tons

● Rated power: 5.25 KW

Industry Common Pain Points & Targeted Solutions

3.1 Core Existing Problems in Small & Medium Caliber Valve Testing

There are two widespread industry pain points in the current production and inspection of small and medium-sized valves:

First, single-station efficiency bottleneck: Most small valve test benches adopt single-station structure, with serial workflow of part replacement, clamping, pressure holding and unloading. The long idle waiting time leads to low daily inspection output per capita, which cannot match the delivery rhythm of mass production lines, and often delays delivery due to insufficient quality inspection capacity in peak seasons.

Second, clamping force interferes with test accuracy: Ordinary pressing structure has concentrated stress, and small-caliber thin-wall valves are prone to micro-deformation due to excessive clamping force, resulting in sealing surface dislocation and false judgment of qualified products; meanwhile, tooling loading and unloading is cumbersome, and multi-specification switching adjustment takes a long time, with poor flexible production adaptability.

3.2 Targeted Solutions of This Equipment

To thoroughly resolve the two major bottlenecks restricting the efficiency and precision of valve factory inspection, the Dual Station Integrated Vertical Hydraulic Axial Press Valve Test Bench carries out targeted structural optimization and functional upgrading aiming at the above industry pain points: For efficiency pain point: Adopt left and right dual-station independent parallel design. Two workstations can be clamped simultaneously and tested independently. While one station is in pressure holding process, the other station can complete part replacement and loading/unloading, with no idle waiting time. Batch inspection efficiency is increased by more than 80% compared with single-station equipment, perfectly matching the mass production quality inspection demand of small and medium-sized valves.

For accuracy and loading/unloading pain point: Adopt jaw positioning + cylinder pressing dual composite clamping with accurate positioning and uniform jacking force, which has minimal extra external force on the valve body and avoids clamping deformation of thin-wall valves. Matched with 90° rotation function of tooling, the operation space for valve loading and unloading is larger, assembly and disassembly are convenient, and multi-specification switching adjustment is fast, greatly shortening auxiliary working hours.

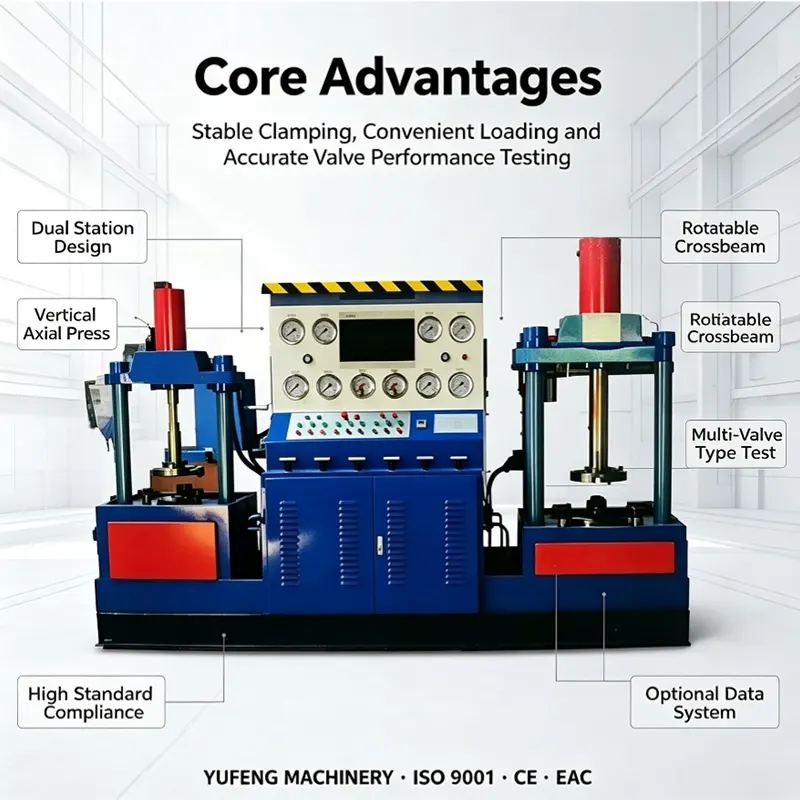

Seven Core Differentiated Advantages

1.Dual-station Parallel Operation, Batch Inspection Efficiency Doubled The core competitive advantage of Dual Station Integrated Vertical Hydraulic Axial Press Valve Test Bench: two sets of independent hydraulic and control systems for left and right stations, supporting simultaneous testing of two valves of different types and calibers, no mutual interference, which effectively solves the problem of low efficiency of single-station serial operation.

2.Dual Composite Clamping Structure, Minimal External Force Impact on Valves Dual clamping mode of jaw positioning and hydraulic cylinder axial pressing: the jaw realizes accurate centering and fixing, and the hydraulic cylinder provides uniform axial jacking force. The force is evenly distributed on the end face of the valve, which will not cause extrusion deformation of thin-wall small valves, and truly restores the stress state of the valve in actual pipeline operation.

3.90° Rotatable Tooling, Greatly Improving Loading & Unloading Efficiency The clamping tooling is designed with 90° manual rotation function. When loading and unloading workpieces, the tooling can be rotated to the side facing the operator, which is more convenient for hoisting and tightening operations, especially for small valves with frequent replacement, which significantly reduces the auxiliary time for loading and unloading.

4.One Machine Completes Three Major Tests with Strong Universality It can independently complete shell strength test, back seat test and air tightness test, and is compatible with screwed, welded and flanged valves. One equipment covers the full-item factory inspection of gate valves, globe valves, check valves and ball valves, eliminating the need for multiple testing equipment and saving workshop space and procurement cost.

5.Fully Compliant with Domestic and International Testing Standards All design and test indicators strictly comply with GB/T13927-2022 and API 598 valve testing specifications. The pressure control accuracy and pressure holding time meet the standard requirements. The test results are authoritative and credible, which can be used for factory delivery inspection and third-party quality certification support.

6.Integrated Vertical Layout, Small Occupation & Easy Installation All hydraulic station, control system and two test stations are integrated on one base frame. No on-site complicated assembly is required, and it can be put into use after connecting power supply and water source. The overall floor area is small, which is suitable for workshop transformation and limited-space production line layout.

7.Modular Optional Configuration, Flexible Customization on Demand Three optional upgrade modules are reserved: intelligent data management system (pressure curve recording, report export), hydraulic air cooling system (suitable for long-time continuous operation), safety protection device; test caliber, pressure grade and station spacing can also be customized according to actual production needs.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Small and Medium-sized General Valve Manufacturers: Batch offline delivery inspection of DN15-DN300 multi-type industrial valves.

2.Plumbing Valve & Sanitary Ware Factories: Full-item pressure test of household small valves and pipeline valves.

3.Petrochemical Supporting Valve Enterprises: Strength and sealing inspection of small process pipeline valves.

4.Valve Foreign Trade Export Enterprises: Finished product sampling inspection before delivery, meeting API standard export requirements.

5.Professional Valve Maintenance Workshops: Performance re-inspection after valve maintenance and refurbishment.

6.Colleges & Vocational Training Bases: Valve testing teaching demonstration and student practical training.

7.Valve R&D Departments: Prototype performance verification and sealing fatigue cycle test of new products.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional valve testing engineers conduct one-on-one communication to confirm valve types, caliber range, maximum test pressure and optional functional requirements; provide equipment foundation layout drawings and free valve sample pressure test verification service, and issue a complete customized testing scheme and formal quotation within 24 working hours.

In-sales Production & Export Packaging Delivery

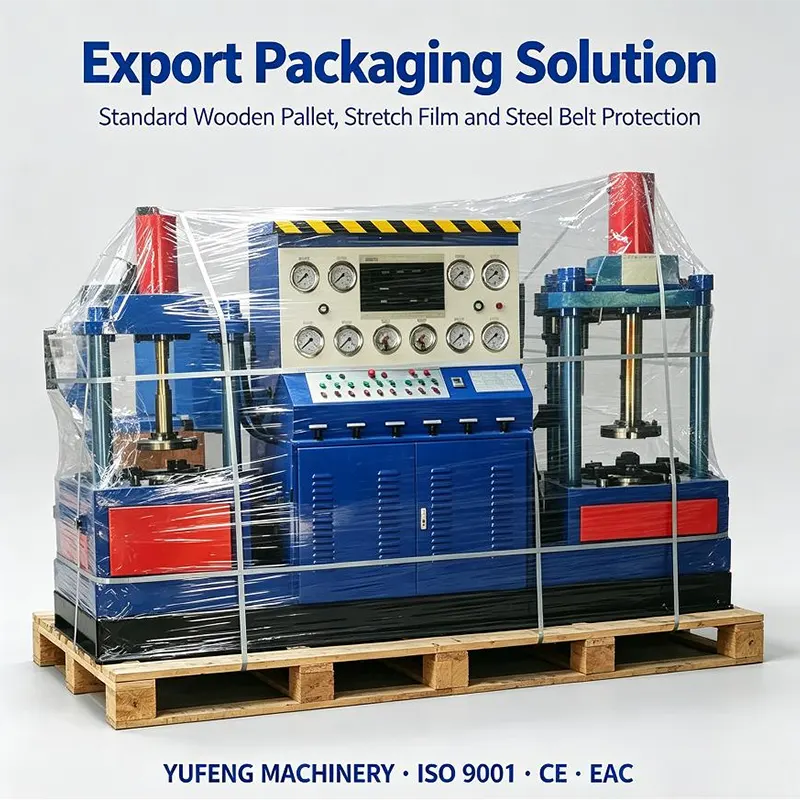

The whole production process is tracked by real-time video; full-load cyclic pressure test is carried out before delivery and all test data are archived. Export products adopt extra thick solid wood frame + steel belt shockproof and moisture-proof reinforced packaging, equipped with hydraulic schematic diagram, electrical wiring diagram, multilingual operation manual and full set of customs clearance certification documents.

After-sales Global Warranty Service

Core components such as hydraulic cylinders, booster pumps and PLC controllers enjoy 24-month global warranty, and non-artificial damaged spare parts are replaced free of charge during the warranty period. We provide remote online parameter debugging, complete operation video tutorials, and coordinate overseas local agents for on-site installation, commissioning and maintenance; we supply general hydraulic spare parts for life and provide free long-term valve pressure testing technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can two stations test different types and sizes of valves at the same time?

A1: The two stations adopt completely independent hydraulic and control systems, and pressure and stroke parameters can be adjusted separately, which supports simultaneous mixed testing of valves with different calibers and types, with extremely high production flexibility.

Q2: What is the function of 90° rotatable tooling?

A2: When loading and unloading valves, the tooling can be rotated 90 degrees to face the operator, which is more convenient for hoisting, placing and tightening operations, especially for frequent replacement of small valves, which can significantly shorten the auxiliary time of loading and unloading.

Q3: Can thin-wall small valves be clamped without deformation?

A3: It adopts dual composite clamping of jaw positioning and cylinder axial pressing, with uniform axial force, no lateral extrusion force, and minimal additional external force on the valve body, which can effectively avoid clamping deformation of thin-wall small valves.

Q4: Can CE certification be processed for overseas export?

A4: We can complete the full set of EU CE industrial machinery safety transformation, configure multi-language touch panel and 415V export voltage, and issue official CE certificates for overseas customs clearance and project acceptance audit.

Q5: What is the standard production delivery cycle?

A5: Standard configuration delivery cycle: 25 working days; customized ultra-high pressure intelligent upgraded version delivery cycle: 32 working days.

Purchase Guidance

Please inform us of applicable valve types, caliber range, maximum test pressure and export certification requirements. We will formulate a complete dual-station vertical multi-functional valve pressure testing scheme and preferential bulk procurement quotation within 24 hours, supporting annual framework cooperation orders for valve manufacturers and supporting projects of global pipeline EPC.
