Dual Station Screw Driven Vertical Axial Compression Valve Test Bench

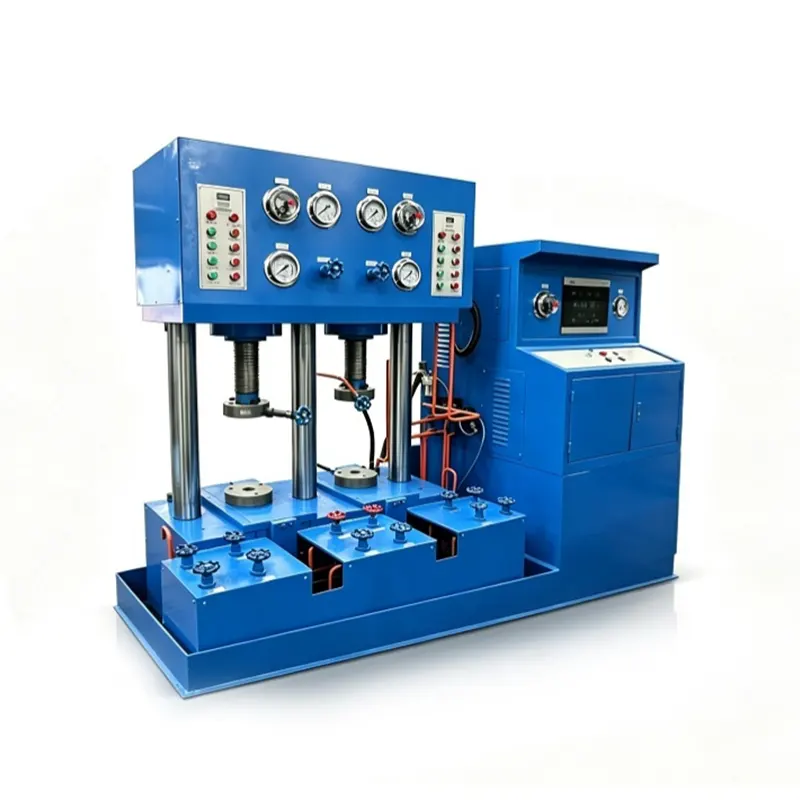

This Dual Station Screw Driven Vertical Axial Compression Valve Test Bench relies on precision screw mechanism to realize uniform and stable clamping. Two workstations can run simultaneously or independently to complete pressure testing for two valves at the same time, greatly improving overall detection efficiency. It is compatible with various medium and small-caliber flanged valves, capable of completing valve body strength test and bidirectional sealing pressure holding leakage inspection, fully complying with GB/T13927 pressure testing standard. The machine is equipped with precision pressure gauges and pressure holding control system, supporting two test media: water and air. Adopting vertical layout to save workshop floor space; screw clamping can maintain constant compression force permanently, which is ideal for batch air tightness and strength inspection of medium and small valves.

Fixed basic parameters extracted from picture content:

● Applicable caliber range: DN15 ~ DN1000

● Overall dimension: 2500×1200×1780mm

● Total machine weight: 3 tons

● Rated power: 5 KW

Industry Common Pain Points & Targeted Solutions

3.1 Existing Universal Pain Points in Medium & Small Caliber Flanged Valve Testing

At present, most valve manufacturers are faced with two prominent difficulties in daily finished valve inspection:

1.Low single-station testing efficiency: Traditional single-station valve test bench can only test one valve at a time. Procedures including loading, clamping, pressure holding, unloading are carried out in sequence, with a large amount of idle waiting time. When facing large batch delivery orders, the inspection capacity cannot keep up with production output, resulting in delayed delivery.

2.Unstable clamping force affects detection accuracy: Hydraulic quick-clamping equipment is prone to pressure fluctuation during long-time pressure holding; ordinary manual clamping cannot keep constant tightening force, which easily causes sealing deviation, leading to inconsistent test data and misjudgment of qualified products. Meanwhile, many equipment occupy too much workshop area, which is not conducive to compact production line layout.

3.2 Targeted Optimization Solutions of This Equipment

To solve the above two major pain points restricting factory inspection efficiency and test precision, the Dual Station Screw Driven Vertical Axial Compression Valve Test Bench carries out targeted structural design optimization: Efficiency optimization: Adopt independent dual parallel workstation layout, two stations can work synchronously or separately. While one station is conducting long-time pressure holding test, the other station can finish valve disassembly, assembly and clamping preparation without idle waiting time, and the overall batch detection efficiency is increased by more than 75% compared with single-station equipment.

Precision & space optimization: Precision screw transmission clamping structure can lock pressure permanently to maintain stable constant pressing force, no pressure attenuation in the whole pressure holding process, effectively guarantee the authenticity of sealing test data; compact vertical integrated layout greatly reduces floor occupation, perfectly adapting to small and medium-sized factories' limited workshop space layout demands.

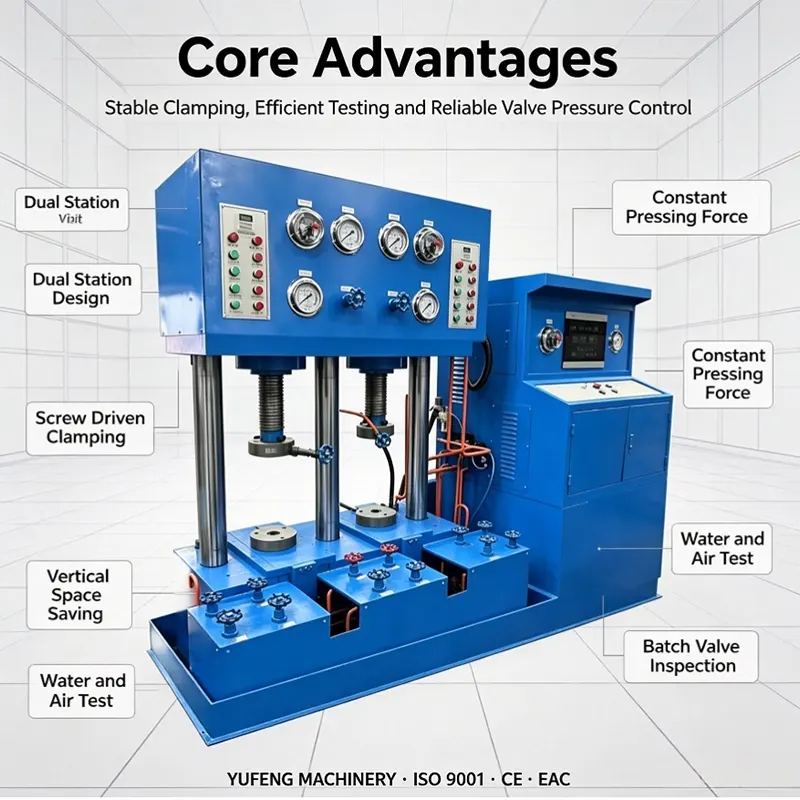

Seven Core Differentiated Advantages

1.Dual Independent Workstations, Greatly Boost Batch Inspection Efficiency The core advantage of Dual Station Screw Driven Vertical Axial Compression Valve Test Bench: left and right two workstations adopt fully independent clamping and pressure control systems, free to choose synchronous operation or separate operation, can test two different specifications of flanged valves at the same time, thoroughly solve the efficiency bottleneck of traditional single-station serial testing.

2.Precision Screw Clamping, Permanent Constant Compression Force Adopt high-precision trapezoidal screw axial pressing mechanism. After tightening and locking, the clamping force will not decay with time, stable pressing force throughout the whole pressure holding period, will not cause valve sealing surface dislocation or micro-deformation, test results are more stable and repeatable.

3.Dual Media Supported, Meet All Routine Factory Inspection Demands Equipped with complete water charging pipeline and air pressure pipeline system, support water medium for shell strength hydraulic test and air medium for air tightness leakage detection, one machine completes all conventional delivery inspection items of flanged valves.

4.Strictly Compliant with GB/T13927 National Valve Testing Standard All pressure control range, pressure holding time index, sealing detection mode are designed in accordance with GB/T13927 national standard, test data is authoritative and valid, which can be used for factory delivery inspection, third-party quality audit and export commodity inspection certification.

5.Compact Vertical Layout, Save Workshop Floor Space Integrated vertical frame overall molding design, all pressure control components, pressure gauge console and dual test stations are integrated on one base, small occupied area, convenient for workshop arrangement and production line docking, lower requirement for site space.

6.Stable Operation & Low Daily Maintenance Cost Screw mechanical clamping structure has fewer vulnerable parts compared with complex hydraulic servo system, low failure rate, no need for frequent replacement of hydraulic seals and oil maintenance, long service life and low later use cost for enterprises.

7.Wide Caliber Adaptation Range, Strong Versatility Standard model covers DN15 small miniature valves up to DN1000 medium large flanged valves, compatible with gate valves, globe valves, check valves, ball valves and other common flanged industrial valves, flexible switching for multi-variety production inspection.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Medium-sized Flanged Valve Manufacturers: Batch offline delivery pressure inspection of DN15~DN1000 industrial flanged valves.

2.Water Conservancy & Pipeline Supporting Enterprises: Strength and tightness inspection of municipal pipeline flanged valves.

3.Petrochemical Equipment Supporting Factories: Routine pressure testing of process pipeline flanged valves.

4.Valve Foreign Trade Export Enterprises: Pre-delivery sampling inspection to meet national standard export requirements.

5.Valve Maintenance Service Workshops: Re-inspection after maintenance and refurbishment of large flanged valves.

6.Vocational College Fluid Laboratory: Valve pressure testing principle teaching and student practical training.

7.Valve R&D Department: New product prototype sealing fatigue cycle performance test.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional valve testing engineers conduct one-on-one communication, confirm valve type, caliber range, daily inspection volume and testing demands; provide equipment site layout drawing and free valve sample pressure test verification service, issue complete customized scheme and formal quotation within 24 working hours.

In-sales Production & Export Packaging Delivery

Whole production progress is tracked by real-time video; full-load cyclic pressure test is implemented before delivery and all test records are archived. Export products adopt shockproof solid wooden case packaging, equipped with bilingual operation manual, hydraulic schematic diagram and complete customs clearance certification documents.

After-sales Global Warranty Service

Core components enjoy 24-month global warranty, non-artificial damaged spare parts are replaced free of charge during warranty period. We provide remote video debugging, whole-process operation guidance, coordinate overseas agents for on-site installation and maintenance; lifelong supply of conventional spare parts and free long-term pressure testing technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can two stations test valves of different sizes at the same time?

A1: Two workstations are completely independent in clamping and pressure control, parameters can be adjusted separately, supporting simultaneous testing of valves with different calibers and types.

Q2: Will the screw clamping force drop during long-time pressure holding?

A2: Adopt trapezoidal self-locking screw structure, after manual locking, the clamping force remains constant all the time without pressure attenuation, which ensures stable sealing detection effect.

Q3: What test media can this equipment use?

A3: Standard configuration supports water (strength test) and air (air tightness test), two mainstream media for valve factory inspection.

Q4: Can CE certification be handled for overseas export business?

A4: We can complete EU CE mechanical safety rectification, configure 415V export voltage and multilingual panel, issue official CE certificate for customs clearance and project acceptance.

Q5: Standard production delivery cycle?

A5: Standard configuration: 22 working days; customized upgraded version: 30 working days.

Purchase Guidance

Please inform your applicable valve types, caliber range, daily inspection demand and export requirements, we will provide detailed equipment scheme and preferential bulk quotation within 24 hours, supporting annual framework cooperation orders for valve manufacturers.
