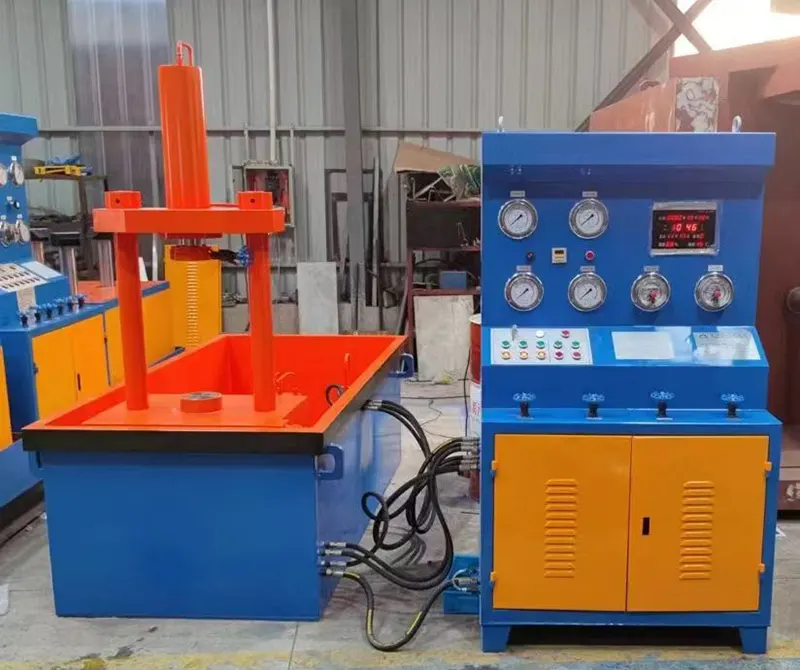

Integrated Full Vertical Hydraulic Axial Press Valve Test Bench

1.The Integrated Full Vertical Hydraulic Axial Press Valve Test Bench adopts four-column vertical hydraulic frame and independent split control cabinet structure, specially designed for hydrostatic and air tightness testing of small and medium-sized vertical valves, safety valves, check valves and straight-through industrial valves, widely used for factory outgoing inspection and third-party quality verification.

2.Four-column stable hydraulic structure: Vertical main hydraulic cylinder provides uniform downward axial pressing force, avoiding eccentric force damage to the valve body, ensuring stable pressure holding and authentic test data, fully complying with API 598, GB/T13927 international standards.

3.Independent multi-gauge control cabinet: Equipped with multiple high-precision pressure gauges, digital display and separate water/gas pressure regulating valves, realizing precise pressure regulation, long-time automatic pressure holding and real-time pressure monitoring.

4.Integrated water tank base design: Built-in water tank structure saves extra water pipeline layout, convenient for water circulation hydrostatic testing, reduces workshop pipeline clutter and supports continuous batch testing.

5.Simple manual + button operation: Intuitive centralized button control system, easy training for frontline operators, completing shell strength test and sealing tightness test efficiently.

This Integrated Full Vertical Hydraulic Axial Press Valve Test Bench has passed API, GB, ISO, CE certification, compatible with GOST, DIN standard valve inspection for overseas markets. The vertical hydraulic valve pressure test bench can be customized for different valve sizes, test pressures and control systems according to customer requirements. If you need reliable vertical valve hydrostatic testing equipment, please contact us to get full technical datasheet and exclusive factory quotation within 24 hours.

Product Core Highlights

Four-column heavy-duty frame: Thickened four-column vertical structure, strong rigidity, stable pressing force, no vibration during high-pressure testing, durable long-term use.

Split independent control cabinet: Separated main frame and control console, convenient for daily maintenance, reducing hydraulic oil pollution to the electrical panel, extending service life.

Full hydrostatic & pneumatic test function: Supports 1.5× nominal pressure shell hydrostatic test and low-pressure air tightness test, meets mandatory valve factory inspection requirements.

Safety buffer structure: Built-in hydraulic buffer function to reduce impact during pressing, effectively protecting the test valve and the main machine structure.

Export standard configuration: Can be equipped with English control panel, export wiring and international standard electrical components for global overseas market use.

Core Technical Advantages

The Integrated Full Vertical Hydraulic Axial Press Valve Test Bench adopts four-column vertical balanced pressing technology. Four vertical thick guide columns ensure the verticality of the main cylinder movement, avoid lateral force, ensure uniform stress on the valve end face, greatly reduce the risk of valve deformation and inaccurate test results.

Multi-channel independent pressure monitoring system: Multiple independent pressure gauges monitor clamping pressure, water test pressure and air test pressure separately, each circuit with independent pressure regulating valves, achieving precise pressure control and stable long-time pressure holding performance.

Integrated circulating water tank design: The base is an integrated water tank, directly providing test water, realizing water recycling, reducing water consumption and external pipeline construction, making the whole machine compact and easy to place.

Modular hydraulic and electrical system: Standard hydraulic components and international general electrical parts, easy maintenance and spare parts procurement, can be upgraded to intelligent data recording system for test report export.

Detailed Technical Parameters

Order Acceptance & Customization Capability

Monthly production capacity: 10-15 sets of standard vertical hydraulic valve test benches, semi-finished inventory for fast delivery.

Standard lead time: 21-30 days; customized models: 30-35 days based on design requirements.

Customization scope: Test pressure range, clamping stroke, valve fixture size, touch screen data system, English operation panel, export wiring configuration.

Order types: 1-set trial orders, regional distributor bulk orders, overseas EPC engineering project orders.

Documentation support: CE, ISO, API relevant certificates, inspection reports, export packing list and technical drawings for customs clearance.

After-sales Service Guarantee System

Pre-sales Service

● Free 1-on-1 technical consultation, confirm valve specifications, test pressure and layout requirements, provide layout drawings and quotation.

● Video factory inspection available, detailed technical specification PDF provided for project review.

In-sales Service

● Regular production progress photos/videos, full-load aging test before shipment, outgoing test video confirmation.

● Export fumigation-free wooden case packaging, shockproof & moisture-proof treatment for long sea/rail transport.

After-sales Service

● 24-month global warranty, free replacement of non-human damaged core hydraulic and electrical parts.

● Full English operation manual + video tutorials, online remote technical guidance for installation, commissioning and daily operation.

● Lifelong technical support, global fast spare parts delivery via international courier.

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A1: We are Wenzhou Yufeng Valve Machinery Manufacturer, a direct factory specializing in the R&D and production of industrial valve test benches.

Q2: What is your MOQ?

A2: Our MOQ is just 1 set. We highly welcome small trial orders as well as bulk procurement for large B2B projects.

Q3: What quality certifications do your valve test benches have?

A3: Quality is our core advantage. We ensure the Integrated Full Vertical Hydraulic Axial Press Valve Test Bench and all equipment has passed strict API, GB, ISO, and CE certifications, ensuring full compliance with global industrial standards.

Q4: Can your equipment test GOST (Russian standard) valves?

A4: Absolutely. Thanks to our extensive experience in Russia and Central Asia, our machines are fully compatible with GOST standards, as well as standard API, DIN, and GB valves.

Q5: Do you support OEM/ODM customized services?

A5: Yes, we provide tailored solutions. We can customize the maximum test pressure, clamping dimensions, and control systems based on your specific valve types, including the Integrated Full Vertical Hydraulic Axial Press Valve Test Bench.

Q6: What is the standard lead time for an order?

A6: For standard testing machines, the lead time is typically 21-30 days. Customized valve test benches may take 30-35 days, depending on the design complexity.

Q7: What payment terms do you usually accept?

A7: We usually accept T/T in advance, Visa, WestUnion with a 30% deposit and 70% balance before shipment. L/C at sight is also acceptable for larger corporate orders.

Q8: How do you pack the equipment for international shipping?

A8: We use robust, fumigation-free export standard wooden cases with inner moisture-proof wrapping. This ensures the equipment remains intact during long-distance rail or sea freight to your factory.

Q9: How do we install and operate the valve test bench upon receiving it?

A9: Our machines are delivered nearly fully assembled. We provide detailed operation manuals and step-by-step video tutorials. Our technical team is also available online to guide your operators.

Q10: What is the warranty policy for your products?

A10: We offer 24 months standard warranty starting from the delivery date. Even after the warranty expires, we provide lifelong technical support and supply spare parts freely.

Q11: How to get an accurate quotation quickly?

A11: Please share your specific valve details: valve type, size range (DN), maximum test pressure (PN), and connection ends. Our engineers will send a precise technical proposal within 24 hours.

Q12: Are spare parts easy to obtain after warranty?

A12: Sure! We use standard, internationally recognized hydraulic and electrical components for long service life. Located in "The Pumps and Valves Capital of China", we can deliver spare parts quickly via international express.

Purchase Guide

If you are looking for a reliable vertical hydraulic valve pressure test bench for valve factory production lines, inspection labs and overseas engineering projects, please send us your valve parameters and testing requirements. Our professional team will provide a customized technical solution and factory price quotation within 24 working hours.
