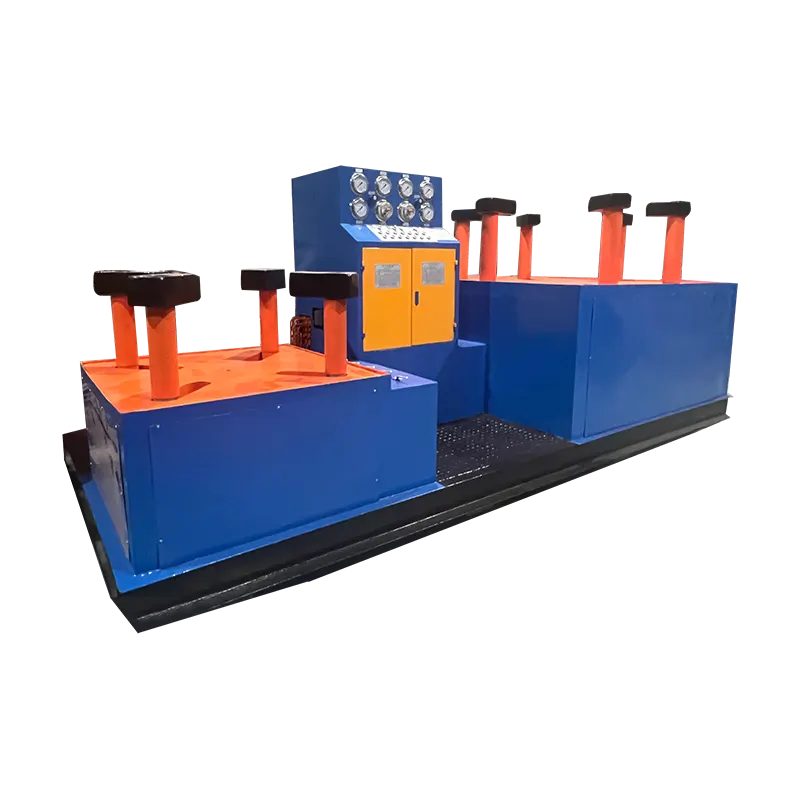

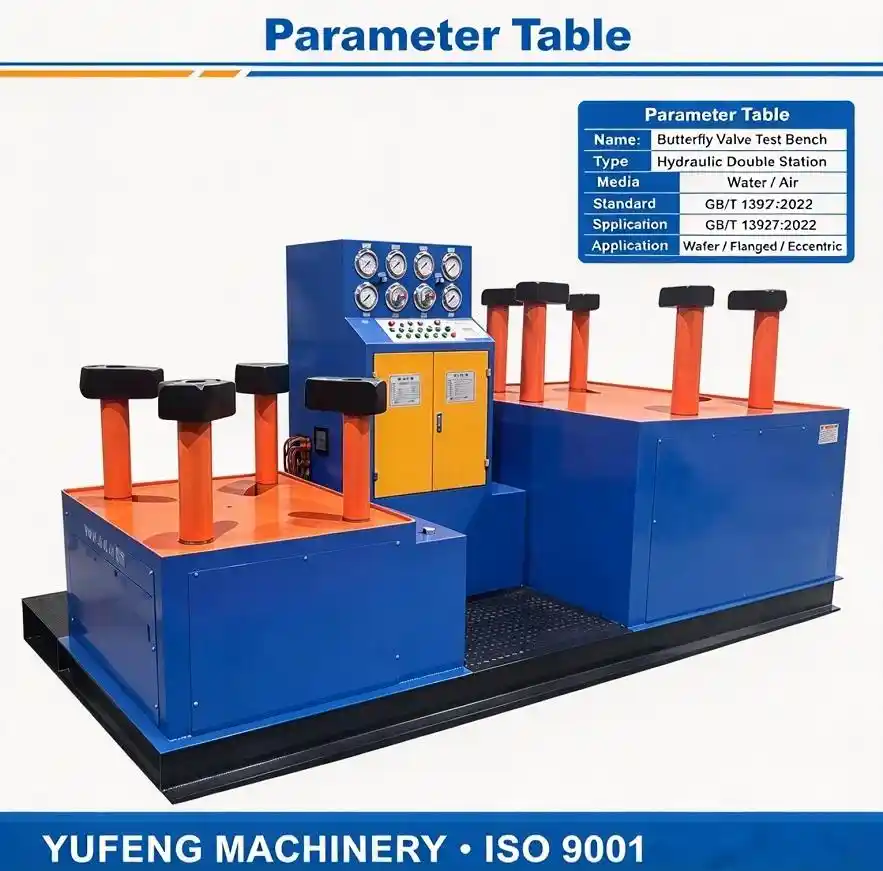

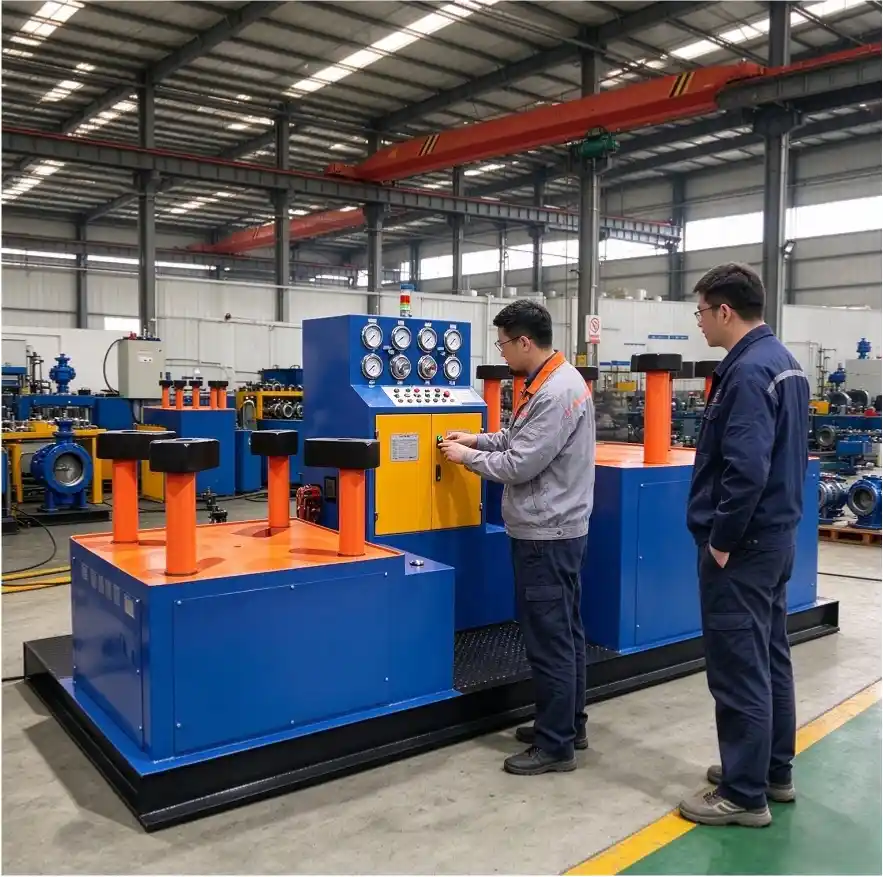

Dual Station Hydraulic Test Bench for Butterfly Valves

Interchangeable sealing tooling for different butterfly valve end face types with hydraulic pressure holding system.

Supports long term pressure holding for shell strength and bidirectional sealing performance tests.

Equipped with hydraulic self locking safety protection device.

Complies with GB/T 13927 2022 and API 598 test standards.

Supports both water and gas test media.

Machine dimensions 4.5 by 1.4 by 1.7 meters, weight 10 tons, power 13 kilowatts.

Ideal for butterfly valve production line automated inspection and valve manufacturer FAT.

Detailed Product Description Brief Points

1 Dual Station Hydraulic Test Bench for Butterfly Valves is suitable for wafer type, lug type, and flange type butterfly valves including concentric and eccentric types from DN250 to DN1200.

2 Dual station configuration allows two stations to work independently or simultaneously, significantly improving batch testing efficiency.

3 Interchangeable sealing tooling specifically designed for butterfly valve end faces ensures reliable sealing across different valve specifications.

4 Dual Station Hydraulic Test Bench for Butterfly Valves supports water for hydrostatic shell and seal tests, and low pressure air or nitrogen for pneumatic tightness tests.

5 Test items include 1.5 times PN shell strength test and 1.1 times PN high pressure water seal test per GB/T 13927 2022 requirements.

6 Hydraulic pressure holding system enables long term stable pressure maintenance for bidirectional sealing performance testing.

7 Hydraulic self locking safety protection device ensures operator and equipment safety during testing.

8 Universal design accommodates multiple butterfly valve types and specifications with easy tooling changeover.

9 Machine dimensions 4.5 by 1.4 by 1.7 meters, weight 10 tons, power 13 kilowatts.

10 Complies with GB/T 13927 2022 and API 598 international test standards.

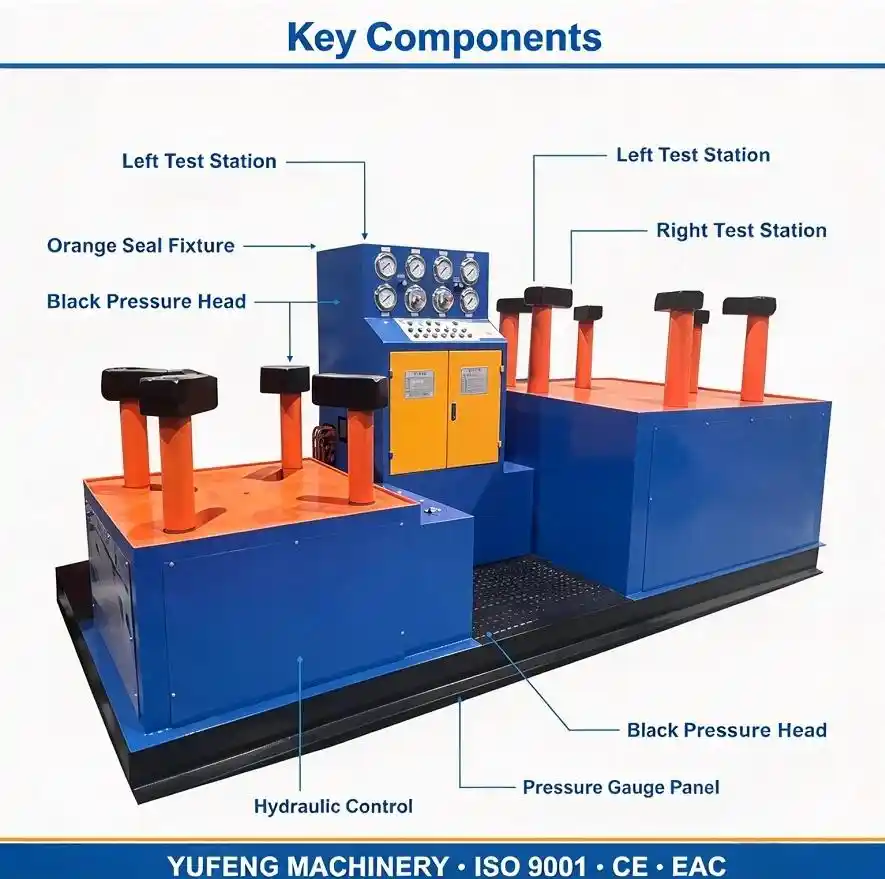

Product Features and Applications

Features

Dual station design for independent or simultaneous testing to maximize throughput

Interchangeable sealing tooling for various butterfly valve end face types

Hydraulic pressure holding system for long term stable pressure maintenance

Bidirectional sealing performance testing capability

Hydraulic self locking safety protection device

Supports both water and gas media for comprehensive testing

Universal design fits wafer, lug, and flange type butterfly valves

Meets GB/T 13927 2022 and API 598 standards

Compact footprint with dimensions 4.5 by 1.4 by 1.7 meters

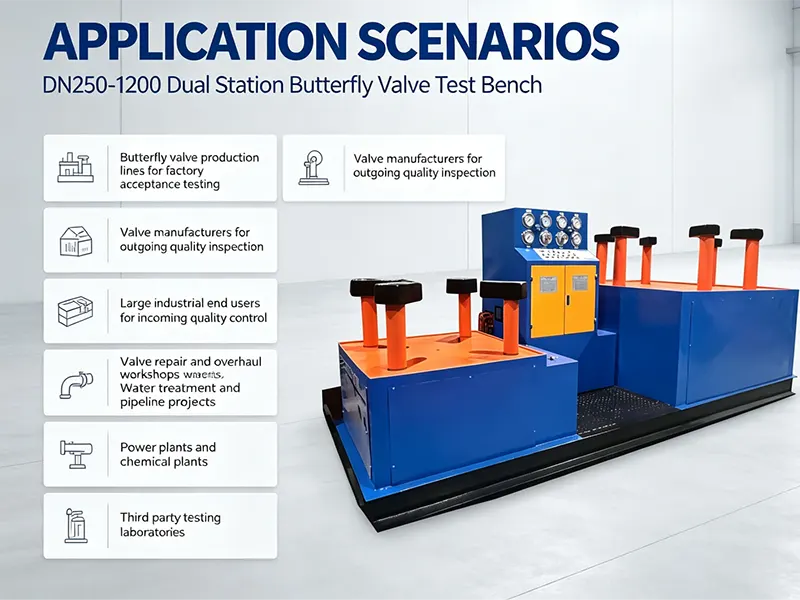

Applications

Butterfly valve production lines for factory acceptance testing

Valve manufacturers for outgoing quality inspection

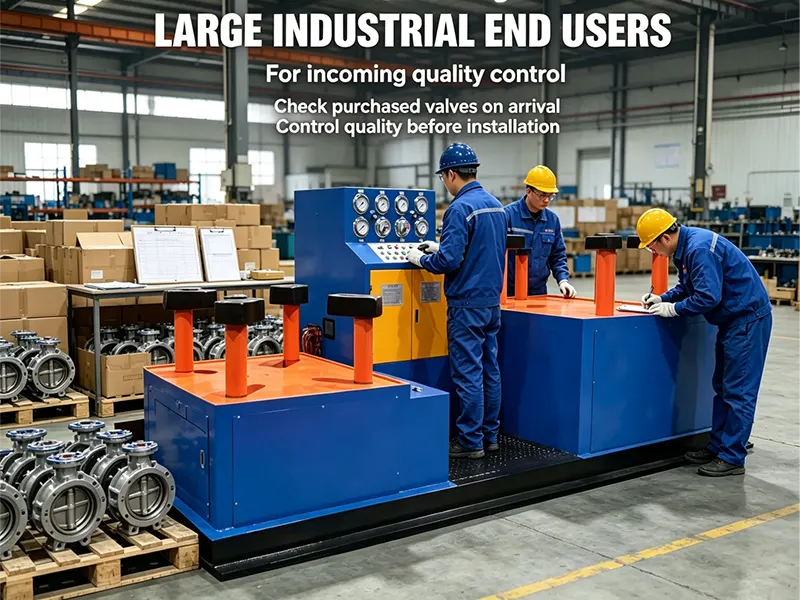

Large industrial end users for incoming quality control

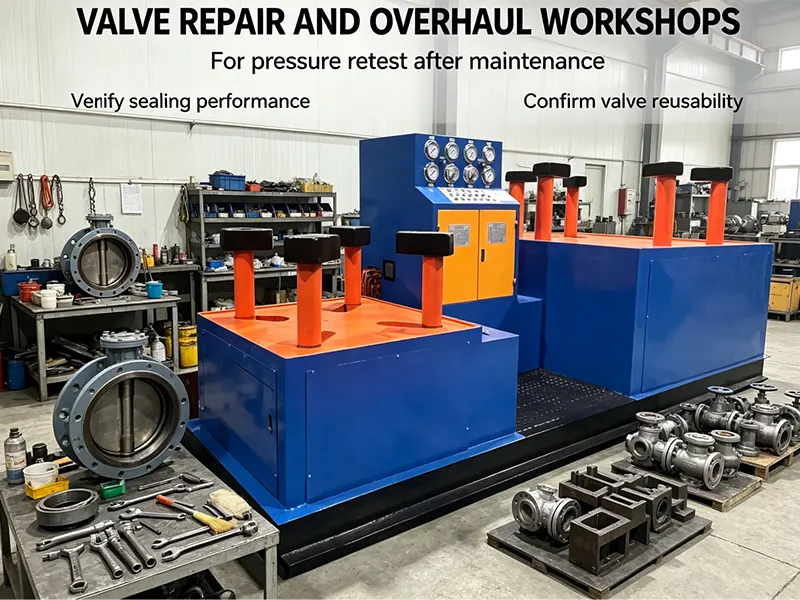

Valve repair and overhaul workshops

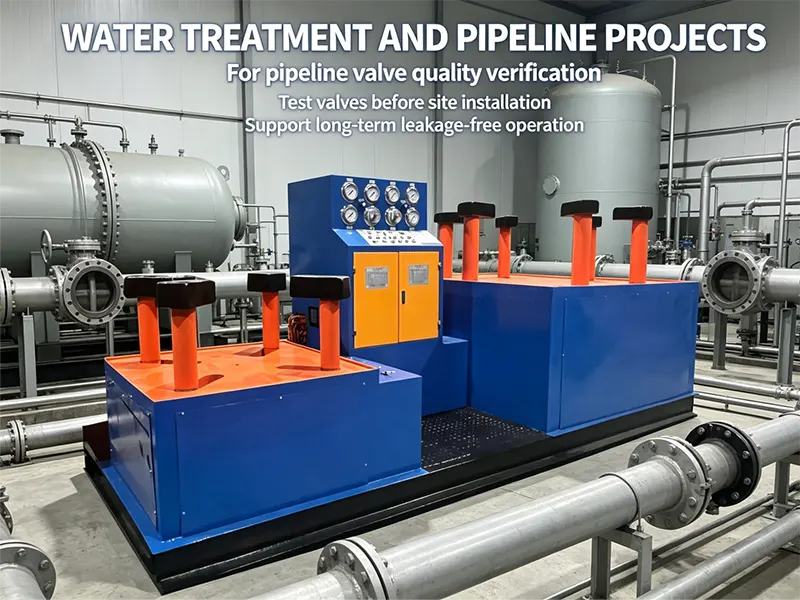

Water treatment and pipeline projects

Power plants and chemical plants

Third party testing laboratories

Technical Data Table

FAQ

1. What butterfly valve types can this test bench handle?

It handles wafer type, lug type, and flange type butterfly valves, including both concentric and eccentric designs, from DN250 to DN1200.

2. How does the dual station design improve efficiency?

The two stations can work independently or simultaneously. You can test two different valve sizes at the same time, or use one station while loading the other, eliminating downtime and greatly improving batch inspection throughput.

3. What sealing method does it use?

It uses interchangeable sealing tooling specifically designed for butterfly valve end faces. Different tooling sets can be quickly swapped to match various valve specifications and end face types.

4. What test items can it perform?

It performs shell strength test at 1.5 times nominal pressure and high pressure water seal test at 1.1 times nominal pressure per GB/T 13927 2022, plus bidirectional sealing performance testing with long term pressure holding.

5. What test media does it support?

It supports water for hydrostatic shell and seal tests, and low pressure air or nitrogen for pneumatic tightness tests.

6. What safety features are included?

The hydraulic self locking safety protection device prevents the clamping system from loosening while the valve cavity is pressurized, ensuring operator safety.

7. What are the machine dimensions and weight?

Dimensions are 4.5 by 1.4 by 1.7 meters, weight is 10 tons, and power consumption is 13 kilowatts.

8. What standards does this machine comply with?

It complies with GB/T 13927 2022 and API 598. It can also be configured for other international standards upon request.

9. Can it handle both concentric and eccentric butterfly valves?

Yes, the universal design and interchangeable sealing tooling accommodate both concentric and eccentric butterfly valves across the full DN250 to DN1200 range.

10. What information do you need for a quotation?

Please provide butterfly valve type (wafer/lug/flange), diameter in DN, pressure rating in PN or Class, end face type, and whether you need any optional features like PLC control or data acquisition.
