DN80-300 Horizontal Hydraulic Cylinder Axial Clamping Valve Test Bench

Equipped with intelligent digital pressure control system and multiple hydraulic self-locking protection devices.Supports both high-pressure water and low-pressure gas as test media.Covers test diameter range 3″ to 12″.Ensures uniform force distribution and stable pressure holding under high-pressure conditions.Compliant with GB/T 13927 and API 598 industry test standards.Meets stringent factory inspection requirements for high-pressure valves.

Detailed Product Description Brief Points

1.DN80-300 Horizontal Hydraulic Cylinder Axial Clamping Valve Test Bench is suitable for flanged, welded, and threaded end connections, including gate, globe, check, ball, plug, and other industrial valves.

2.Clamping method: main hydraulic cylinder directly drives the sealing plate against the valve end face, achieving axial end-face sealing with minimal external force on the valve body.

3.Sealing between valve and sealing plate: end-face sealing with O-ring or flat gasket, allowing direct visual inspection of leakage points.

4.Heavy-Duty Horizontal Hydraulic Cylinder Axial Clamping Valve Test Bench supports water for hydrostatic and high-pressure seal tests, and low-pressure gas (air or nitrogen) for pneumatic tightness tests.

5.Completed test items: 1.5×PN hydrostatic shell test, 1.1×PN high-pressure water seal test, and low-pressure pneumatic tightness test.

6.Test diameter range: DN80 to DN300 (3″ to 12″), with flexible stroke adjustment for different valve body lengths.

7.Hydraulic system: integrated design combining mechanical, hydraulic, electrical, and media circulation systems.

8.Reinforced bed structure: heavy-duty frame ensures stability and long-term accuracy under high-pressure conditions.

9.Intelligent digital pressure control: digital display and electric pressure-holding system for accurate and stable pressure maintenance.

10.Multiple hydraulic self-locking protection devices: pressure interlock prevents cylinder loosening when the test cavity is pressurised.

11.Core advantage: extra-large axial clamping force up to 130 tons, ideal for high-pressure heavy-duty valves inpetrochemical, power, and oil-gas applications.

Product Features and Applications

Features

Heavy-duty main cylinder and reinforced bed – extra-large clamping force.

Horizontal axial clamping – uniform force, no lateral distortion.

Intelligent digital pressure control – precise monitoring and control.

Multiple hydraulic self-locking protections – safe operation.

Flexible stroke adjustment for different valve lengths.

Supports water and gas media – versatile testing.

High-precision pressure gauges and electric holding system.

Optional data acquisition with curve display and report printing.

Ideal for long-term, repetitive, high-pressure valve inspection

Applications

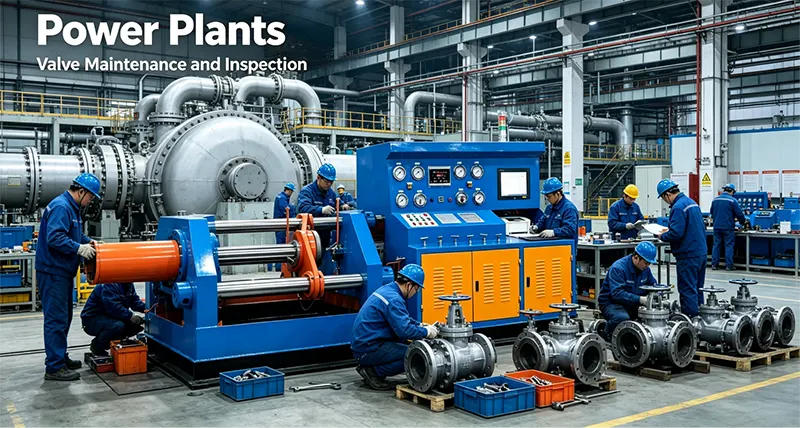

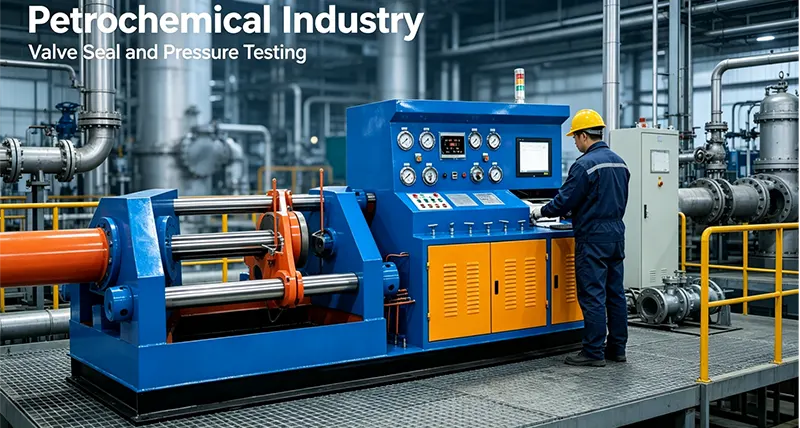

factory acceptance testing (FAT)，Petrochemical industry，Power plants – valve maintenance and inspection，Oil and gas – heavy-duty valve quality control.，MRO workshops，Mining and metallurgy，Large industrial. Third-party testing and repair agencies.

Technical Data Table

 FAQ Brief Points

1.Are you a trading company or manufacturer?

We are Wenzhou Yufeng Valve Machinery Manufacturer, a direct factory with ISO 9001 and CE certifications.

2.What is your MOQ?

Just 1 set. Small trial orders and bulk procurement are both welcome.

3.What test standards are complied with?

GB/T 13927, API 598, API 6D,etc.

4.What is the maximum clamping force?

Up to 360 tons, suitable for heavy‑duty high‑pressure valves.

5.What is the maximum test pressure?

For DN80–DN300 (3″–12″); for larger diameters, it varies .

6.What safety features are included?

Multiple hydraulic self‑locking devices with pressure interlock – the clamping cylinder cannot be released while the valve cavity is pressurised.

7.Do you support OEM/ODM customisation?

Yes. We can customise diameter range, stroke, pressure, clamping force, and control systems.

8.What is the standard lead time?

21–30 days for standard models; 30–35 days for customised versions.

9.What information do you need for a quotation?

Valve type, diameter, pressure rating , connection type, and production volume.
