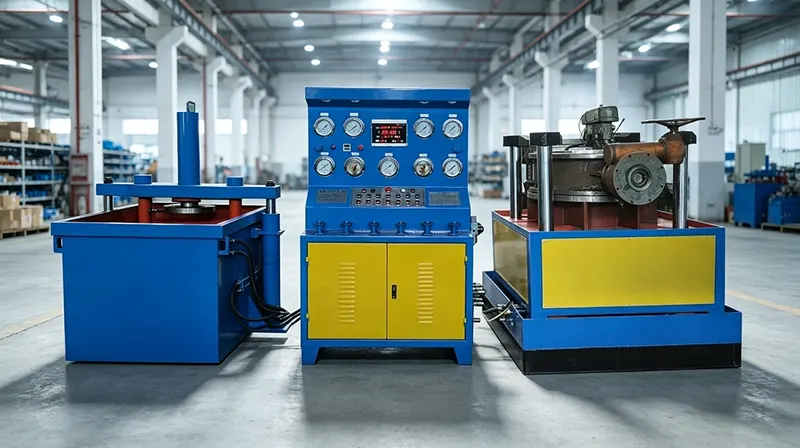

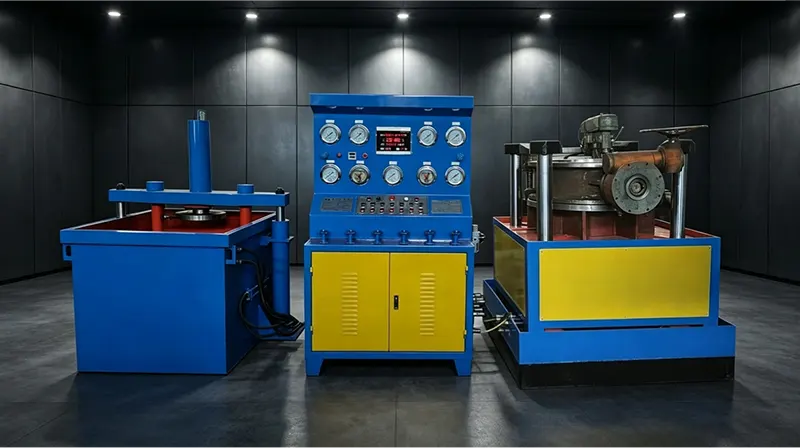

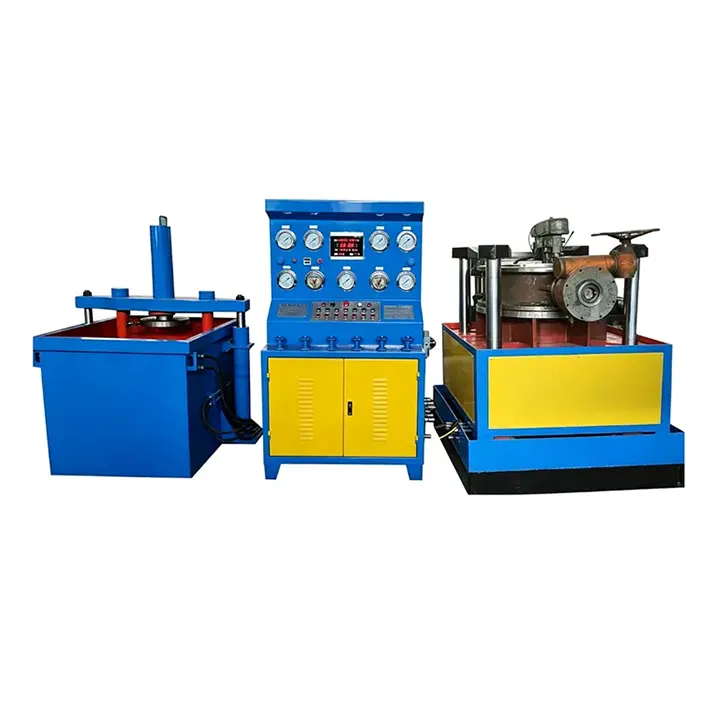

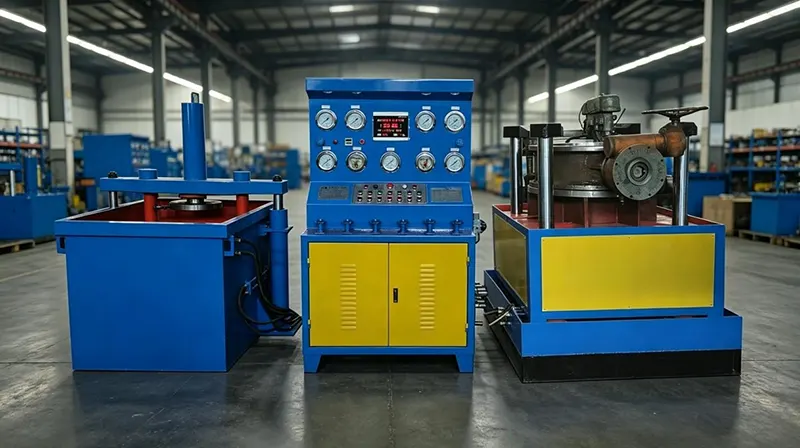

Dual Station Vertical Hydraulic Axial Press Valve Test Bench

The Dual Station Vertical Hydraulic Axial Press Valve Test Bench is a dedicated vertical valve pressure tester for vertical globe valve, angle valve, vertical stop valve, flange vertical industrial valve, equipped with dual independent vertical test stations to boost valve factory inspection efficiency.

Dual station independent operation: Left vertical compression station for vertical valve shell test, right 360° rotary worktable station for multi-angle flange valve seal test, two stations run separately or synchronously to double daily testing capacity and save workshop space.

Integrated digital control cabinet: Built-in digital display screen, 8 groups high precision pressure gauges and independent water air pressure regulating valves, real-time monitor clamping pressure and test pressure, stable long-time pressure holding for accurate valve test data.

Vertical four-column hydraulic compression structure: Thickened vertical guide columns with vertical hydraulic cylinder offer uniform vertical clamping force, no lateral extrusion damage on valve body, fully meet API 598, GB/T13927 valve testing standards.

Dual medium test support: Compatible clean water for hydrostatic strength test and low-pressure compressed air for air tightness test, one machine finishes full inspection procedures of vertical flange valves. This vertical valve test rig passes API, GB, ISO, CE certification and supports GOST Russian standard valve testing, widely used in valve manufacturing factories, third-party testing labs, petrochemical pipeline engineering and valve maintenance workshops worldwide. If you plan to source vertical hydraulic valve test bench or custom vertical flange valve pressure tester, contact us immediately to get full technical datasheet and exclusive factory wholesale quotation within 24 hours.

Detailed Product Specifications

The Dual Station Vertical Hydraulic Axial Press Valve Test Bench features Independent Double Station Split Design: Two separate working stations can work synchronously or independently, one machine realizes two groups of valve testing at the same time, greatly boosting factory inspection output and saving workshop space.

360° Rotatable Right Test Worktable: The right station adopts rotary platform structure, can rotate freely for angle valve, vertical valve and special flange valves, convenient for loading and unloading without repeated disassembly.

Integrated Digital Central Control System: Independent control cabinet equipped with digital display instrument, 8 groups of high-precision pressure gauges and separate pressure regulating valves for water and gas medium, real-time monitoring clamping pressure and test pressure, automatic pressure holding function available.

Vertical Four Column Stable Hydraulic Compression: Four vertical thickened guide columns cooperate with vertical hydraulic cylinder to provide uniform vertical compression force, avoid lateral extrusion damage to vertical valve body, guarantee true test data.

Full Customization Support: Maximum test pressure, clamping stroke, station size and touch screen automatic recording system can be customized to match your actual vertical valve specifications and production requirements.

Global Standard Compliance: Manufactured strictly in accordance with API, GB, ISO and CE standards, fully compatible with GOST and DIN standard vertical valves, meeting global market access requirements.

Dual Media Integrated Testing: Supports both hydrostatic and pneumatic testing, covering shell strength, high-pressure sealing and low-pressure air tightness; one machine fulfills the entire outgoing inspection workflow for vertical valves.

Detailed Technical Parameters

Application Scenarios

● Vertical valve manufacturers factory outgoing inspection

● Third-party vertical valve quality testing laboratories

● Petrochemical, pipeline and energy engineering supporting inspection equipment

● Russian & Central Asian GOST standard vertical valve production lines

● Industrial valve maintenance and repair workshops

Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A1: We are Wenzhou Yufeng Valve Machinery Manufacturer, a direct factory specializing in the R&D and production of industrial valve test benches including the Dual Station Vertical Hydraulic Axial Press Valve Test Bench.

Q2: What is your MOQ?

A2: Our MOQ is just 1 set. We highly welcome small trial orders as well as bulk procurement for large B2B projects.

Q3: What quality certifications do your valve test benches have?

A3: Quality is our core advantage. Our Dual Station Vertical Hydraulic Axial Press Valve Test Bench and other equipment has passed strict API, GB, ISO, and CE certifications, ensuring full compliance with global industrial standards.

Q4: Can your equipment test GOST (Russian standard) valves?

A4: Absolutely. Thanks to our extensive experience in Russia and Central Asia, our machines are fully compatible with GOST standards, as well as standard API, DIN, and GB valves.

Q5: Do you support OEM/ODM customized services?

A5: Yes, we provide tailored solutions. We can customize the maximum test pressure, clamping dimensions, and control systems based on your specific valve types.

Q6: What is the standard lead time for an order?

A6: For standard testing machines, the lead time is typically 21-30 days. Customized valve test benches may take 30-35 days, depending on the design complexity.

Q7: What payment terms do you usually accept?

A7: We usually accept T/T in advance, Visa, WestUnion with a 30% deposit and 70% balance before shipment. L/C at sight is also acceptable for larger corporate orders.

Q8: How do you pack the equipment for international shipping?

A8: We use robust, fumigation-free export standard wooden cases with inner moisture-proof wrapping. This ensures the equipment remains intact during long-distance rail or sea freight to your factory.

Q9: How do we install and operate the valve test bench upon receiving it?

A9: Our machines are delivered nearly fully assembled. We provide detailed operation manuals and step-by-step video tutorials. Our technical team is also available online to guide your operators.

Q10: What is the warranty policy for your products?

A10: We offer 24 months standard warranty starting from the delivery date. Even after the warranty expires, we provide lifelong technical support and supply spare parts freely.

Q11: How to get an accurate quotation quickly?

A11: Please share your specific valve details: valve type, size range (DN), maximum test pressure (PN), and connection ends. Our engineers will send a precise technical proposal within 24 hours.

Q12: Are spare parts easy to obtain after warranty?

A12: Sure! We use standard, internationally recognized hydraulic and electrical components for long service life. Located in "The Pumps and Valves Capital of China", we can deliver spare parts quickly via international express.

Purchase Guide

We provide one-stop service from technical solution design, manufacturing to after-sales support. If you have demands for vertical valve test equipment, please send us your valve parameters and testing requirements, and we will reply with a professional solution and competitive quotation within 24 working hours.
