Horizontal Tiltable Jaw Clamping Valve Pressure Test Bench

This Horizontal Tiltable Jaw Clamping Valve Pressure Test Bench adopts hydraulic jaw encircling flange clamping mode. The clamping force acts only on the valve flange without applying extra external stress to the valve body internal structure, which completely complies with the inspection requirements specified in GB/T13927-2022 and API 598 standards. It can carry out shell strength test, seat tightness test and bonnet upper sealing test for all kinds of flange-connected valves, and support air tightness leakage detection. The right working platform can be hydraulically overturned by 90°, and a double-end reversible structure is optional; the tilting design facilitates medium injection, exhaust and residual liquid drainage inside inclined valves.

Test media can be selected by customers: clean water, compressed air or diesel oil. The machine is standard equipped with low-pressure water pump, high-pressure water pump and medium circulation water tank to realize cyclic reuse of test medium and save operating costs. Multiple optional configurations are available: intelligent test data management system, electric silent hydraulic station, hydraulic air cooling system, automatic hydraulic pressure relief system, safety protective sliding door, etc. The applicable valve caliber and maximum test pressure can be customized according to user actual demands.

With a maximum bearing capacity of 20 tons, it is perfectly suitable for DN50~DN2000 large flange valve batch delivery inspection in petrochemical, power, water conservancy and pipeline industries. We can provide CE certification transformation and multi-language operation system for overseas customers.

Seven Core Differentiated Advantages

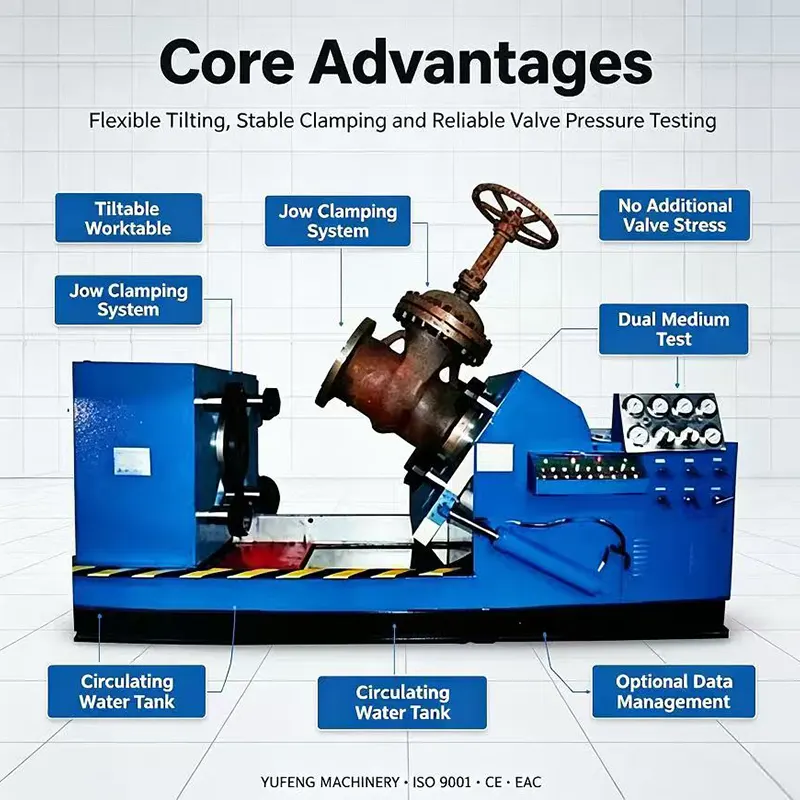

1.Unique 90° Hydraulic Tilting Worktable Original Design The biggest differentiated advantage of Horizontal Tiltable Jaw Clamping Valve Pressure Test Bench: the right-side station can be tilted arbitrarily up to 90°, adapting to Y-type valves, angle valves and inclined bonnet valves that cannot be placed horizontally normally, convenient for filling medium, exhausting air and draining residual liquid inside the valve cavity, thoroughly eliminating air bubble interference which leads to inaccurate leakage detection.

2.Jaw Encircling Flange Clamping, No Damage to Valve Body Hydraulic jaws wrap the outer circle of the valve flange for stress application, the valve body is free of extrusion and bending moment; different from axial end jacking clamping, it will not deform the valve sealing pair, ensuring the authenticity of tightness test data.

3.Three Optional Test Media, Wide Application Range Support water, air, diesel three test media switching, can meet the testing requirements of industrial valves under different working conditions; the built-in circulation water tank realizes closed-loop water recycling, greatly reducing water consumption and workshop sewage discharge.

4.Double Pump Combined Pressure Boosting System (Low Pressure + High Pressure) Matched with low-pressure filling pump and high-pressure pressurizing pump: low-pressure pump quickly fills the valve cavity and discharges air; high-pressure pump performs step-by-step pressure boosting and long-time constant pressure holding, pressure control precision ≤±1%, fully meeting API 598 multi-stage pressure holding standards.

5.Super Heavy-load Integrated Welded Base Frame The whole bed frame is welded by extra thick steel plates, maximum bearing load reaches 20 tons, suitable for DN2000 ultra-large heavy flange valves; stress relief annealing treatment is adopted to prevent frame deformation under long-term heavy load.

6.Modular Optional Intelligent Upgrade Packages Customers can freely select functional modules: data acquisition & report export system, silent hydraulic unit, hydraulic cooling system, automatic pressure relief, safety protection door, etc., to configure the equipment according to production budget and inspection needs.

7.Multi-layer Safety Interlock Protection Mechanism Equipped with hydraulic clamping overpressure protection, test pressure over-limit automatic relief, tilting platform anti-collision limit, emergency stop power-off four-fold safety interlock device, effectively avoiding equipment damage and safety accidents during heavy valve testing, conforming to EU CE industrial machinery safety norms.

Complete Technical Parameter Table

Seven Target Application Scenarios

1.Large Heavy Flange Valve Manufacturing Factories: Batch offline inspection of DN50-DN2000 gate valves, globe valves, Y-type valves, angle valves.

2.Petrochemical & Refinery Pipeline Equipment Plants: Pressure inspection of high-pressure process pipeline large flange valves.

3.Large Thermal Power & Nuclear Power Auxiliary Workshops: Periodic tightness test of main pipeline ultra-large bore power valves.

4.National Large-scale Water Diversion & Flood Control Water Conservancy Projects: Acceptance testing of pipeline large-diameter water conservancy valves.

5.Professional Heavy-duty Valve Repair & Overhaul Stations: Post-refurbishment performance re-inspection for recycled old large industrial valves.

6.Overseas Large EPC Energy & Water Conservancy Projects: Custom heavy valve testing equipment with complete CE export certification documents.

7.Valve Structure R&D Laboratories: Fatigue cycle pressure test and medium adaptability test for new inclined valve prototypes.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales Customized Technical Support

Professional heavy valve testing engineers conduct one-on-one technical communication, confirm valve type, caliber range, maximum test pressure, selected medium and optional functional modules; provide equipment foundation layout drawing and free valve sample testing service, issue targeted customized scheme and formal quotation within 24 working hours.

In-sales Production & Export Shipment Service

Whole production progress tracked by real-time video; full-load continuous pressure cycle test completed before delivery with original test records archived. Export version adopts extra thick solid wood frame + steel belt shockproof & moisture-proof reinforced packaging; hydraulic schematic, electrical wiring diagram, multilingual operation manual and full set of customs clearance certification documents are delivered together with the machine.

After-sales Global Quality Assurance Service

Hydraulic clamping cylinders, high-pressure booster pumps, PLC controllers and pressure sensors enjoy 24-month global warranty; free replacement of non-artificial damaged spare parts within warranty period. We provide remote online parameter debugging, full operation video tutorials, coordinate local overseas agents for on-site installation, commissioning and maintenance; lifelong supply of general hydraulic spare parts and free long-term valve pressure testing technical consultation.

FAQ & Official Purchase Guidance

Frequently Asked Questions

Q1: Can this bench test inclined Y-type valves and angle valves normally?

A1: The worktable can be tilted 090° arbitrarily, the valve can be placed in an inclined state consistent with actual working condition, convenient for exhaust and liquid drainage, completely solving the testing difficulty of special inclined valves.

Q2: Will jaw clamping squeeze and damage the valve flange?

A2: The clamping force is evenly distributed on the flange outer circumference, the clamping tonnage can be adjusted steplessly according to valve specification, no local stress concentration, effectively protecting the valve flange and sealing structure.

Q3: Can I add intelligent data recording and automatic report export function later?

A3: The control system reserves digital expansion interface, all optional modules can be retrofitted after equipment purchase.

Q4: Is CE certification available for overseas export trade?

A4: We can complete full CE heavy machinery safety transformation, configure multi-language operation panel and 415V export voltage, provide complete CE certification documents for customs clearance and overseas project acceptance audit.

Q5: What is the standard production delivery cycle?

A5: Standard configuration delivery cycle: 40 working days; customized ultra-large caliber, ultra-high pressure and full intelligent version delivery cycle: 4550 working days.

Purchase Guidance

Please send detailed information including applicable valve types, caliber range, maximum test pressure, selected test medium and optional functional requirements to our engineering team. We will formulate a complete customized heavy-duty tilting jaw valve pressure testing solution and preferential bulk procurement quotation within 24 hours, supporting annual framework cooperation orders for valve manufacturers and global large-scale energy & water conservancy pipeline EPC supporting projects.
