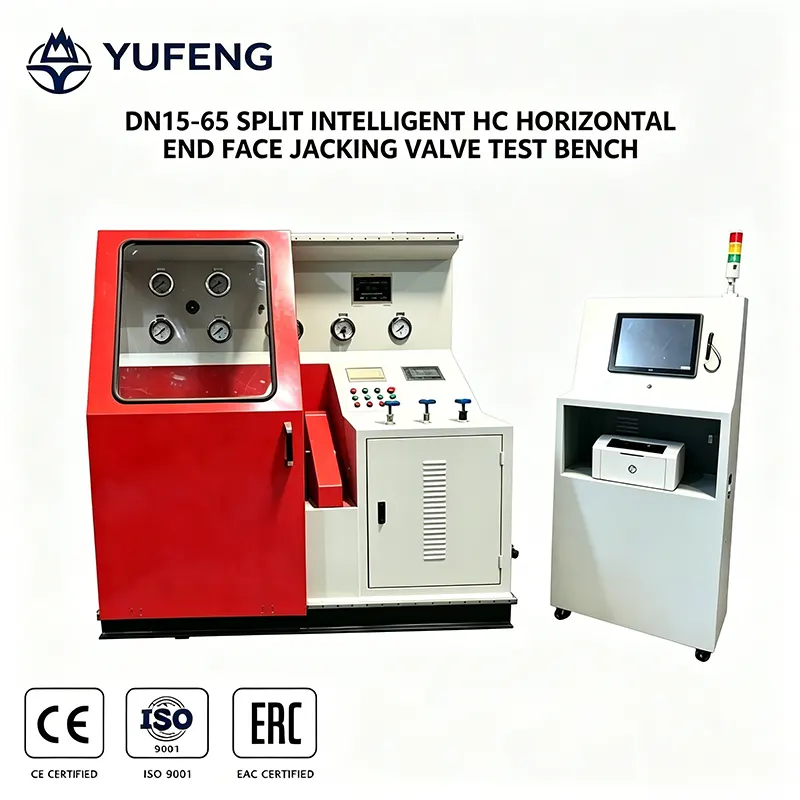

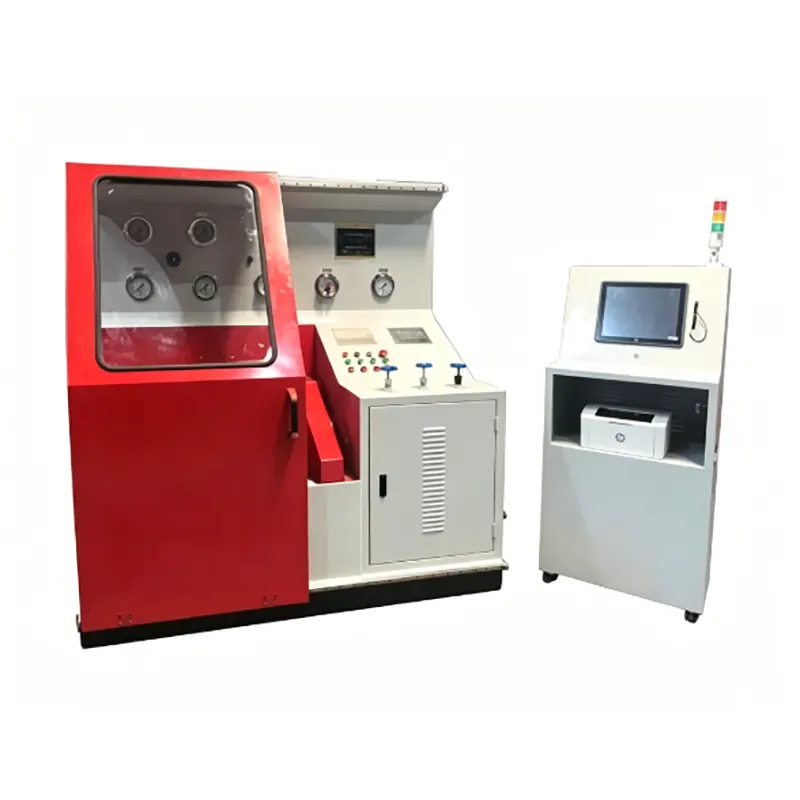

Horizontal Top Press Intelligent Valve Test Bench

Equipped with an industrial touch screen as a human-machine interactive interface, this Horizontal Top Press Intelligent Valve Test Bench features intuitive operation logic and a friendly man-machine interaction experience. The system adopts graphic & text integrated display mode, synchronously displaying valve type, specification model, executed test standard, test items, test rated pressure, preset dwell time standard value, inspector ID, test bench serial number, test date, and real-time running time data. Meanwhile, it dynamically draws a pressure-time coordinate curve in real time, automatically stores all full-process test data, and supports one-click generation & printing of formal inspection reports.

This intelligent top pressing test bench can provide authentic, traceable, and valid test documents for factory delivery and export certification, with all test data archived permanently for inquiry. It serves as reliable management hardware for valve manufacturers to standardize, monitor, and supervise internal valve inspection procedures, effectively realizing digital whole-process quality control of valve pressure testing workshops. The whole machine complies with GB/T13927-2022, GB/T26480-2011, API 598 international common valve testing standards, widely applied to industrial valve production, petrochemical, gas, water conservancy, and power industry inspection work.

Industry Universal Pain Points & Targeted Optimization Solutions

3.1 Main Pain Points of Traditional Valve Pressure Testing Workshops

1.Conventional test equipment without programmable automatic control: Pressure and time parameters rely on manual adjustment and reading, data deviation is large, no unified data recording standard, test results lack authenticity and persuasiveness for foreign customers.

2.Mechanical button operation panel is complicated: New employees need a long training cycle, misoperation easily occurs, pressure holding out of standard often leads to unqualified detection batches.

3.No curve recording & report printing function: Test records can only be manually written on paper, easy to be lost and altered; cannot issue formal printed reports required by overseas buyers for customs clearance and third-party audit.

4.Test data cannot be archived and retrieved: Enterprises cannot trace historical inspection records, difficult to realize production quality retrospective management, not in line with modern factory lean production requirements.

5.Ordinary test benches lack whole-process parameter visualization: staff cannot observe real-time pressure fluctuation changes, and it is difficult to judge tiny valve leakage conditions accurately.

3.2 Targeted Solving Advantages of Horizontal Top Press Intelligent Valve Test Bench

1.PLC full-program automatic control: The core PLC controller uniformly governs all test links, automatically pressurizes, stabilizes pressure, times, and relieves pressure according to preset standards, eliminating manual adjustment errors fundamentally.

2.Large touch screen visual operation: Graphical human-computer interface, all parameters visible at a glance, simple operation with a short learning period for workers, greatly reducing misoperation probability.

3.Dynamic pressure curve real-time plotting: The system draws a continuous pressure-time curve during the whole pressure holding process, intuitive to check pressure drop and tiny leakage inside valves, detection accuracy greatly improved.

4.Automatic data storage + printed test report output: All test information is permanently stored in the system database, support conditional query of historical records; printed reports carry complete test parameters and curve charts, recognized by domestic and international certification institutions.

5.Whole-process digital workshop management support: Complete inspection data traceability helps enterprises realize standardized supervision of testing processes, convenient for internal quality management and external customer audit verification.

Seven Core Competitive Advantages

1.Industrial PLC Programmable Core Control, Stable & Precise Parameter Collection The Horizontal Top Press Intelligent Valve Test Bench is equipped with a brand industrial PLC controller, independently collects and processes pressure and time signals throughout the test process, anti-interference ability is strong, suitable for long-term continuous operation in complex factory environments, parameter acquisition error is controlled within an ultra-low range.

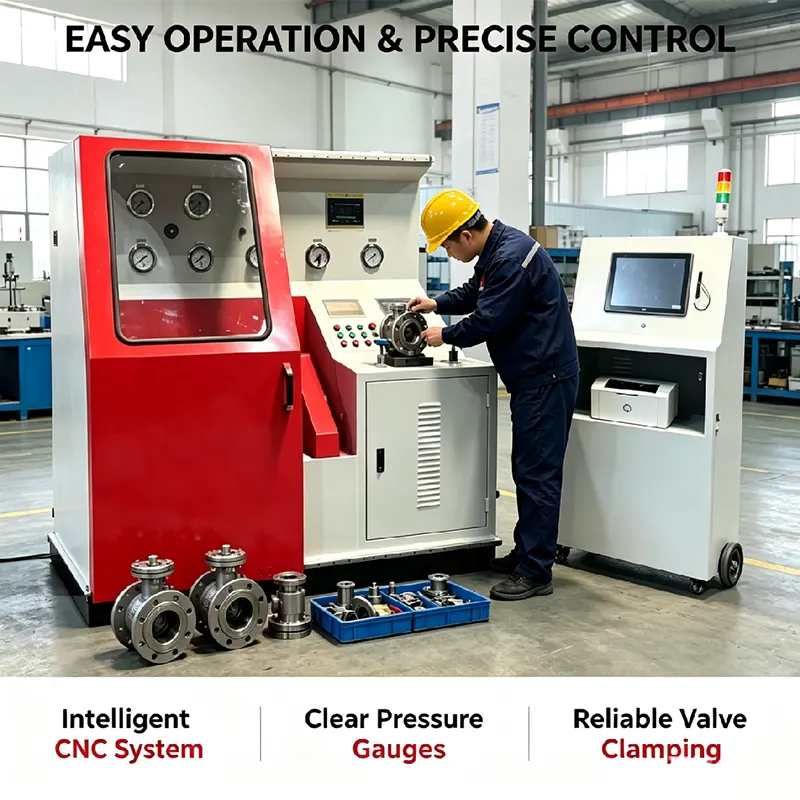

2.Touch Screen Human-Machine Interface, Easy & Intuitive Operation Adopts a large-size industrial touch screen as the operation terminal, abandoning cumbersome physical button combinations; all parameter setting, standard switching, and equipment debugging are completed on the touch screen; the interface layout is reasonable, friendly for operators of all proficiency levels.

3.Dynamic Pressure-Time Curve Real-Time Display, Accurate Leakage Judgment Graphic-text synchronous display system continuously generates pressure coordinate curve in real time during pressure maintenance stage; pressure drop trend can be clearly observed, effectively identify micro-leakage defects that are difficult to find by naked eyes, greatly upgrade valve inspection precision.

4.Automatic Data Archiving & Historical Record Inquiry Function: Every set of valve test data, including model, standard, pressure, time, inspector information, is automatically saved to the system, supporting retrieval by date, batch, valve model at any time, realizing full-cycle quality traceability of finished valves.

5.Standard Test Report One-Click Printing, Meet Export Certification Needs Built-in high-performance printing module, the system automatically generates standardized test reports with curve diagrams after each test completion; printed documents are formal and normative, applicable to domestic factory inspection and overseas export customs clearance, third-party quality audit.

6.Horizontal Top Press Clamping Structure, Wide Applicable Valve Range Horizontal top pressing clamping design, stable clamping force, uniform stress on valve body; compatible with various types of straight-through industrial valves, adaptable to multi-specification batch inspection needs of valve manufacturers.

7.Complete Safety Protection System & Long Service Life Equipped with overpressure automatic unloading, overload protection, emergency stop interlock safety functions; hydraulic components, electrical accessories adopt well-known industrial brands, low failure rate, core components enjoy long-term warranty, daily maintenance is convenient and simple.

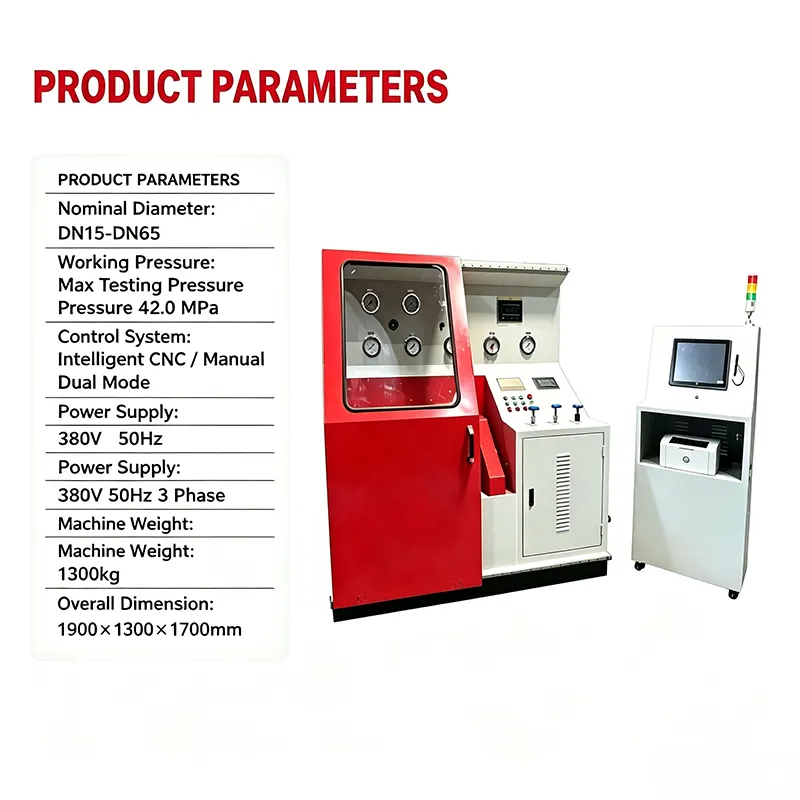

Detailed Technical Parameter Table

Seven Main Application Scenarios

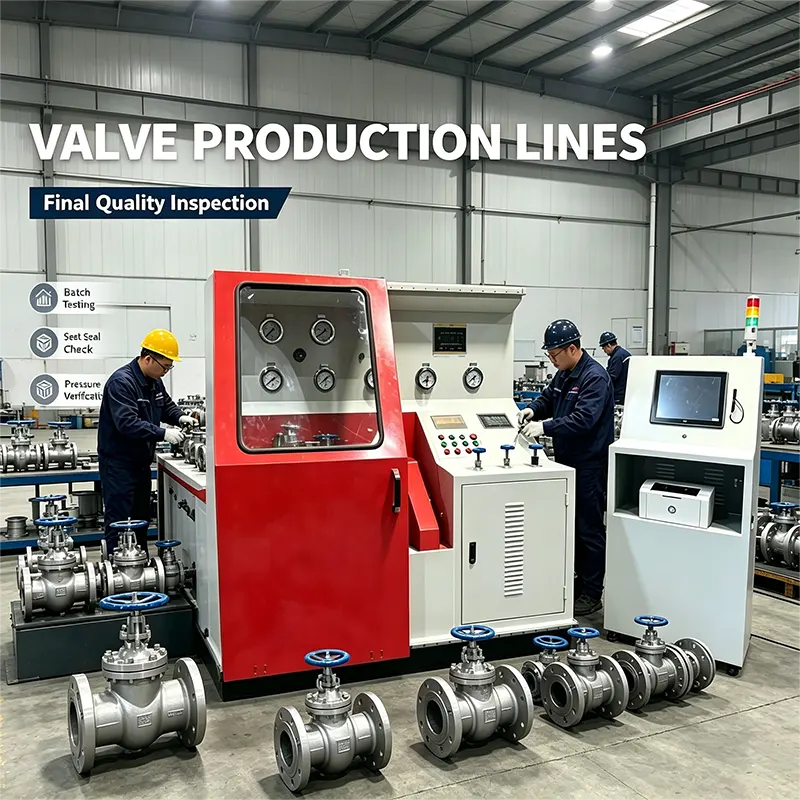

1.Medium & Large-Scale Valve Manufacturing Factory: Batch automatic sealing and strength pressure inspection of various industrial valves, realize digital workshop transformation.

2.Export-Oriented Valve Enterprise: Conduct testing in accordance with API American standards, print formal test reports for overseas order delivery and customs clearance.

3.Petrochemical & Natural Gas Pipeline Enterprise: Regular safety pressure inspection and performance verification of pipeline supporting valves.

4.Municipal Water Supply & Drainage, Water Conservancy Project Unit: Inspection of engineering supporting pipe valves before installation and delivery.

5.Thermal Power Plant, Central Heating Station: Maintenance, overhaul, and pressure re-test of boiler auxiliary valves.

6.Third-Party Industrial Equipment Quality Inspection Institute: Standardized sampling testing and report issuance for valve quality certification.

7.Valve R&D Laboratory: New product sealing performance development test, pressure resistance parameter verification, and data recording.

Pre-sales, In-sales & After-sales Global Integrated Service System

Pre-sales One-on-one Customized Technical Scheme

Professional hydraulic and electrical engineers communicate your valve specifications, commonly used test pressure grades, target export standards one by one; freely adjust system internal test programs according to your demands, provide equipment layout drawings, detailed technical parameters, and official quotations within 24 working hours.

In-sales Production Debugging & Export Packing Delivery

The whole production process supports real-time video inspection; before delivery, complete continuous running debugging, pressure calibration, curve drawing, and report printing test repeatedly to ensure stable overall machine performance. Export products adopt shockproof reinforced wooden case packaging, equipped with bilingual operation manual, PLC program instruction manual, CE, ISO9001 certification documents, and complete customs clearance materials.

Global After-sales Warranty & Technical Support

Core control parts such as PLC controller, touch screen, pressure sensors enjoy 24-month free global warranty; non-artificial damaged spare parts are replaced free of charge during the warranty period. We provide year-round remote video fault elimination, program modification, parameter debugging guidance; can arrange overseas agent on-site installation training as required. Lifelong preferential supply of printing consumables, sealing rings, hydraulic oil, and wearing parts, permanent free consultation on valve pressure testing technology and international standard testing schemes.

FAQ Common Questions & Purchase Guidance

Frequently Asked Questions

Q1: What core control system does this test bench adopt?

A1: It takes a PLC programmable controller as the main control core, matched with a touch screen human-machine interface, to realize fully automatic control of the whole testing process.

Q2: Can the equipment draw pressure curves and print formal test reports?

A2: Yes, the system dynamically draws a pressure-time curve in real time during testing, automatically stores all data, and supports one-click printing of complete test reports with curves and parameters.

Q3: Are the test data stored permanently and can be queried later?

A3: All test records are archived in the system database permanently; you can retrieve historical test data by time, valve batch, and inspector information at any time to realize quality traceability.

Q4: Does it support switching between Chinese national standard and API American standard testing modes?

A4: The system is pre-installed with multiple sets of international common testing standards, which can be switched with one key on the touch screen, fully meeting domestic inspection and foreign export dual demands.

Q5: Standard delivery cycle for conventional configuration?

A5: Standard equipment delivery cycle: 25 working days; customized upgraded version with enhanced pressure: 35 working days.

Purchase Guidance

You only need to inform the valve caliber range, the maximum test pressure you need to detect, and the main export countries. We will formulate the most suitable equipment configuration plan and bulk procurement preferential price for you within one day, and support long-term framework cooperation orders for large valve factories.
